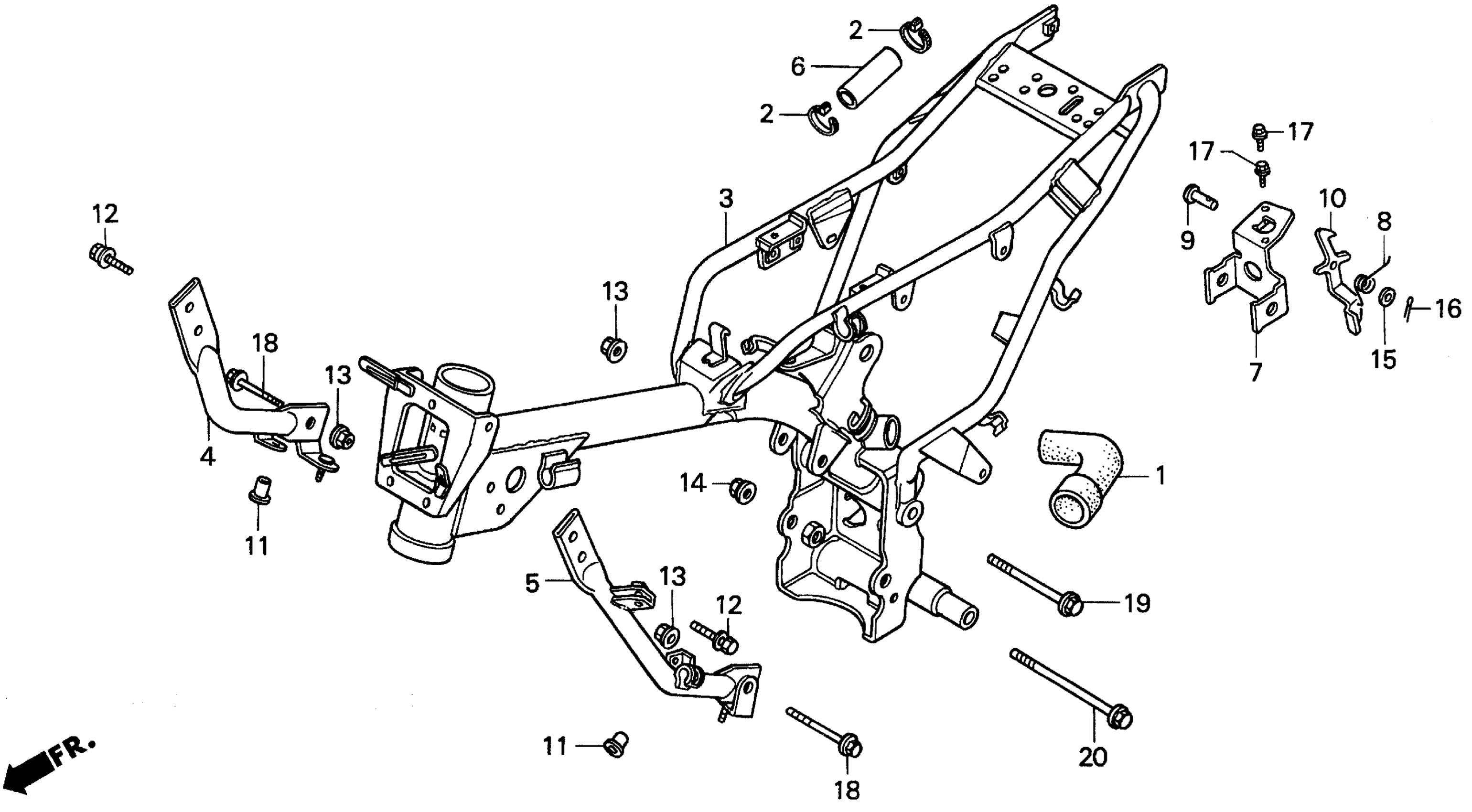

Honda EZ90A (92) CUB, JPN, VIN# JH2HE060-NK300001 TO JH2HE060-NK300616 FRAME Diagram

HOSE, COOLING

19410-GZ4-670

Unavailable

BAND

35701-MG9-950

$1.89

FRAME This part replaces 50100-GZ4-670ZA.

50100-GZ4-790

Unavailable

FRAME

50100-GZ4-790

Unavailable

TUBE, R. DOWN

50105-GZ4-670

Unavailable

TUBE, L. DOWN

50106-GZ4-670

Unavailable

TUBE, HEAT PROTECTOR

50171-GZ4-670

Unavailable

STAY, IGNITION CONTROL MODULE

50341-GZ4-670

Unavailable

SPRING, SEAT LOCK

77107-958-000

$4.30

PIN, SEAT HOOK

77156-GZ4-670

$5.26

OPENER, SEAT

77160-GZ4-670

$12.41

NUT, WELL (5MM)

90156-GZ4-670

$4.87

BOLT-WASHER (8X20) This part replaces 93404-08020-00.

93404-08020-08

$1.83

BOLT-WASHER (8X20)

93404-08020-08

$1.83

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X40)

95801-08040-00

$1.49

BOLT, FLANGE (8X65)

95801-08065-00

$2.75

BOLT, FLANGE (10X130)

95801-10130-00

$4.49
