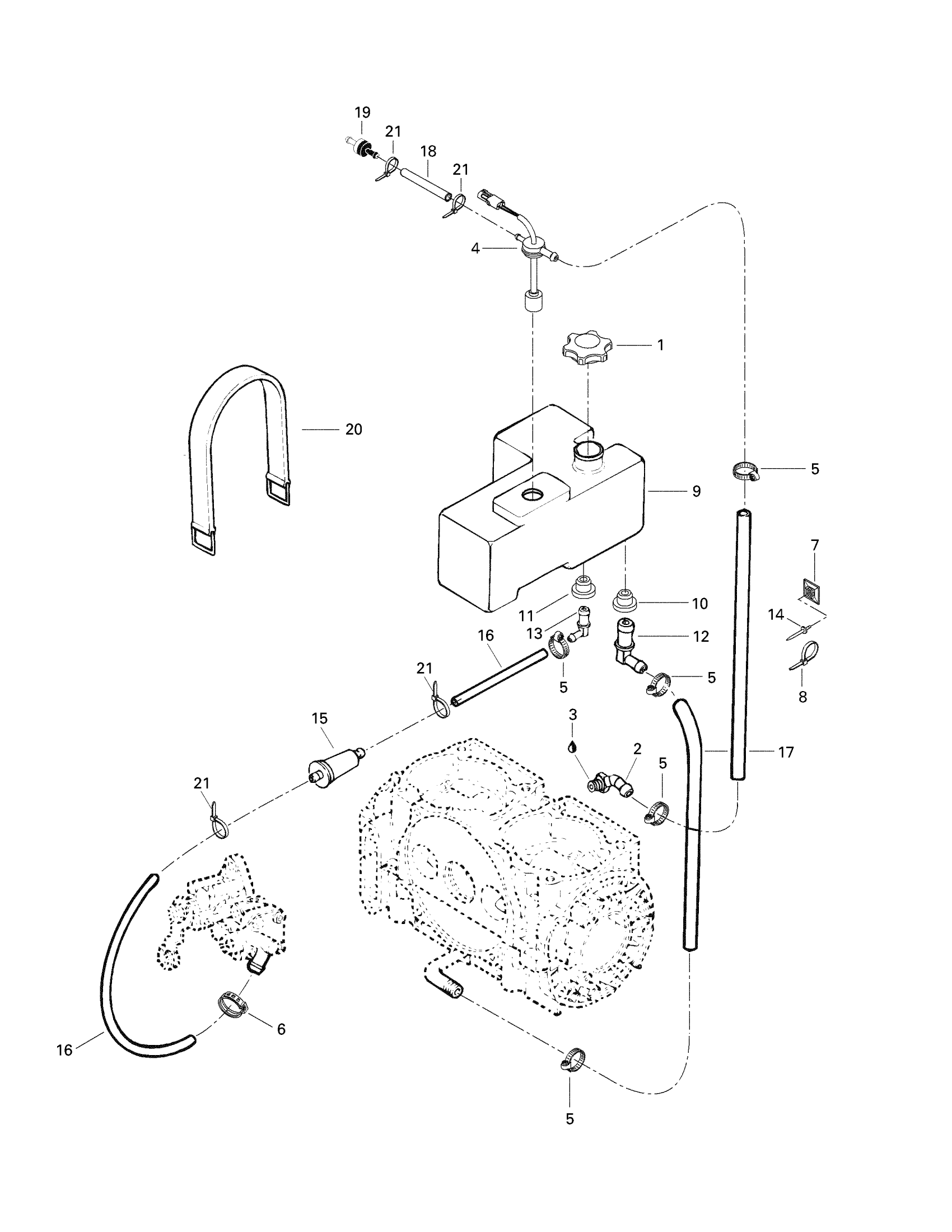

Sea-doo Explorer, 5824, 1997 Oil Injection System Diagram

#

Description
Price

1

Fuel Tank Cap

513033025

$22.36

2

Angular Tube

420922242

$14.10

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

4

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

5

Tridon Gear Clamp

293650170

$2.00

6

Oetiker Clamp

293650042

$1.61

7

TIE RAP MOUNT - Call your local BRP dealership

293750003

Unavailable

8

Tie Wrap 142 mm

293750002

$1.01

9

Oil Tank

275000138

Unavailable

10

Grommet | Europe

707800347

$8.70

11

Grommet

709200285

$8.13

12

Elbow Fitting

414523600

$4.58

13

Elbow Fitting 90 Deg

414650200

Unavailable

14

Rivet 1/8"

293150016

$0.33

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

17

Was 275500008 Hose 12 mm

219704356

$6.82

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

19

Check Valve This part replaces 275500087.

275501246

Unavailable

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$0.96
