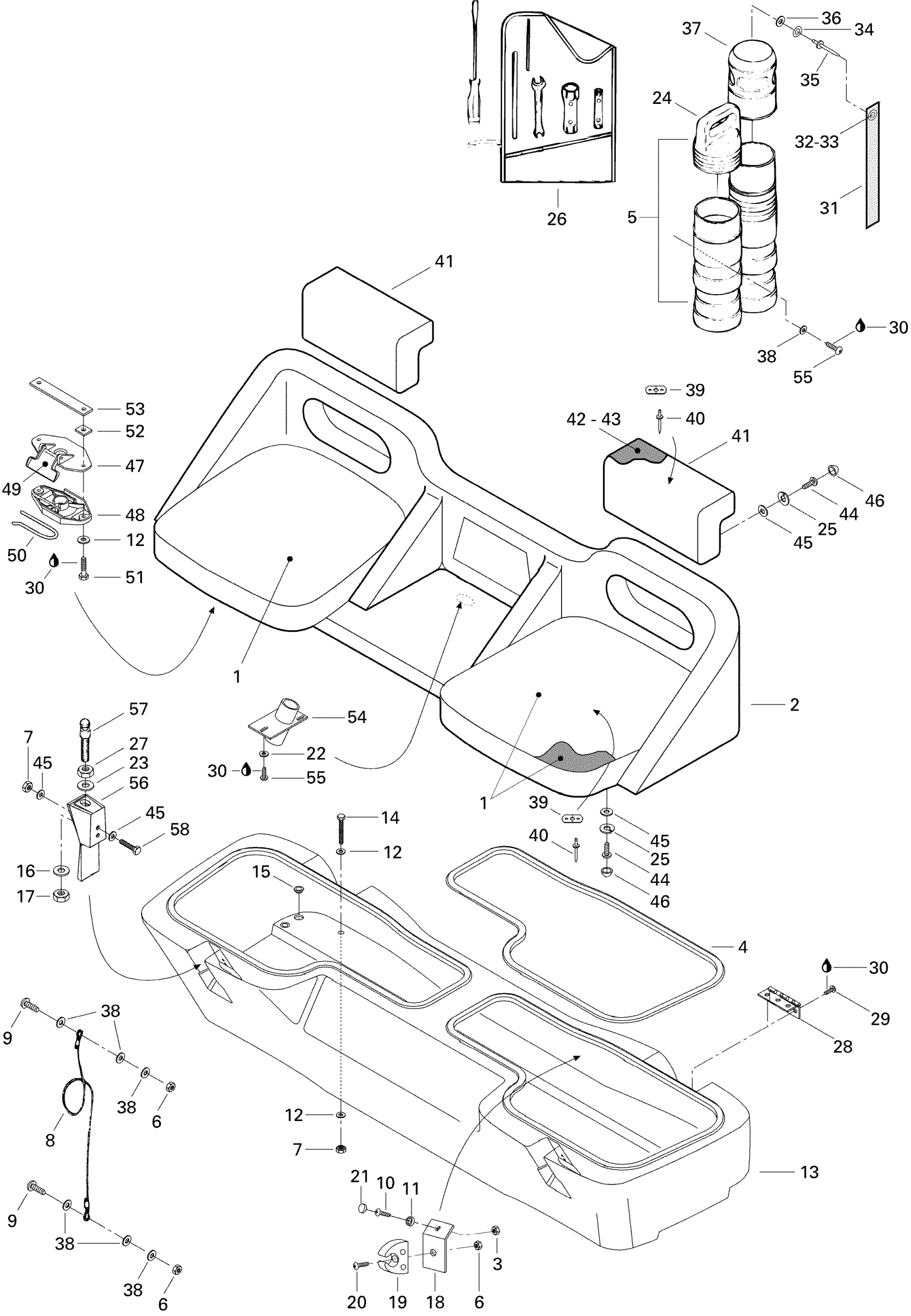

Sea-doo Explorer, 5823, 1996 09- Seat, Rear Diagram
#
1
Seat Ass'y (Incl. It. 39,40)
269000179
Unavailable
1
Seat Cover
269000196
Unavailable
1
Rear Seat Foam
269000214
Unavailable
1
Staple
293730005
Unavailable
2
Seat Base / coffre (incl. it 4)
269000203
Unavailable
3
Elastic Stop Nut M4
232541600
$1.15
4
Seal Tray 1000Mm Long
219704368
$13.99
5
Housing Ass'y | Includes 24,37
269500105
Unavailable
6
Hex. Elastic Nut M5 | X
232551600
$1.15
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
9
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
10
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership
216142060
Unavailable
11
RETAINER CAP - Call your local BRP dealership
414436800
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Rear Tray
291000639
Unavailable
14
Hex. Screw M6 X 35
207163560
$1.49
15
Black Plug
291000279
$7.69
16
Flat Washer 10 mm, Stainless
234002600
$2.22
17
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
18
Base Support
269500200
Unavailable
19
Pole Support
291000642
Unavailable
20
Screw M5 x 25
216152560
Unavailable
21
Snap Cap (White)
414576500
Unavailable
22
Flat Washer M5, Stainless
234051600
$0.77
23
Flat Washer 10 mm, Stainless
234001600
$1.15
24
Cap-Side
269500039
Unavailable
25
Lock Washer Helical M6
234161601
$1.15
26
Tool Kit
295000066
Unavailable
27
Hex. Jam Nut M10
232100600
$2.22
28
Seat Hinge
269000125
Unavailable
29
Screw M5 x 12
216151260
Unavailable
30
Loctite 243, 10 ml
293800060
$21.49
31
Nylon Strap (Black) (Meter)
204000075
Unavailable
32
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
33
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
34
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
35
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
36
Flat Washer M3, Stainless
234032600
$0.55
37
Cap-Center
269500020
Unavailable
38
Flat Washer 5 mm, Stainless
234052600
$0.77
39
Spring Nut M5
204000065
Unavailable
40
Rivet 3/32"
204000080
Unavailable
41
Backrest Ass'y | (Incl. It. 36,37,39,40)
269000197
Unavailable
42
Backrest Cover
269000198
Unavailable
43
Backrest Foam
269000199
Unavailable
43
Backrest Foam
269000248
Unavailable
44
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
216662560
Unavailable
45
Stainless Flat Washer M6
234061600
$0.33
46
Cap (1/2")
269000252
Unavailable
47
Latch Ass'y
269700109
$24.99
48
Latch Ass'y
269700109
$24.99
49
Latch Ass'y
269700109
$24.99
50
Latch Spring
269700017
$9.19
51
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
52
Shim-Spacer
269000254
Unavailable
53
Retainer Plate
269000243
Unavailable
54
Base-Rear Lamp
269000244
Unavailable
55
Screw M5 x 10
215851068
Unavailable
56
Stud Support
271000439
Unavailable
57
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
58
Hex. Forming Screw M6 X 20
207162060
$1.29
