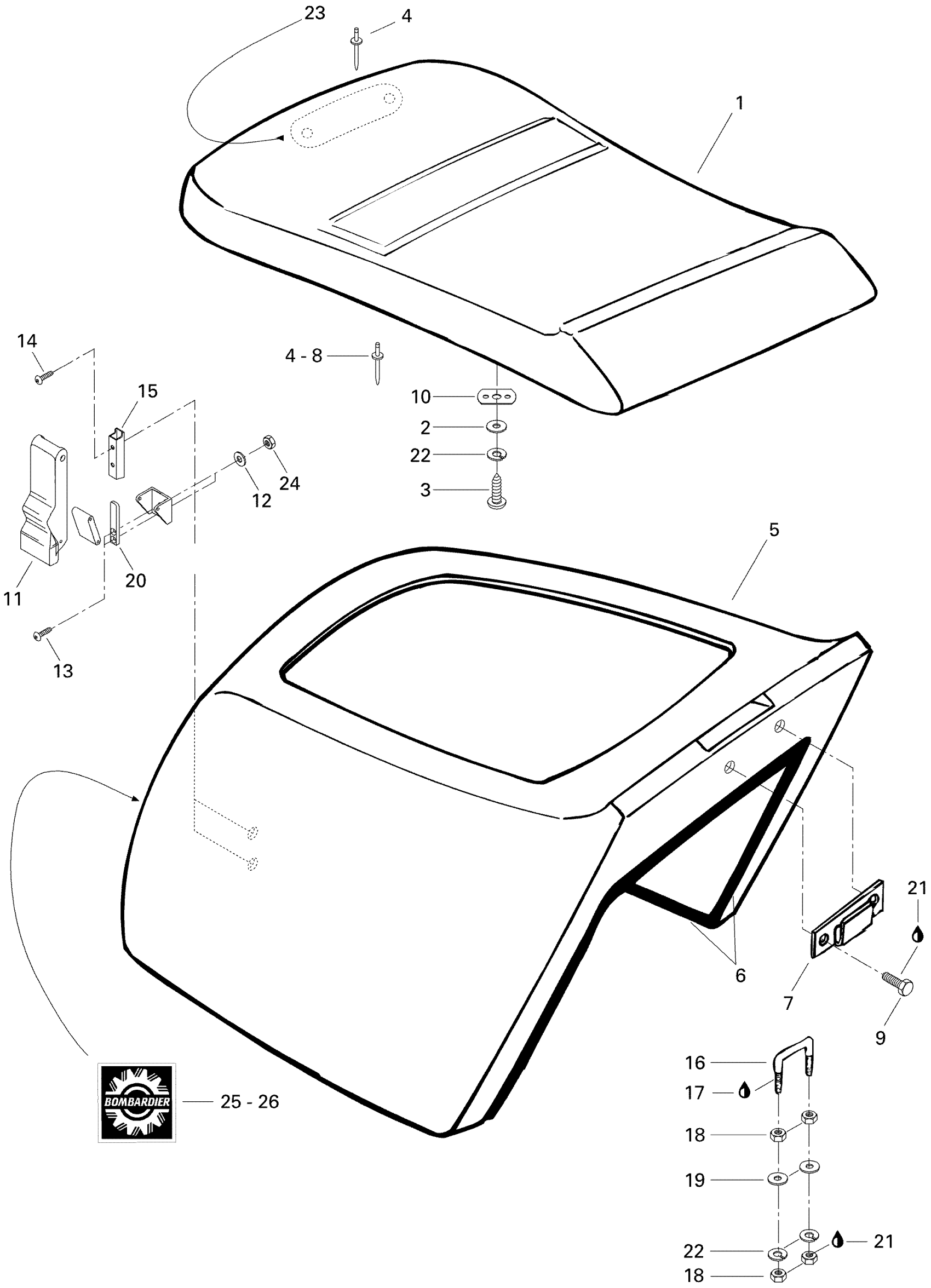

Sea-doo Explorer, 5823, 1996 09- Seat, Engine Cover Diagram
#
Description
Price
1
Seat Driver(Incl. It. 4,8,10,23)
269000177
Unavailable
1
Seat Cover
269000195
Unavailable
1
Seat Foam
269000103
Unavailable
1
Staple
293730005
Unavailable
2
Flat Washer M6, Stainless
234062600
$0.77
3
Screw 6.3 x 32
216663260
Unavailable
4
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
5
Seat Base / Engine Cover
269000202
Unavailable
6
Seal Tray 1000Mm Long
219704368
$13.99
7
Base Keeper
291000174
$19.99
8
Rivet 3/32"
204000080
Unavailable
9
Hex. Forming Screw M6 X 20
207162060
$1.29
10
Spring Nut M5
204000065
Unavailable
11
Seat Latch
269000124
Unavailable
12
Flat Washer M5, Stainless
234051600
$0.77
13
Screw M5 x 20
216152060
Unavailable
14
Screw M5 x 10
215851068
Unavailable
15
Support
269000146
Unavailable
16
Hook
291000545
Unavailable
17
Loctite 271, 10 ml
293800005
$26.99
18
Hex. Nut M6
232061600
$1.15
19
Stainless Flat Washer M6
234061600
$0.33
20
Guide
269000145
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Lock Washer Helical M6
234161601
$1.15
23
Handle
269000249
Unavailable
24
Hex. Elastic Nut M5 | X
232551600
$1.15
25
Logo Bombardier
219900361
Unavailable
26
Primer
293530036
Unavailable
