Description

Price

1

CONSOLE - Call your local BRP dealership

291001104

Unavailable

2

Deflector

291000636

Unavailable

3

Terminal 45°, Big Hole

278000538

Unavailable

4

Snap-Cap

204000014

Unavailable

5

Cap Retainer

204000013

Unavailable

6

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

7

Tie Wrap 368 mm

293750008

$1.04

8

Loctite 243, 10 ml

293800060

$21.49

9

Tie-Rap 180 mm

414115200

$0.11

10

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

11

Vent (Right)

291000539

Unavailable

11

Vent (Left)

291000540

Unavailable

12

Rivet 1/8"

293150016

$0.40

13

WASHER - Call your local BRP dealership

293150007

Unavailable

14

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

15

Flat Washer M3, Stainless

234032600

$0.55

16

Hex. Screw M6 X 40

207064060

$1.69

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Duct-Air Vent

237000005

Unavailable

20

Tridon Clamp

204000079

$9.99

21

Flexible Hose (4")

204000062

Unavailable

22

Neoprene 1/4 x 3/8 (Meter)

204000094

Unavailable

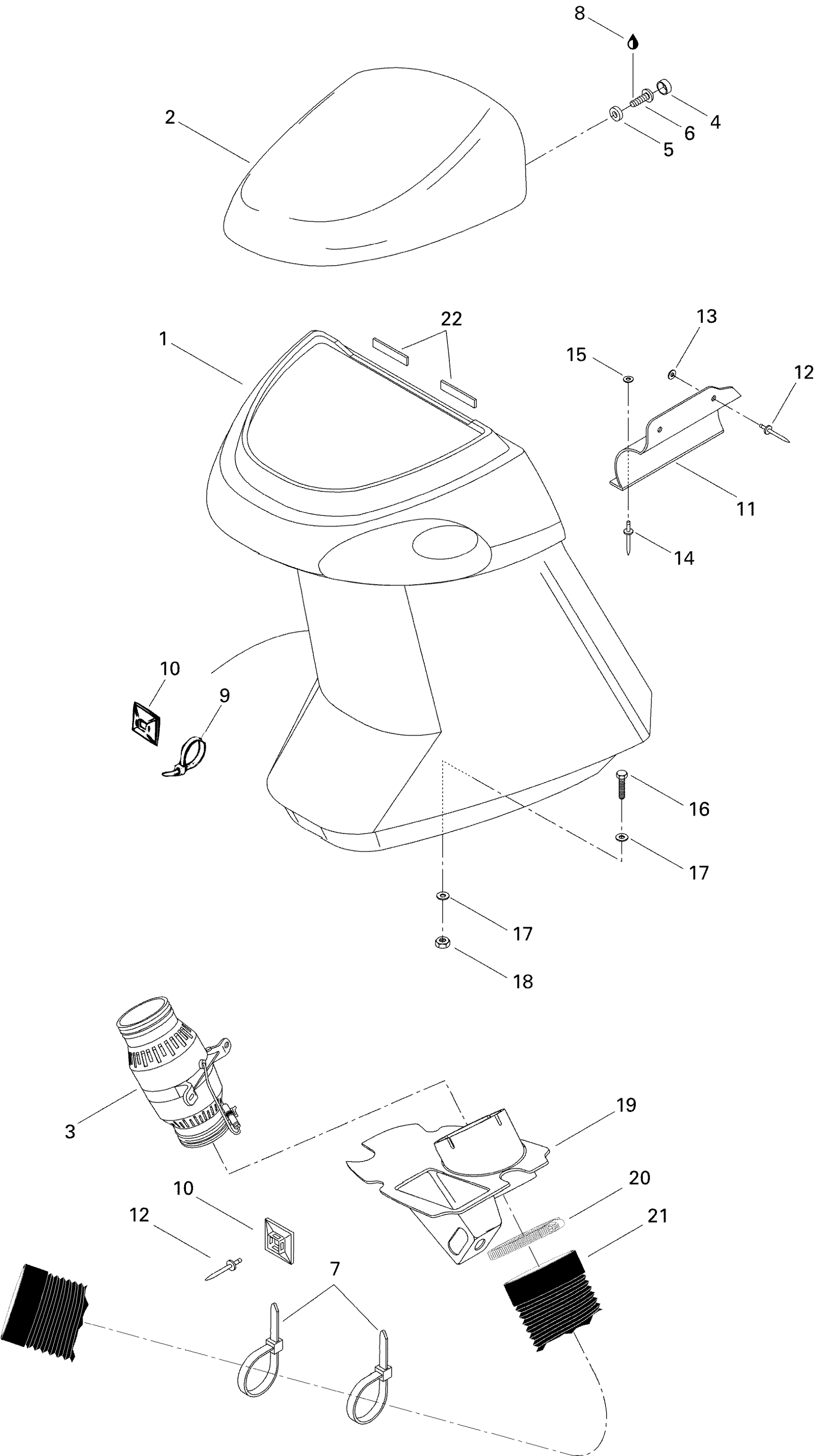

Sea-doo Explorer, 5823, 1996 09- Front Console Diagram

CONSOLE - Call your local BRP dealership

Deflector

Terminal 45°, Big Hole

Snap-Cap

Cap Retainer

SCREW M4 X 12 - Call your local BRP dealership

Tie Wrap 368 mm

Loctite 243, 10 ml

Tie-Rap 180 mm

TIE RAP MOUNT - Call your local BRP dealership

Vent (Right)

Vent (Left)

Rivet 1/8"

WASHER - Call your local BRP dealership

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

Flat Washer M3, Stainless

Hex. Screw M6 X 40

Flat Washer M6, Stainless

Hex. Elastic Stop Nut M6

Duct-Air Vent

Tridon Clamp

Flexible Hose (4")

Neoprene 1/4 x 3/8 (Meter)
