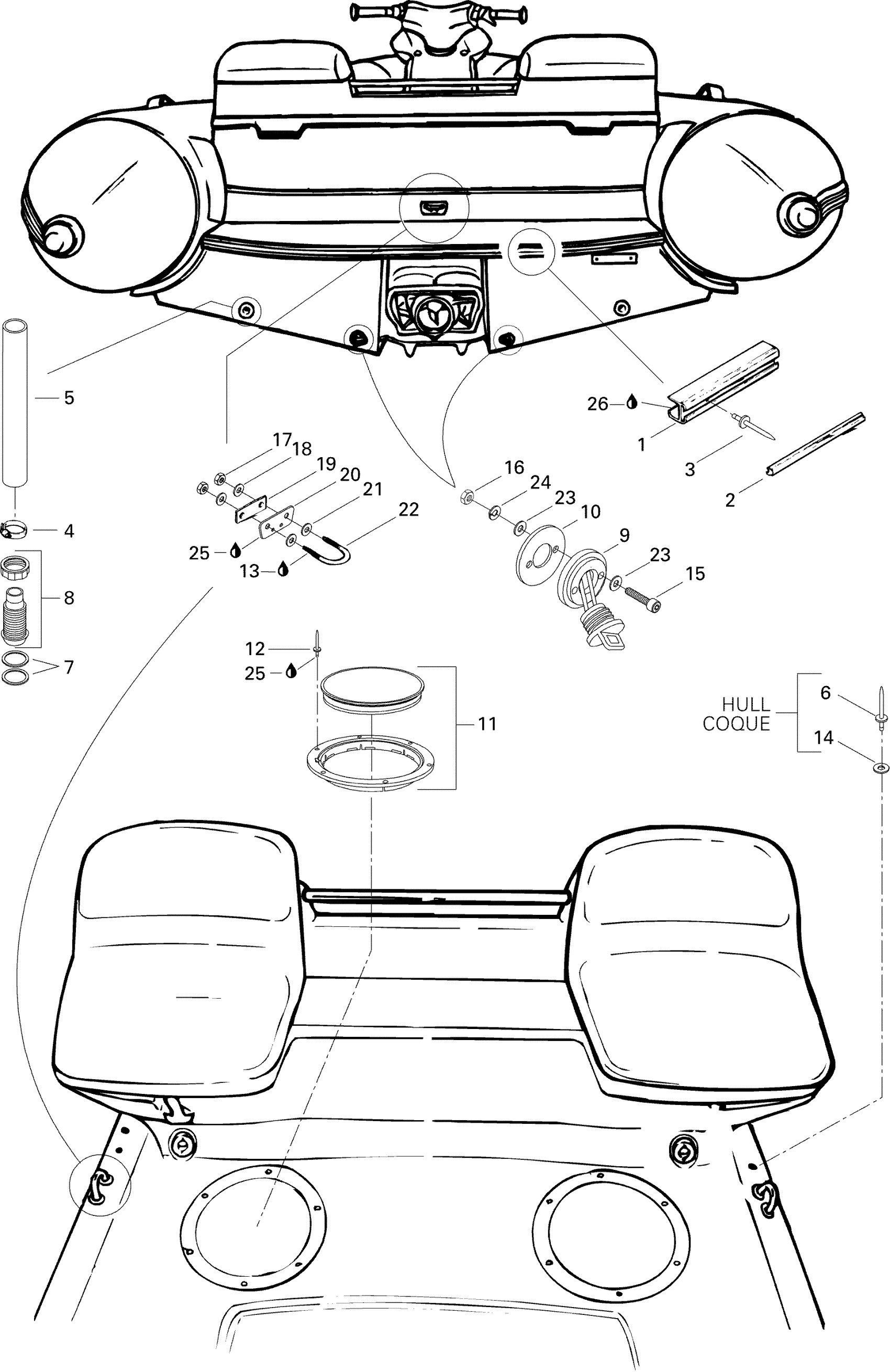

Sea-doo Explorer, 5823, 1996 09- Body And Accessories 1 Diagram
#
Description
Price
1
Rear Bumper (Violet)
291000649
Unavailable
2
Bumper Trim (Violet)
291000647
Unavailable
3
Pop Rivet 3/16"
293150014
$1.09
4
Tridon Gear Clamp
293650019
$5.82
5
Flexible Hose (Meter)
291000102
Unavailable
6
Pop Rivet 3/16"
293150043
$2.09
7
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
8
Fitting
293710162
$13.49
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
Cover
204000060
Unavailable
12
Pop Rivet 3/16"
293150039
$1.49
13
Loctite 271, 10 ml
293800005
$26.99
14
Washer 5 mm
217 0527 00
Unavailable
15
Socket Head Screw M4 X 25
205042560
$2.22
16
Nut M4
211100025
Unavailable
17
Hex. Nut M8
232081600
$1.47
18
Lock Washer 8 mm, Stainless
234181601
$0.55
19
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
20
Finition Plate
291000426
Unavailable
21
Flat Washer M8.5 x 18
293050001
$3.07
22
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
23
Flat Washer 4 mm
234040600
$0.55
24
Lock Washer 4 mm
234141601
$1.15
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
Not Available As Spare Part - Friction Washer
Unavailable
