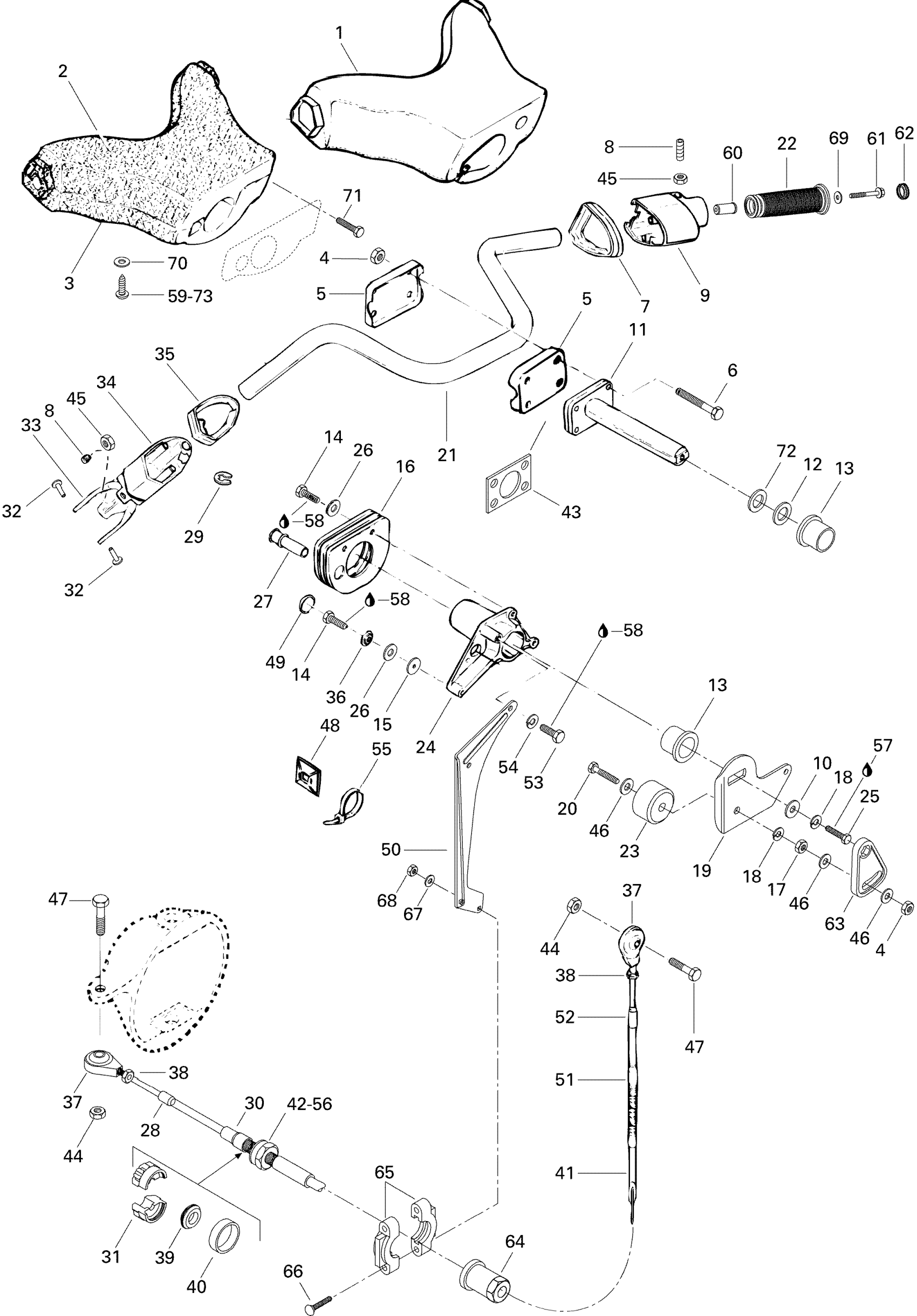

Sea-doo Explorer, 5823, 1996 07- Steering System Diagram
#
1
Steering Cover
277000260
Unavailable
2
TOP FOAM - Call your local BRP dealership
277000145
Unavailable
3
Bottom Foam
277000146
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
6
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
7
LH Adapter
277000341
Unavailable
8
Set Screw M6 x 10
216561060
Unavailable
9
LH HOUSING ASS'Y - Call your local BRP dealership
277000221
Unavailable
10
Washer
211200001
Unavailable
11
Steering Stem
277000223
Unavailable
12
SHIM - Call your local BRP dealership
293350006
Unavailable
13
Bushing
293900002
Unavailable
14
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
15
Plastic Washer
277000100
Unavailable
16
Collar (Black)
277000091
Unavailable
17
Hex. Nut M8
232081600
$1.47
18
Lock Washer 8 mm, Stainless
234181601
$0.55
19
Steering Stem Arm
277000247
Unavailable
20
Hex. Screw M8 X 45
207084560
$3.38
21
Handle bar
277000305
Unavailable
22
Handle Grip Kit (Black) This part replaces 295500112.
295500110
$41.49
23
Stopper Bushing
277000097
Unavailable
24
Steering Support
277000115400
Unavailable
25
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
Grommet
293720014
Unavailable
28
Small Boot
277000038
Unavailable
29
Circlip 5 mm
293370002
$5.50
30
LARGE BOOT - Call your local BRP dealership
277000039
Unavailable
31
Half-Ring
277000168
Unavailable
32
PIN - Call your local BRP dealership
277000381
Unavailable
33
Throttle Handle
277000472
Unavailable
34
THROTTLE HANDLE HOUSING - Call your local BRP dealership
277000222
Unavailable
35
Throttle Adapter
277000084
Unavailable
36
Retaining Washer
277000096
Unavailable
37
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
38
Hex. Nut
212100005
$1.35
39
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
40
Retaining Ring
211100010
Unavailable
41
Steering Cable Ass'y
277000283
Unavailable
42
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
43
Spacer
277000436
Unavailable
44
Hex. Elastic Stop Nut M6
232561600
$1.15
45
Hex. Nut M6
232160600
$1.15
46
Stainless, Flat Washer 8 mm
234081600
$0.55
47
Hex. Screw M6 X 30
207063060
$1.89
48
TIE RAP MOUNT - Call your local BRP dealership
293750003
Unavailable
49
Snap Cap
210000019
Unavailable
50
Cable Support
277000248
Unavailable
51
LARGE BOOT - Call your local BRP dealership
277000039
Unavailable
52
Small Boot
277000038
Unavailable
53
Hex. Screw M8 x 16
215681660
Unavailable
54
Lock Washer 8 mm, Stainless
234181601
$0.55
55
Tie Wrap 142 mm
293750002
$1.25
56
Hex. Jam Nut 1/2-20
211100011
Unavailable
57
Loctite 271, 10 ml
293800005
$26.99
58
Loctite 243, 10 ml
293800060
$21.49
59
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)
243164560
Unavailable
62
Black, Cap
277000203
$9.39
63
Lock Plate
277000201
Unavailable
64
KNOB ADJUSTER - Call your local BRP dealership
277000167
Unavailable
65
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
66
Bolt-Carriage M6 x 60
215266060
Unavailable
67
Stainless Flat Washer M6
234061600
$0.33
68
Hex. Elastic Stop Nut M6
232561600
$1.15
69
Flat Washer M6, Stainless
234062600
$0.77
70
Flat Washer M5, Stainless
234051600
$0.77
71
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
72
Spring Washer
211200008
Unavailable
73
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
