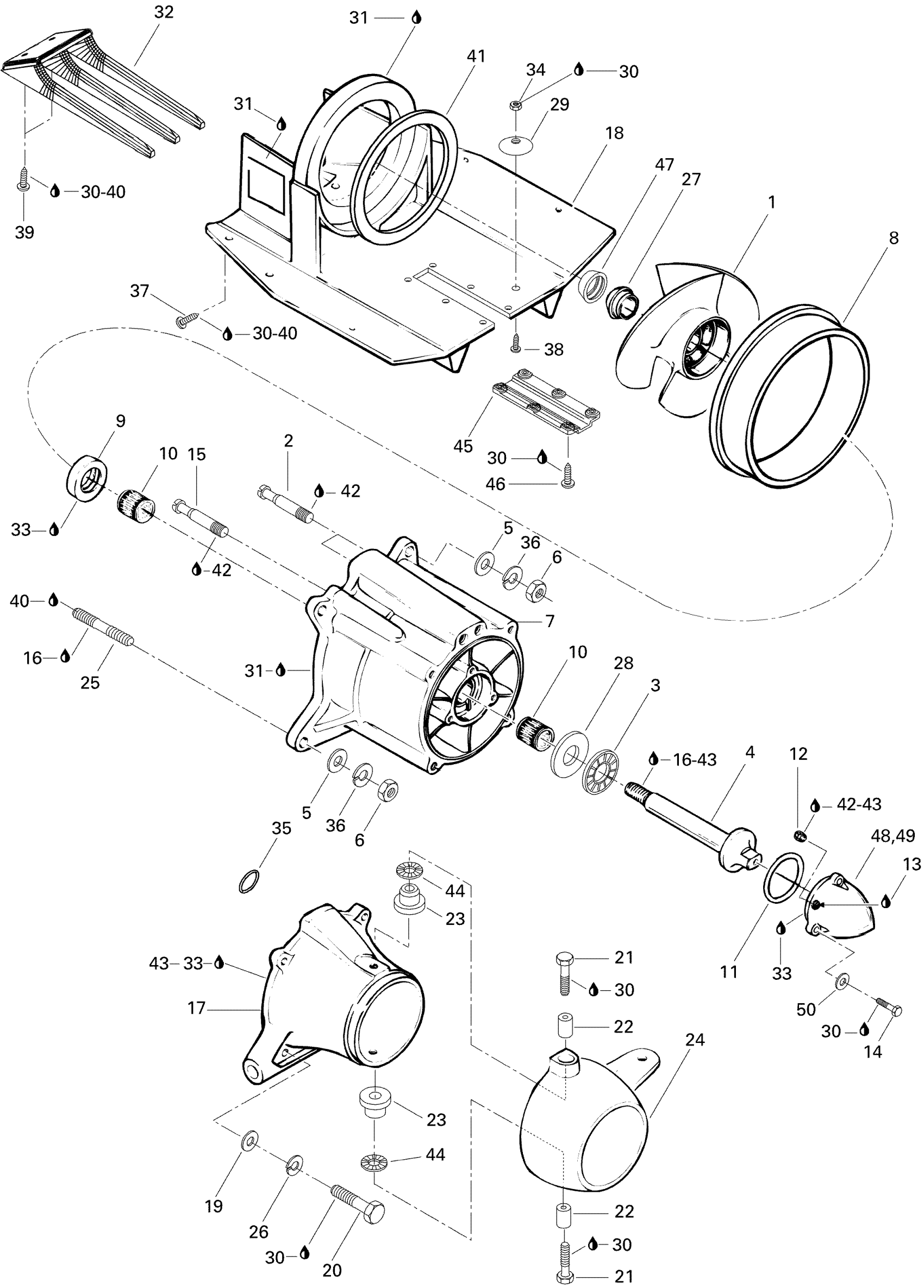

Sea-doo Explorer, 5823, 1996 05- Propulsion Diagram
#
1
Impeller 15-21°/S.S Satin
271000280
Unavailable
2
BAILER FITTING - Call your local BRP dealership
293700017
Unavailable
3
BEARING THRUST - Call your local BRP dealership
293350019
Unavailable
4
IMPELLER SHAFT - Call your local BRP dealership
271000291
Unavailable
5
Flat Washer 10 mm, Stainless
234001600
$1.15
6
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
7
IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 7 to 10
295500197
Unavailable
8
Wear Ring
271000290
$58.49
9
Oil Seal
267000094
$22.49
10
Needle Bearing
293350017
$27.99
11
O-Ring
293300011
$8.64
12
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
13
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
$16.99
14
Hex. Screw M5 X 20
207152060
$1.47
15
FITTING-PUMP - Call your local BRP dealership
293700019
Unavailable
16
Loctite 271, 10 ml
293800005
$26.99
17
Venturi
271000082
Unavailable
18
Shoe
271000407190
Unavailable
19
Stainless, Flat Washer 8 mm
234081600
$0.55
20
Hex. Screw M8 X 35
207083560
$1.47
21
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
22
SLEEVE - Call your local BRP dealership
271000040
Unavailable
23
Venturi Bushing
293900001
$7.62
24
Steering Nozzle
271000081
Unavailable
25
Stud M10
211300014
Unavailable
26
Lock Washer 8 mm, Stainless
234181601
$0.55
27
Impeller Boot
271000516
$9.59
28
Thrust Washer
293350003
Unavailable
29
Anode-Zinc
204000052
Unavailable
30
Loctite 243, 10 ml
293800060
$21.49
31
Instant Gasket
219701421
$51.99
31
Instant Gasket
219701421
$51.99
32
Inlet Grate
271000438
Unavailable
33
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
34
Hex. Nut
212100005
$1.35
35
O-Ring
293300013
$8.18
36
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
37
Phillips Screw M6 X 25
208562560
$2.32
38
Screw 10-32 x 5/8
211000017
Unavailable
39
Phillips Screw M6 X 25
208562560
$2.32
40
Silicone Sealant 51388, 300 ml
296000309
$36.99
41
SEAL NEOPRENE - Call your local BRP dealership
293200024
Unavailable
42
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
43
Was 293800041 Loctite Primer 7649
219704458
$39.99
44
Washer Venturi
271000095
Unavailable
45
Ride Shoe Cap
291000446
Unavailable
46
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership
216351060
Unavailable
47
RING - Call your local BRP dealership
271000313
Unavailable
48
Impeller Cover Kit | Includes 48 to 50
295500297
Unavailable
49
Impeller Cover
271000361
Unavailable
50
Flat Washer M5, Stainless
234051600
$0.77
