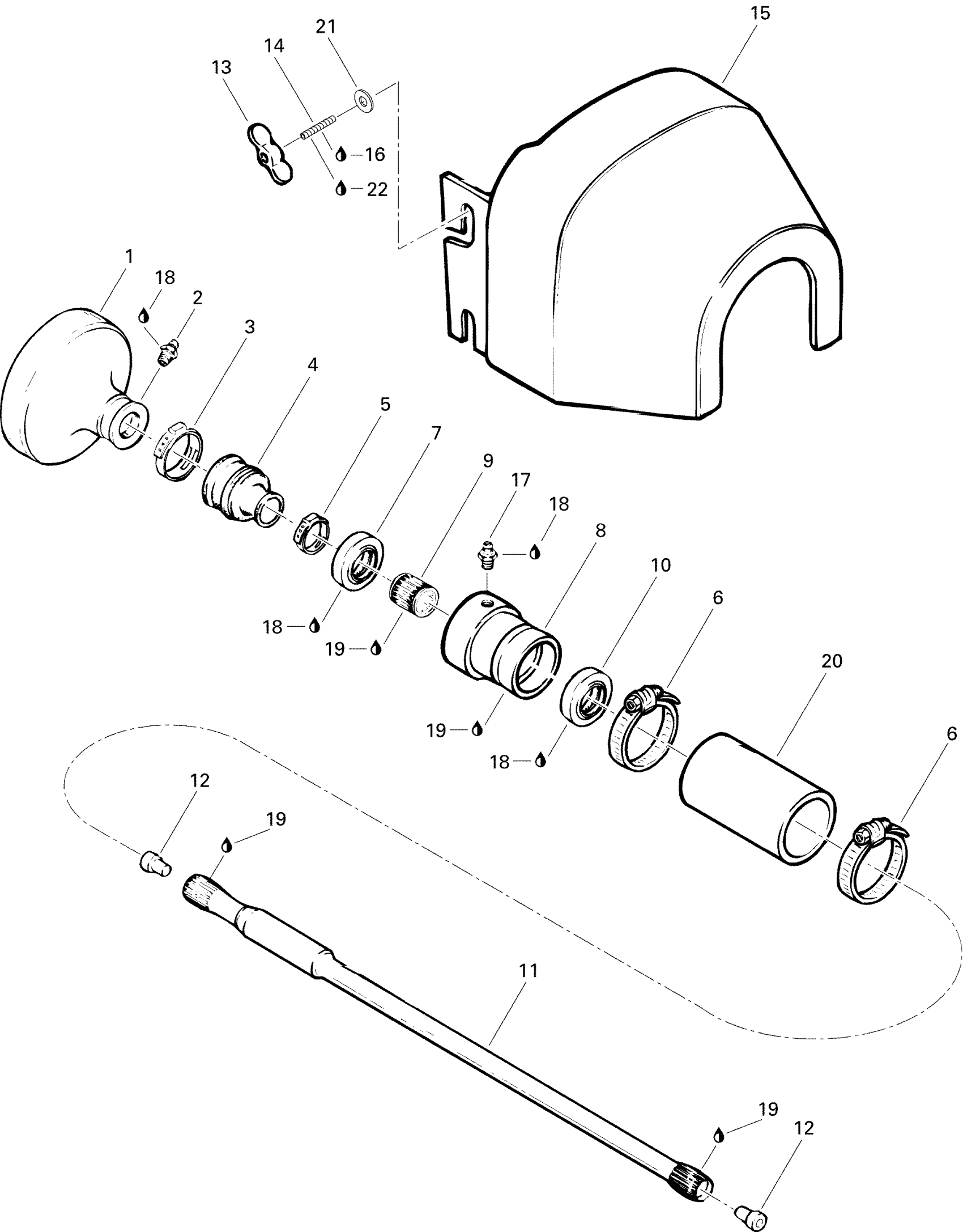

Sea-doo Explorer, 5823, 1996 Drive System Diagram

#

Description
Price

1

Clutch-Flywheel | Includes 23 - 24.

290958011

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

CAILLAU CLICK CLAMP - Call your local BRP dealership

293650055

Unavailable

6

Tridon Clamp

293650035

$7.29

7

Oil Seal

267000094

$22.49

8

SEAL CARRIER - Call your local BRP dealership

272000024

Unavailable

9

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

10

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

11

Drive Shaft

272000044

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

Stud M8 x 15

211300013

Unavailable

15

Flywheel Guard

272000034

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

Synthetic Grease, 400 G

293550010

Unavailable

20

PROTECTION HOSE - Call your local BRP dealership

271000311

Unavailable

21

Flat Washer 8 mm, Stainless

234082600

$2.43

22

Loctite 243, 10 ml

293800060

$21.49
