Description

Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

Air Silencer Base

273000074

Unavailable

4

Flame Arrester

273000062

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Housing Arrester

273000051190

Unavailable

7

Support

270000083

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Loctite 243, 10 ml

293800060

$21.49

10

Socket Screw M6 X 16

205061660

$1.48

11

Socket Head Screw M6 X 25

205062560

$1.69

12

Lock Washer Helical M6

234161601

$1.15

13

Rubber Bumper

293830005

$8.09

14

GASKET - Call your local BRP dealership

293250023

Unavailable

15

Socket Head Screw M6 X 12

205061260

$1.58

16

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

17

Retainer Clip

273000006

Unavailable

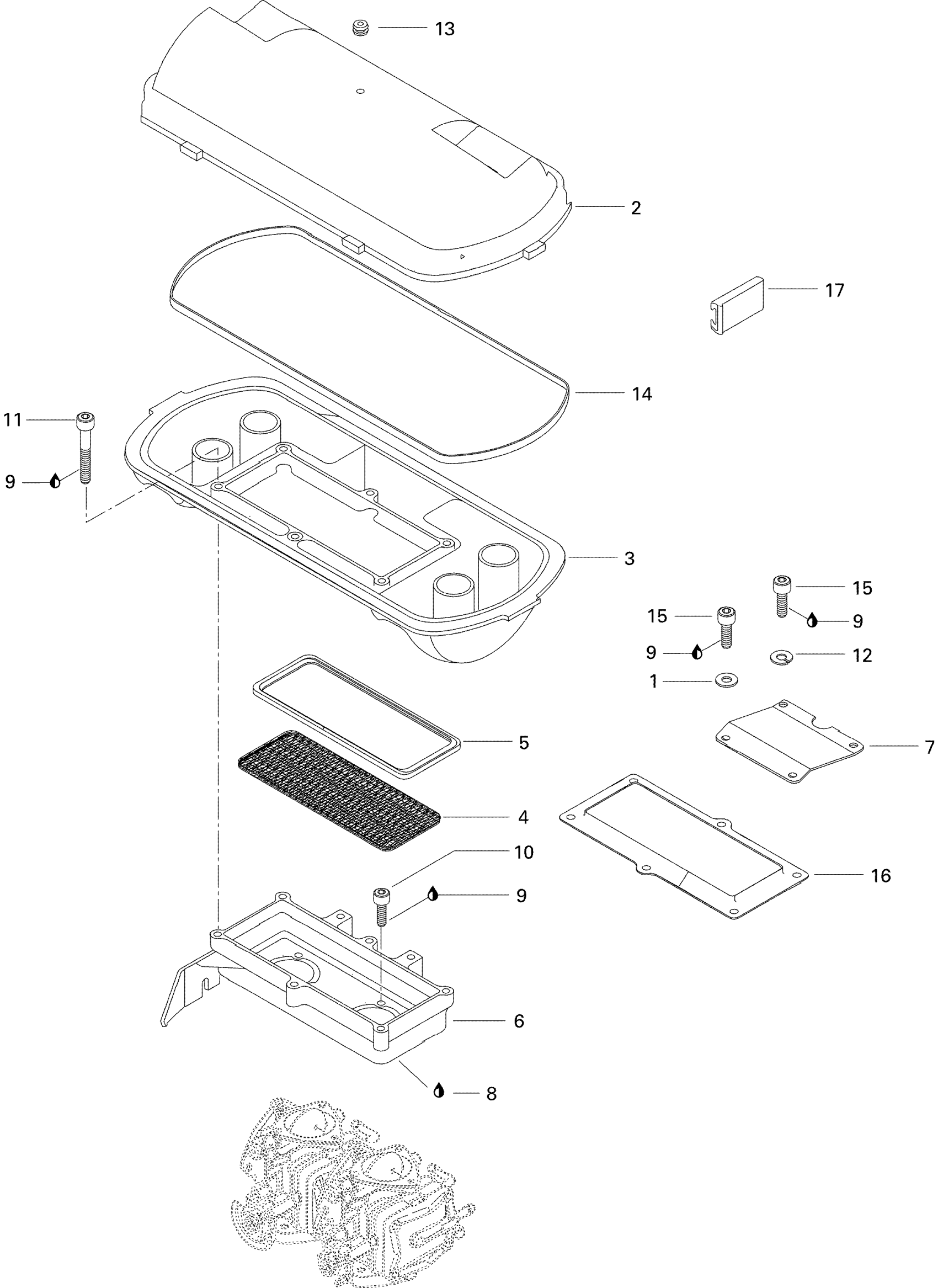

Sea-doo Explorer, 5823, 1996 02- Air Intake Diagram

Stainless Flat Washer M6

AIR SILENCER COVER - Call your local BRP dealership

Air Silencer Base

Flame Arrester

ISOLATOR - Call your local BRP dealership

Housing Arrester

Support

Était/Was 293800038 Loctite 518, 50 ml

Loctite 243, 10 ml

Socket Screw M6 X 16

Socket Head Screw M6 X 25

Lock Washer Helical M6

Rubber Bumper

GASKET - Call your local BRP dealership

Socket Head Screw M6 X 12

HOLDER PLATE - Call your local BRP dealership

Retainer Clip
