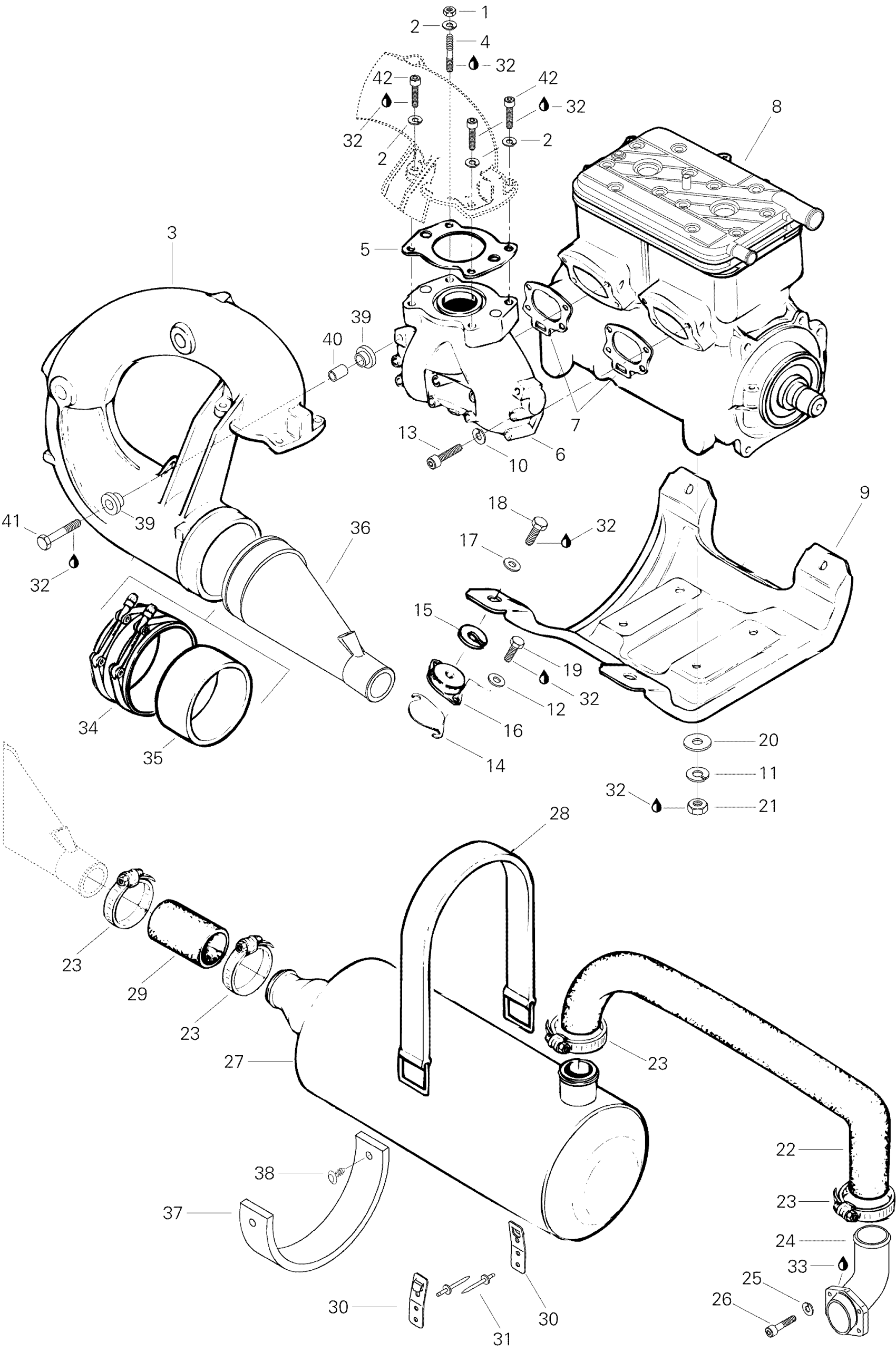

Sea-doo Explorer, 5823, 1996 01- Exhaust System Diagram
#
1
Hex. Nut M8
232081600
$1.47
2
Lock Washer 8 mm, Stainless
234181601
$0.55
3
Tuned Pipe Ass.
274000123
Unavailable
4
Stud M8 x 26
420941014
$14.22
5
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
6
Exhaust Manifold (White)
290978344
Unavailable
7
Gasket
290850635
Unavailable
8
Rotax Engine 657 (White)
270000153
Unavailable
9
Engine Support
270000147
Unavailable
10
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
14
Shim 0.4 mm
270000006
Unavailable
14
Shim 1.3 mm
270000007
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
15
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
22
Exhaust Hose Formed
274000133
Unavailable
23
Tridon Clamp
293650036
$7.49
24
Exhaust Outlet
274000153190
Unavailable
25
Stainless Flat Washer M6
234061600
$0.33
26
Socket Head Screw M6 X 25
205062560
$1.69
27
Muffler
274000081
Unavailable
28
Retainer Strap
293850097
$11.64
29
Exhaust Hose
274000157
Unavailable
30
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
31
Avdel Rivet 3/16"
293150037
$0.56
32
Loctite 243, 10 ml
293800060
$21.49
33
Instant Gasket
219701421
$51.99
33
Instant Gasket
219701421
$51.99
34
Clamp
274000211
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone
274000137
Unavailable
37
Rubber Pad
293830008
Unavailable
38
Black, Dart
293730006
$0.99
39
Rubber Bushing
293830031
Unavailable
40
Bushing
274000114
$8.85
41
Hex. Screw M8 X 40
207084060
$2.22
42
Socket Screw M8 X 30
205083060
$2.96
43
Engine Gasket Set (Not Shown)
290886651
Unavailable
44
Cylinder Gasket Set (Not Shown)
290886655
Unavailable
