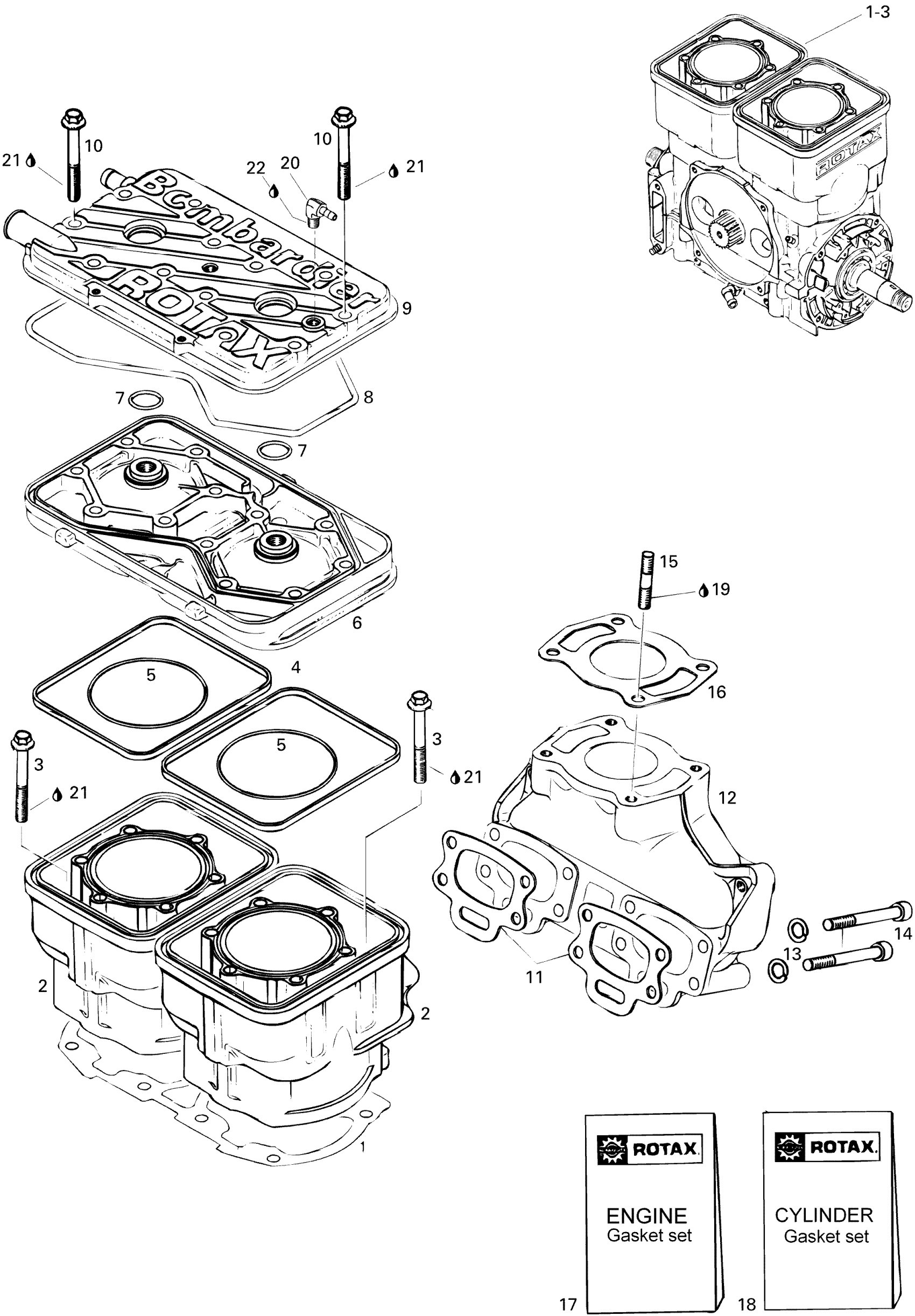

Sea-doo Explorer, 5823, 1996 01- Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 22

290881448

Unavailable

1

Gasket Cylinder 0.3 mm

290931162

Unavailable

1

Gasket Cylinder 0.4 mm

290931165

Unavailable

1

Cylinder Gasket 0.5 mm

290931161

Unavailable

1

Gasket Cylinder 0.6 mm

290931163

Unavailable

1

Gasket Cylinder 0.8 mm

290931164

Unavailable

2

Cylinder with Sleeve (White)

290913386

Unavailable

3

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

4

Rubber Ring

290850045

Unavailable

5

O–Ring

290931220

Unavailable

6

Head Cylinder (White)

290913701

Unavailable

7

O-Ring

420430782

$5.39

8

O-Ring This part replaces 290950320.

420950320

$14.28

9

Cylinder Head Cover (White)

290913711

Unavailable

10

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

11

Gasket

290850635

Unavailable

12

Exhaust Manifold (White)

290978344

Unavailable

13

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

14

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

15

Stud M8 x 26

420941014

$14.22

16

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

17

Engine Gasket Set (Not Shown)

290886651

Unavailable

18

Cylinder Gasket Set (Not Shown)

290886655

Unavailable

19

Sealant Loctite 648

219703000

$45.99

20

Elbow Fitting 90°

293710018

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Was 293800013 Loctite 56765

219704454

$65.99
