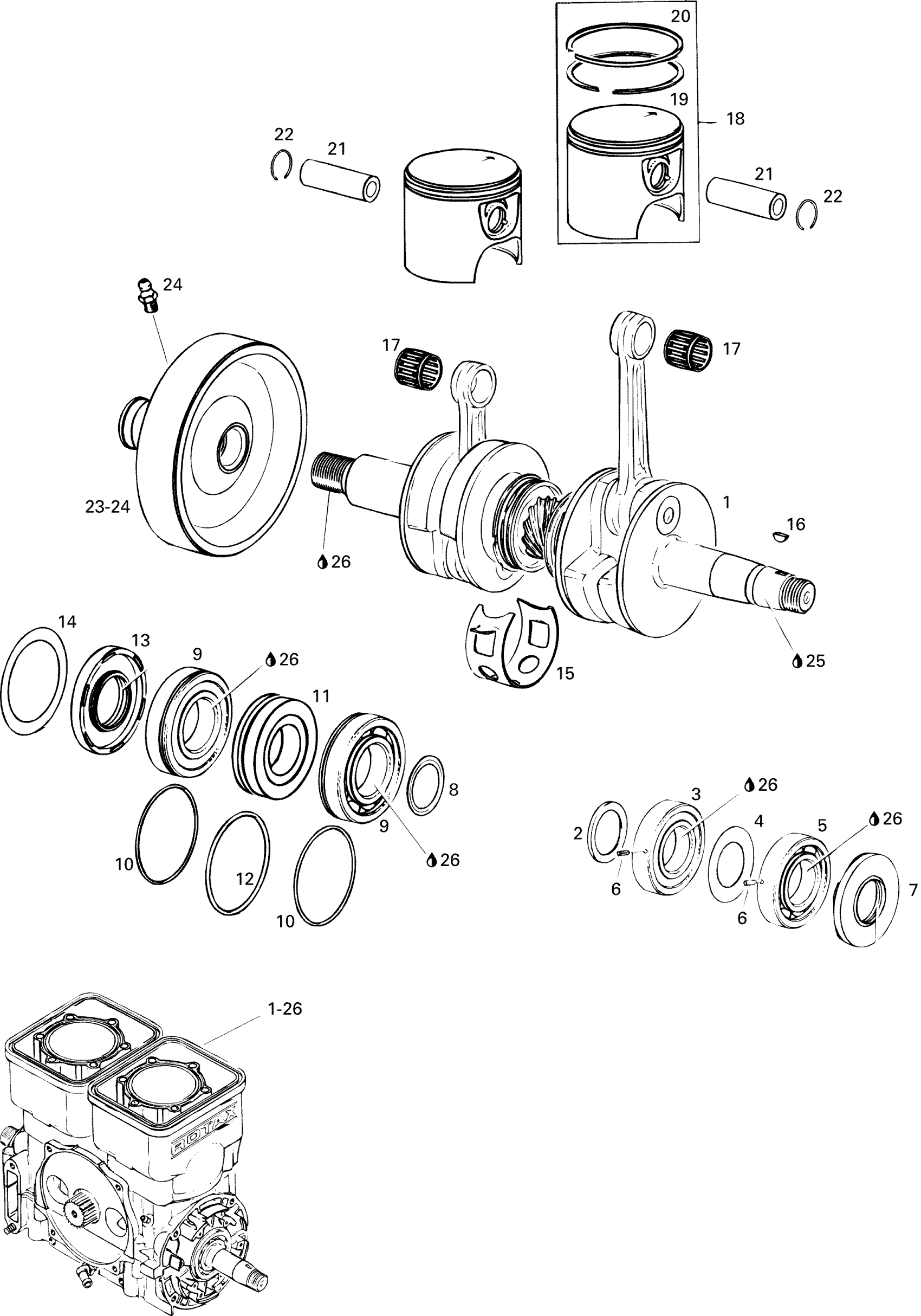

Sea-doo Explorer, 5823, 1996 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Short Block Ass‘y | Includes 1 to 22
290881448
Unavailable
1
Crankshaft Ass'y
290886558
Unavailable
2
SPACER RING - Call your local BRP dealership This part replaces 420827440.
420827441
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Shim 30.4 / 51 / 1
290827715
Unavailable
5
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
6
Rolled Pin
290832470
Unavailable
7
Oil Seal This part replaces 290830749.
420830749
$18.54
8
Distance Ring
290827760
Unavailable
9
Bearing_Ball This part replaces 290832231.
420832584
$41.49
10
O-Ring, 64 mm X 2 mm
293300022
$12.72
11
Labyrinth Sleeve
290830292
Unavailable
12
O–Ring
290830370
Unavailable
13
Oil Seal This part replaces 290831952.
420831952
$18.01
14
RETAINING SHIM - Call your local BRP dealership
290926060
Unavailable
15
Retaining Ring
290926070
Unavailable
16
Woodruff Key
420246055
$2.43
17
Needle
290832440
Unavailable
18
Piston with 2 Rings 78 mm | Includes 18 to 20
290887060
Unavailable
18
Piston with 2 Rings 78.25 mm | Includes 18 to 20
290887061
Unavailable
18
PISTON WITH 2 RINGS 78.5 MM - Call your local BRP dealership | Includes 18 to 20
290887062
Unavailable
19
Rectangular Ring 78 mm
290815025
Unavailable
19
Rectangular Ring 78.25 mm
290815026
Unavailable
19
Rectangular Ring 78.5 mm
290815027
Unavailable
20
Semi–Trapez Ring 78 mm
290815035
Unavailable
20
Semi–Trapez Ring 78.25 mm
290815036
Unavailable
20
Semi–Trapez Ring 78.5 mm
290815037
Unavailable
21
Gudgeon Pin
290916360
Unavailable
22
Circlip
290845100
Unavailable
23
Clutch-Flywheel | Includes 23 - 24.
290958011
Unavailable
24
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
27
Engine Gasket Set (Not Shown)
290886651
Unavailable
28
Cylinder Gasket Set (Not Shown)
290886655
Unavailable
