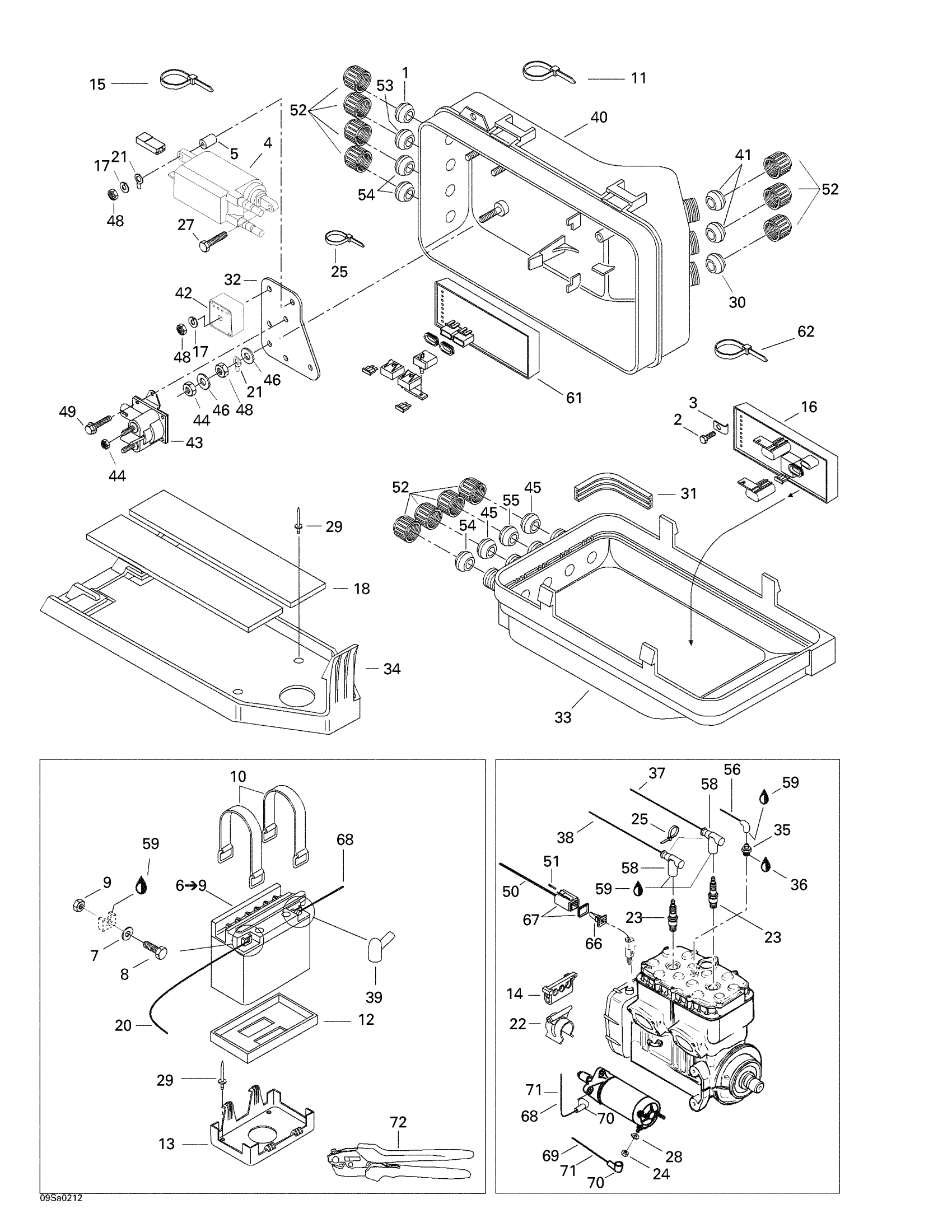

Sea-doo Explorer, 5455, 2002 Electrical System Diagram

#

Description
Price

1

Grommet, 1 Circuit, Blue

293720030

Unavailable

2

Hex. Screw M6.3 x 13

209461340

Unavailable

3

Support Bracket

278000401

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

5

SPACER - Call your local BRP dealership

278000235

Unavailable

6

Battery 19A | Includes 5 to 8

278001756

$153.36

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Screw M6 X 16

207161644

$0.74

9

Hex. Nut M6

232061414

$0.53

10

Retainer Strap

293850097

$11.64

11

Tie-Rap 180 mm

414115200

$0.11

12

Lower Battery Pad

278001746

Unavailable

13

Battery Support

278001430

Unavailable

14

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

15

Tie-Rap 173 mm

293750009

$1.04

16

Fuse Block | Includes 24 - 33.

278000391

Unavailable

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Insulated Sheath

278001008

$3.28

20

Battery Cable (Red)

278000514

Unavailable

21

Ring Terminal

278000300

Unavailable

22

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

23

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Tie Wrap 142 mm

293750002

$1.25

26

Female Terminal | DS 650 X

278001009

$3.19

27

SCREW-TAPP.HEX.ISO.1479C - Call your local BRP dealership

209462540

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Avdel Rivet 3/16"

293150037

$0.56

30

GROMMET - Call your local BRP dealership

278000098

Unavailable

31

Gasket

278000181

Unavailable

32

Mounting Plate

278000615

Unavailable

33

Electric Box Cover

278000786

Unavailable

34

Electric Box Support

278001119

Unavailable

35

Temperature Sensor

278000194

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

37

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

38

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

39

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

40

Electric Box Base

278001085

Unavailable

41

Grommet

278000682

Unavailable

42

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

43

Starter Relay

278003012

$42.49

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

46

Stainless Flat Washer M6

234061600

$0.33

47

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

48

Hex. Nut M6

232061600

$1.15

49

Hex. Flange Screw M6 X 10

210261040

$1.48

50

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

51

Female Terminal

278000632

$2.09

52

Electric Wire Cap

278000100

Unavailable

53

GROMMET - Call your local BRP dealership

278000098

Unavailable

54

Grommet, 4 Circuit, Red

570026800

Unavailable

55

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

56

Temperature Harness Ass'y | (Incl. It. 1,52,64,65)

278000489

Unavailable

57

Insulated Sheath

278001008

$3.28

58

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

59

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

60

Insulated Sheath

278001007

$3.58

61

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 11 - 23.

278001134

Unavailable

62

Tie-Rap 180 mm

414115200

$0.11

63

3 Ways Harness | Includes 10 - 17.

278000607

Unavailable

64

Male Terminal

278000230

$4.39

65

Insulation Sheath

278000231

$5.08

66

Male Lock, 4 Circuits | CE

278000738

$3.09

67

Male Connector, 4 Circuits | CE

278000739

$19.49

68

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

69

Cable Battery, no 6, meter)

278001690

Unavailable

Red Cable Battery/Starter (no. 4) (Meter

278001691

Unavailable

70

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

71

Was 710000483 Heat Shrink Tubing

219704447

$78.99

72

Crimp Plier

529035730

Unavailable
