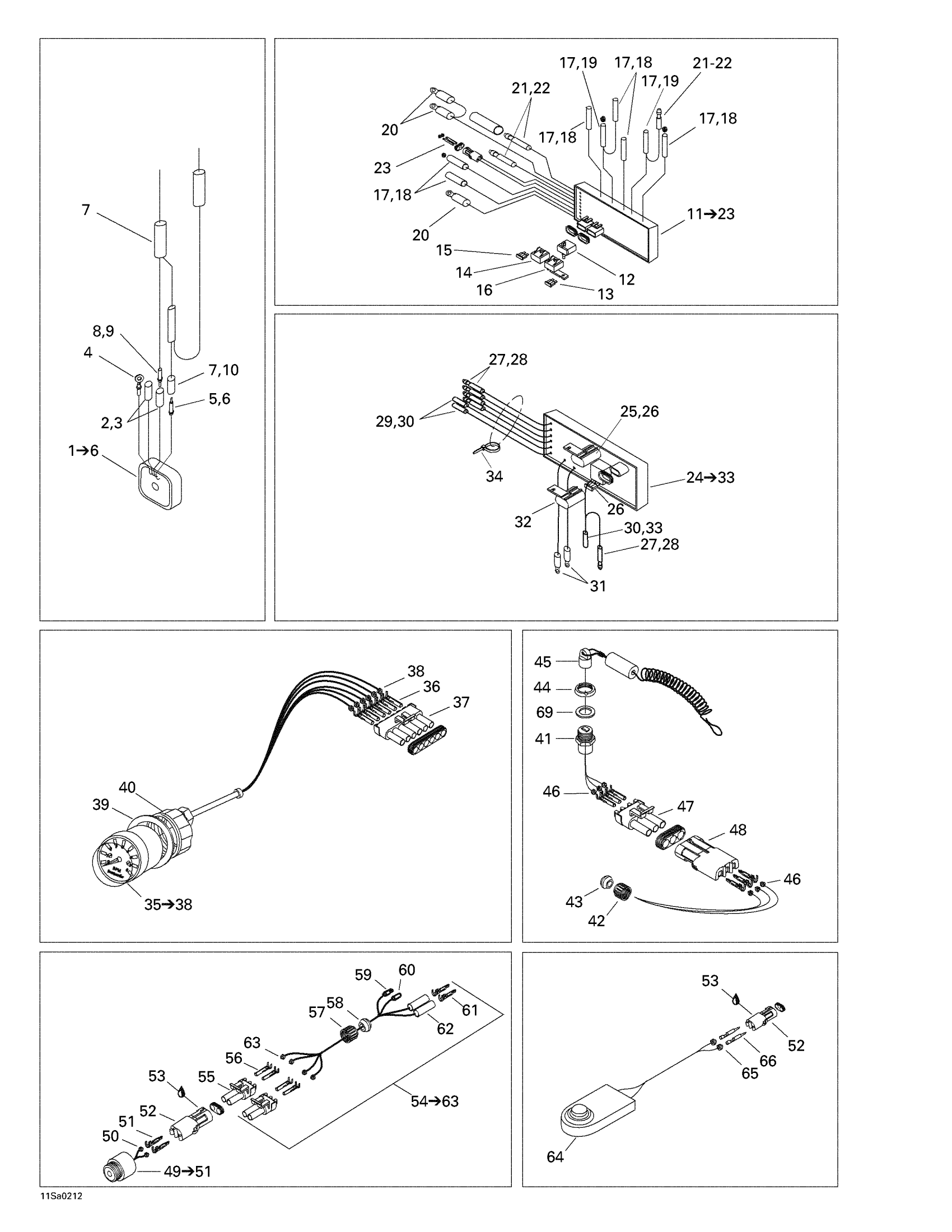

Sea-doo Explorer, 5455, 2002 Electrical Accessories 1 Diagram

#

Description
Price

1

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

2

Female Terminal | DS 650 X

278001009

$3.19

3

Insulated Sheath

278001007

$3.58

4

Open Barrel

278000992

$2.21

5

Male Terminal

278000230

$4.39

6

Insulated Sheath

278001008

$3.28

7

Female Terminal | DS 650 X

278001009

$3.19

8

Male Terminal

278000230

$4.39

9

Insulation Sheath

278000231

$5.08

10

Insulation Sleeve

278964072

Unavailable

11

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 11 - 23.

278001134

Unavailable

12

Fuse Holder

278000379

Unavailable

13

Fuse, 5 Amperes | CE

278000344

$3.28

14

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

15

Fuse, 15 Amperes

278000343

$3.28

16

Fuse Holder Cap

278001326

$7.69

17

Female Terminal | DS 650 X

278001009

$3.19

18

Insulated Sheath

278001007

$3.58

19

Insulated Sheath

278001007

$3.58

20

Open Barrel

278000992

$2.21

21

Male Terminal

278000230

$4.39

22

Insulation Sheath

278000231

$5.08

23

Female Terminal

278001114

$3.19

24

Fuse Block | Includes 24 - 33.

278000391

Unavailable

25

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

26

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

27

Insulated Sheath

278001008

$3.28

28

Male Terminal

278000230

$4.39

29

Insulated Sheath

278001007

$3.58

30

Female Terminal | DS 650 X

278001009

$3.19

31

Open Barrel

278000992

$2.21

32

Fuse Holder Cap

278001326

$7.69

33

Insulated Sheath

278001007

$3.58

34

Tie Wrap 142 mm

293750002

$1.25

35

Oil / Fuel Level Gauge | Includes 35 - 38.

278000496

Unavailable

36

Female Terminal

278000223

$3.19

37

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

38

Wire Seal

278000218

$4.39

39

Gasket

293000259

Unavailable

40

Gauge Nut

278000085

Unavailable

41

Safety Switch | Includes 41 - 43.

278000552

$149.99

42

Electric Wire Cap

278000100

Unavailable

43

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

44

Safety Switch Nut

278000099

Unavailable

45

Safety Lanyard

278001431

$47.49

46

Wire Seal

278000218

$4.39

47

Male Housing, 3 Circuits

278000273

$9.59

48

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

49

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

50

Wire Seal

278000218

$4.39

51

Male Terminal | XT Models

278000222

$3.19

52

Female Housing, 2 Circuits

278000217

$9.59

53

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

54

Buzzer-On/Off Switch Wiring | Includes 54 - 63.

278000470

Unavailable

55

Male Connector, 2 Circuits

278000220

$15.49

56

Female Terminal

278000223

$3.19

57

Electric Wire Cap

278000100

Unavailable

58

Grommet, 4 Circuit, Red

570026800

Unavailable

59

Ring Terminal

278000300

Unavailable

60

Insulated Sheath

278001007

$3.58

61

Male Terminal

278000230

$4.39

62

Insulation Sheath

278000231

$5.08

63

Wire Seal

278000218

$4.39

64

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

65

Wire Seal

278000218

$4.39

66

Male Terminal | XT Models

278000222

$3.19

67

Harness-Accessories (Not Shown)

278000606

Unavailable

68

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

69

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable
