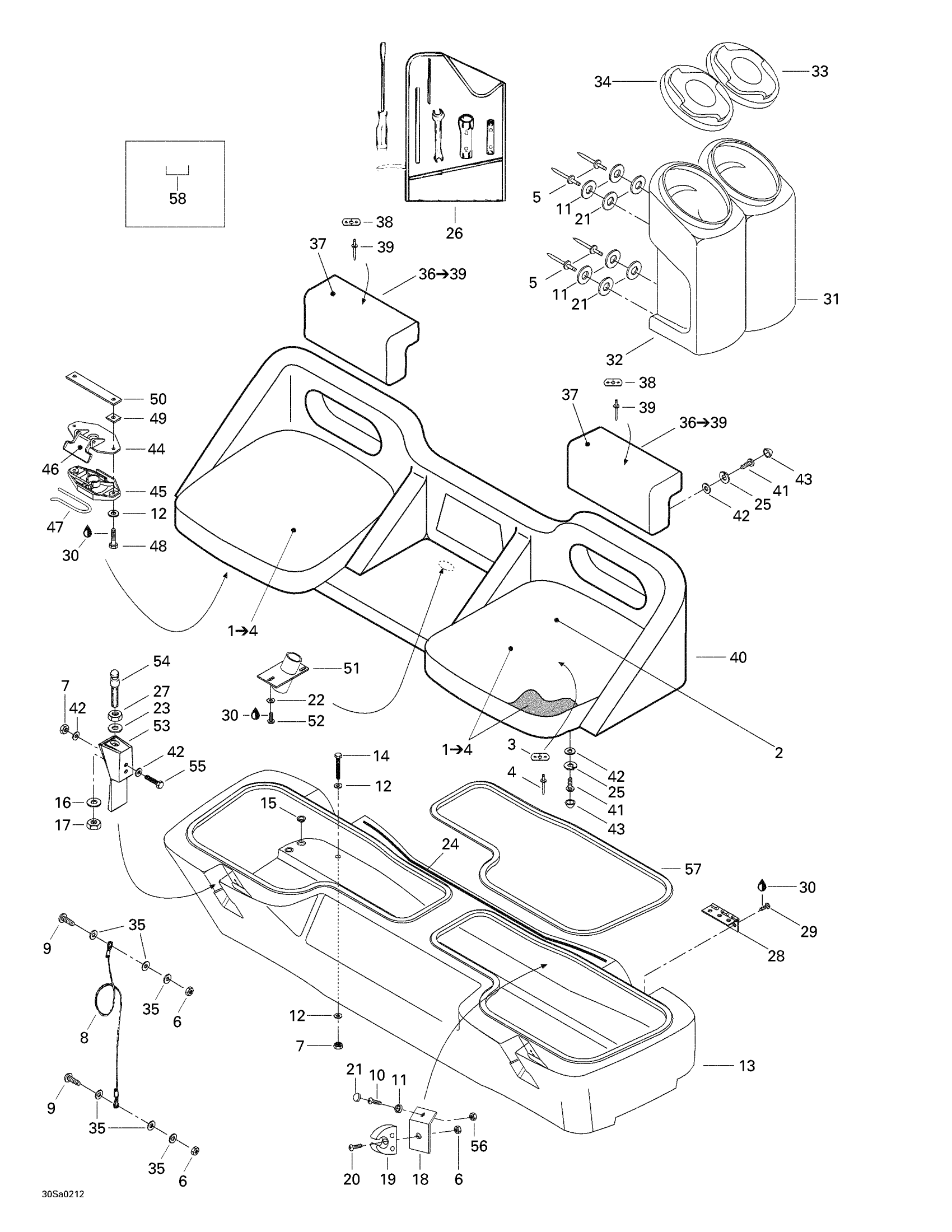

Sea-doo Explorer, 5455, 2002 Rear Seat And Storage Compartment Diagram

#

Description
Price

1

Rear Double Seat Ass'y | Includes 1 - 4.

204611504

Unavailable

2

Seat Cover

204611505

Unavailable

3

Spring Nut M5

204000065

Unavailable

4

Rivet 3/32"

204000080

Unavailable

5

Rivet 5/32

269150017

Unavailable

6

Hex. Elastic Nut M5 | X

232551600

$1.15

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

RETAINER CABLE - Call your local BRP dealership

204000117

Unavailable

9

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

10

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

11

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Rear Tray

291001115

Unavailable

14

Hex. Screw M6 X 35

207163560

$1.49

15

Black Plug

291000279

$7.69

16

Flat Washer 10 mm, Stainless

234002600

$2.22

17

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

18

Base Support

269500200

Unavailable

19

Pole Support

291000642

Unavailable

20

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

21

Snap Cap (White)

414576500

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.77

23

Flat Washer 10 mm, Stainless

234001600

$1.15

24

Was 293200017 Neoprene Seal

219704365

$149.99

25

Lock Washer Helical M6

234161601

$1.15

26

Tool Kit

295000066

Unavailable

27

Hex. Jam Nut M10

232100600

$2.22

28

Seat Hinge

269000125

Unavailable

29

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

32

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

33

Storage Cap

269500604

Unavailable

34

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

35

Flat Washer 5 mm, Stainless

234052600

$0.77

36

Backrest Ass'y | Includes 36 - 39.

204611506

Unavailable

37

Backrest Cover

204611507

Unavailable

38

Spring Nut M5

204000065

Unavailable

39

Rivet 3/32"

204000080

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

PHILLIPS TAPPING SCREW M6.3 X 25 - Call your local BRP dealership

209662560

Unavailable

42

Stainless Flat Washer M6

234061600

$0.33

43

Cap (1/2")

269000252

Unavailable

44

Latch Ass'y

269700109

$24.99

45

Latch Ass'y

269700109

$24.99

46

Latch Ass'y

269700109

$24.99

47

Latch Spring

269700017

$9.19

48

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

49

Shim-Spacer

269000254

Unavailable

50

Retainer Plate

269000243

Unavailable

51

Base-Rear Lamp

269000244

Unavailable

52

SCREW M5 X 10 - Call your local BRP dealership

208651060

Unavailable

53

Stud Support

204130016

Unavailable

54

Stud Latch

291000664

Unavailable

55

Hex. Forming Screw M6 X 20

207162060

$1.29

56

Elastic Stop Nut M4

232541600

$1.15

57

Seal Tray 1000Mm Long

219704368

$13.99

58

Staple

293730005

Unavailable
