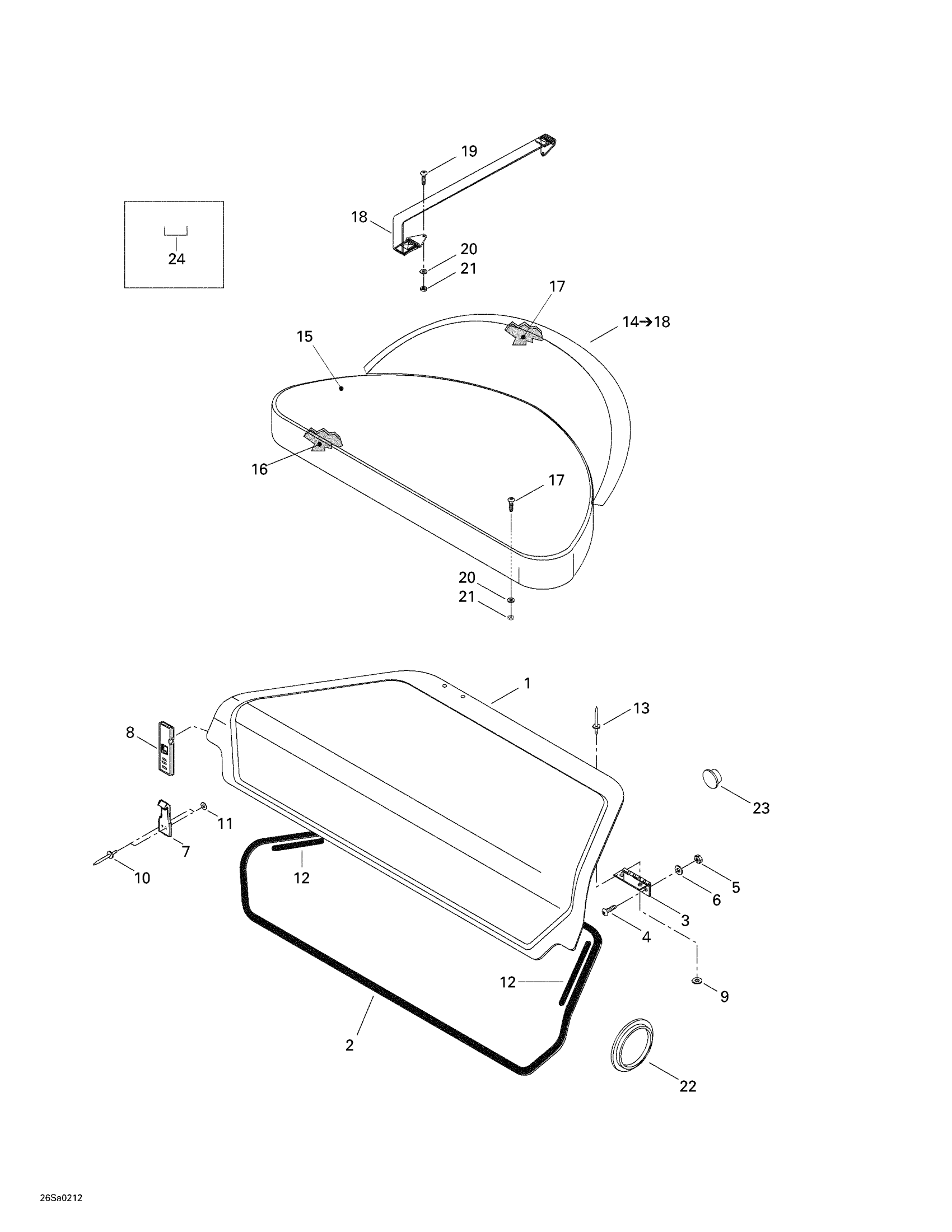

Sea-doo Explorer, 5455, 2002 Front Seat And Storage Cover Diagram

#

Description
Price

1

Front Storage Cover

204620221

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

5

Elastic Stop Nut M4

232541600

$1.15

6

Flat Washer 4 mm

234040600

$0.55

7

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

8

Latch (Female)

291000165

$20.99

9

Flat Washer M5, Stainless

234051600

$0.77

10

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

11

Flat Washer M3, Stainless

234032600

$0.55

12

Neoprene 1/4 x 3/8 (Meter)

204000094

Unavailable

13

Pop Rivet 3/16"

204000081

$1.49

14

Front Seat Assembly | Includes 14 - 18.

204611511

Unavailable

15

Seat Cover

204611512

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Front Backrest Foam

269000108

Unavailable

18

Strap

204611513

Unavailable

19

FLAT PHILLIPS SCREW M5 X 1 - Call your local BRP dealership

208451660

Unavailable

20

Flat Washer 5 mm, Stainless

234052600

$0.77

21

Hex. Elastic Nut M5 | X

232551600

$1.15

22

Bottom Pan Cap

570277400

Unavailable

23

Hunky Cap

293000030

Unavailable

24

Staple

293730005

Unavailable
