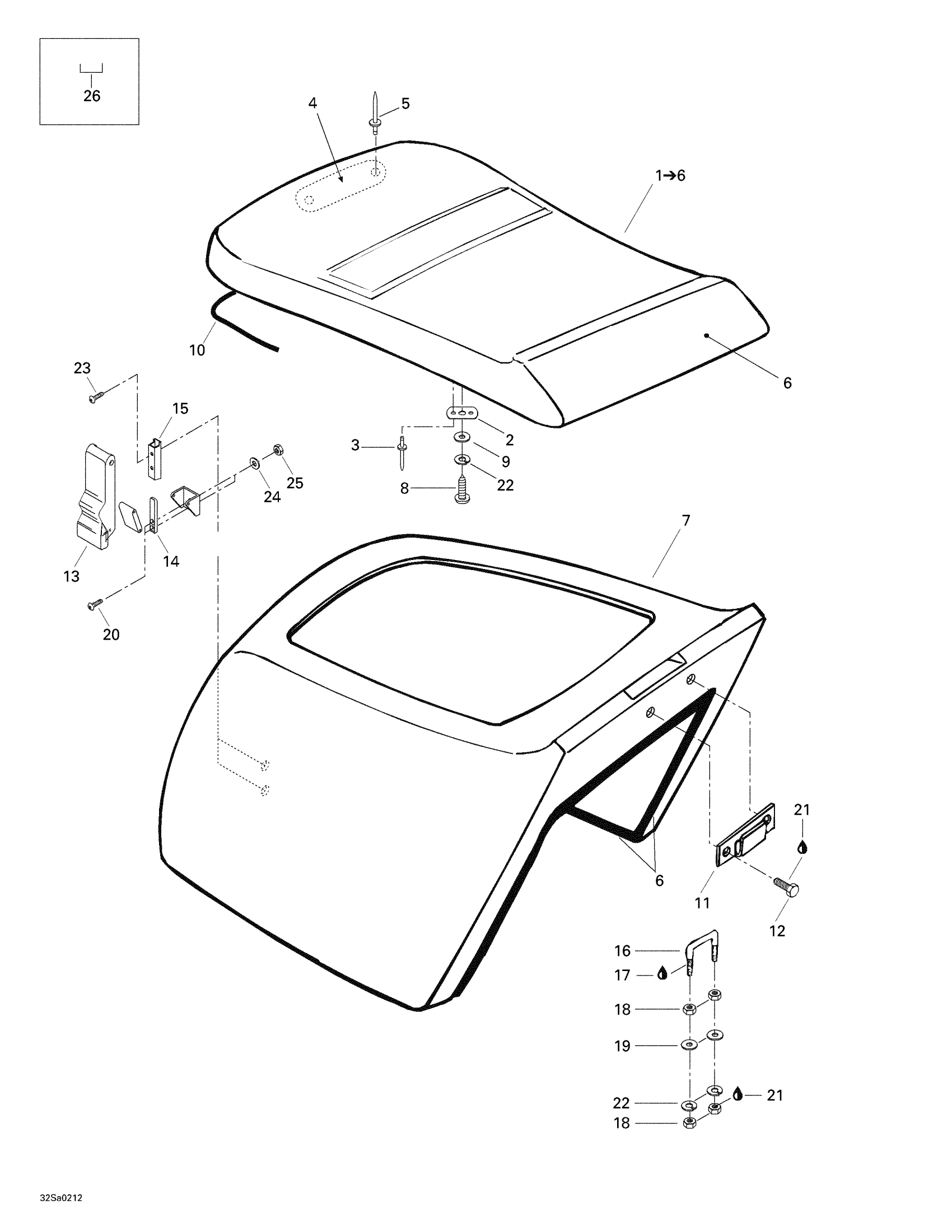

Sea-doo Explorer, 5455, 2002 Engine Cover And Seat Diagram

#

Description
Price

1

Driver Seat | Includes 1 - 6.

204611502

Unavailable

2

Spring Nut M5

204000065

Unavailable

3

Rivet 3/32"

204000080

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

6

Seat Cover

204611503

Unavailable

7

Seat Base / Engine Cover

269000202

Unavailable

8

Tapping Screw M6.3 X 32

209663260

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Seal Tray 1000Mm Long

219704368

$13.99

11

Base Keeper

291000174

$19.99

12

Hex. Forming Screw M6 X 20

207162060

$1.29

13

Seat Latch

269000124

Unavailable

14

Guide

269000145

Unavailable

15

Support

269000146

Unavailable

16

Hook

291000545

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

Hex. Nut M6

232061600

$1.15

19

Stainless Flat Washer M6

234061600

$0.33

20

Screw M5 x 25

208452560

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Lock Washer Helical M6

234161601

$1.15

23

SCREW M5 X 10 - Call your local BRP dealership

208651060

Unavailable

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

Hex. Elastic Nut M5 | X

232551600

$1.15

26

Staple

293730005

Unavailable
