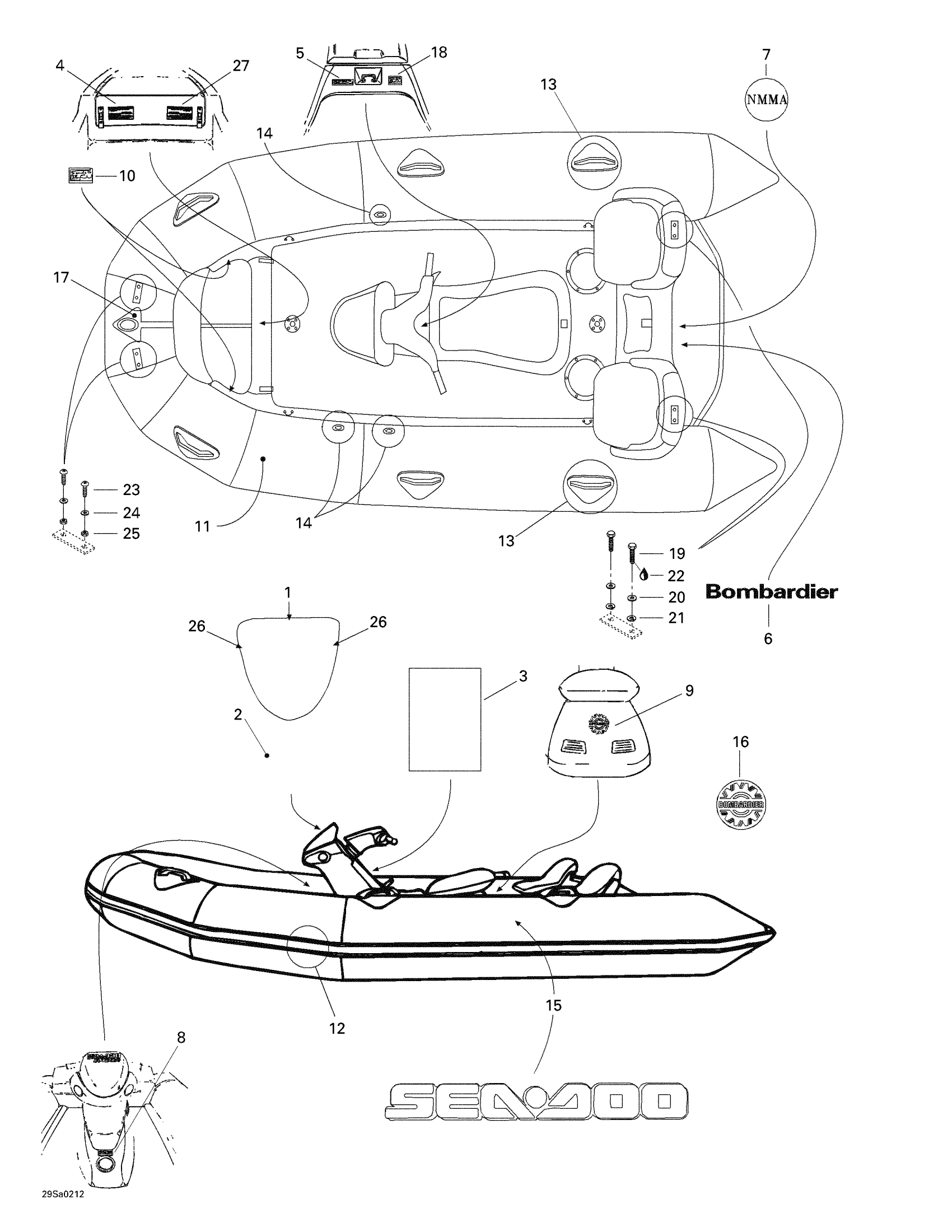

Sea-doo Explorer, 5455, 2002 09- Decals And Flottation Tube Diagram
#
Description
Price
1
Sea-Doo Explorer Decal
204901088
Unavailable
2
Dash Decal
204900921
Unavailable
3
CONSOLE DECAL - Call your local BRP dealership
204900929
Unavailable
4
Exemption Decal
204900932
Unavailable
5
Warning Decal (Battery)
219900965
Unavailable
6
Bombardier Decal
204900939
Unavailable
7
<< NMMA>> Decal
204900627
Unavailable
8
<< FUEL>> Label
219901209
Unavailable
9
Bombardier Logo, Rear
219901180
Unavailable
10
Warning Label, Bow Seat | (Bow Seat)
204900465
Unavailable
11
Flottation Tube Ass'y | Includes 11 - 16.
204050404
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Handle Grip
292000202
Unavailable
14
Valve
204000041
Unavailable
15
Sea-Doo Logo
204901087
Unavailable
16
Bombardier Decal
204900928
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Hex. Screw M6 X 30
207163060
$1.48
20
Flat Washer M6, Stainless
234062600
$0.77
21
Lock Washer Helical M6
234161601
$1.15
22
Loctite 243, 10 ml
293800060
$21.49
23
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
24
Stainless Flat Washer M6
234061600
$0.33
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Windshield Decal L.H
204900941
Unavailable
Windshield Decal R.H
204900942
Unavailable
27
Capacity Label
204900937
Unavailable
