Description

Price

1

CONSOLE - Call your local BRP dealership

204050406

Unavailable

2

Deflector

204050415

Unavailable

3

Fan Ass'y | Includes 44 to 47

204470108

$144.99

4

Snap-Cap

204000014

Unavailable

5

Cap Retainer

204000013

Unavailable

6

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

Unavailable

7

Tie Wrap 368 mm

293750008

$1.04

8

Loctite 243, 10 ml

293800060

$21.49

9

Tie-Rap 180 mm

414115200

$0.11

10

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

11

Vent (Right)

291000539

Unavailable

Vent (Left)

291000540

Unavailable

12

Neoprene 1/4 x 3/8 (Meter)

204000094

Unavailable

13

WASHER - Call your local BRP dealership

293150007

Unavailable

14

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

15

Flat Washer M3, Stainless

234032600

$0.55

16

Hex. Screw M6 X 50

207065060

$2.22

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Duct-Air Vent

237000005

Unavailable

20

Tie Rap

293750019

$3.29

21

Was 204050122 Vent Hose 4"

219704358

$25.99

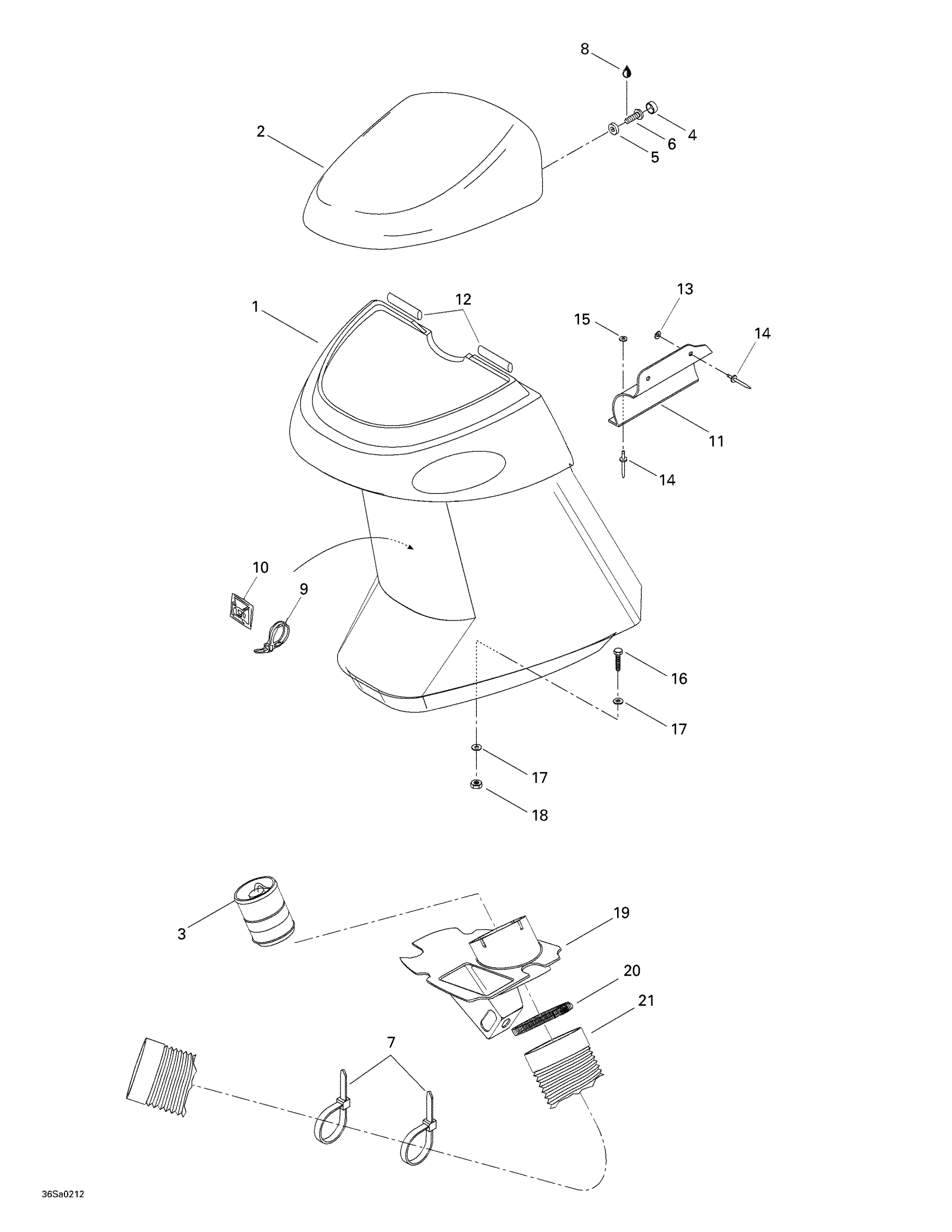

Sea-doo Explorer, 5455, 2002 09- Console Diagram

CONSOLE - Call your local BRP dealership

Deflector

Fan Ass'y | Includes 44 to 47

Snap-Cap

Cap Retainer

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

Tie Wrap 368 mm

Loctite 243, 10 ml

Tie-Rap 180 mm

TIE RAP MOUNT - Call your local BRP dealership

Vent (Right)

Vent (Left)

Neoprene 1/4 x 3/8 (Meter)

WASHER - Call your local BRP dealership

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

Flat Washer M3, Stainless

Hex. Screw M6 X 50

Flat Washer M6, Stainless

Hex. Elastic Stop Nut M6

Duct-Air Vent

Tie Rap

Was 204050122 Vent Hose 4"
