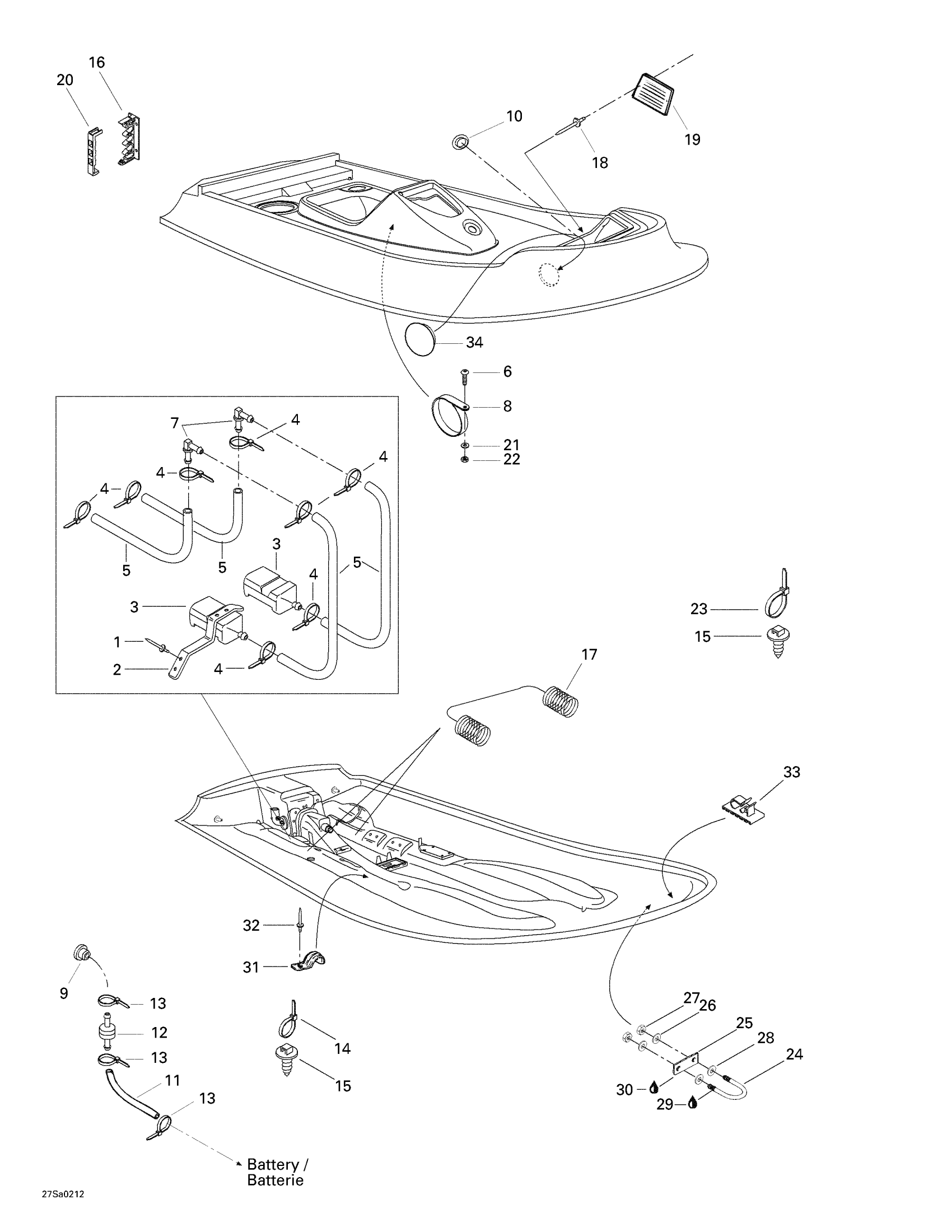

Sea-doo Explorer, 5455, 2002 09- Body And Accessories 2 Diagram
#
Description
Price
1
Pop Rivet 3/16"
293150008
$0.50
2
Spring Clip
292000392
Unavailable
3
Bailer Screen
292000688
Unavailable
4
Tie Wrap 94 mm | 4X4
293750001
$1.03
5
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
6
Screw M5 x 25
208452560
Unavailable
7
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
8
Clamp-Cable
204000064
Unavailable
9
Grommet
293720029
$1.59
10
Hunky Cap
293000030
Unavailable
11
Hose 6 Mm 15000Mm Long
219704360
$132.49
12
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
13
Tie Wrap 94 mm | 4X4
293750001
$1.03
14
Tie Wrap 142 mm
293750002
$1.25
15
Mount Dart
293730040
$1.04
16
Tie Mount Top
293750012
Unavailable
17
Flexible Hose 3" (Meter)
204000063
Unavailable
18
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
19
Rear Intake Grill (Black)
291000300
Unavailable
20
Tie Mount
293750013
Unavailable
21
Flat Washer M5, Stainless
234051600
$0.77
22
Hex. Elastic Nut M5 | X
232551600
$1.15
23
Tie Wrap 368 mm
293750008
$1.04
Tie-Rap 180 mm
414115200
$0.11
24
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
25
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
26
Lock Washer 8 mm, Stainless
234181601
$0.55
27
Hex. Nut M8
232081600
$1.47
28
Flat Washer M8.5 x 18
293050001
$3.07
29
Loctite 271, 10 ml
293800005
$26.99
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
Clip Cable
293750011
Unavailable
32
Rivet 1/8"
293150016
$0.40
33
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
34
Bottom Pan Cap
570277400
Unavailable
