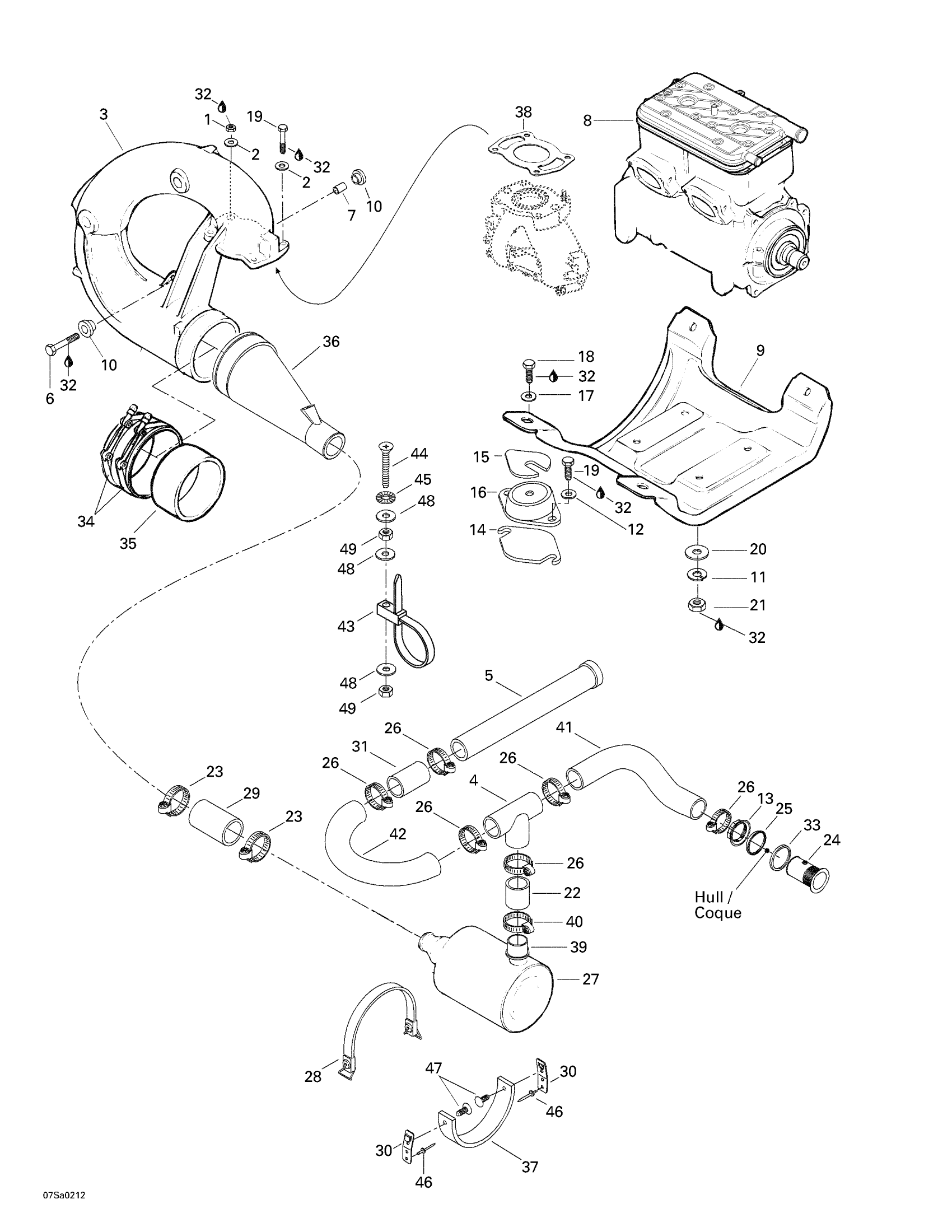

Sea-doo Explorer, 5455, 2002 01- Engine Support And Muffler Diagram
#
1
Hex. Nut M8
232081600
$1.47
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Tuned Pipe Ass'y
274000487
Unavailable
4
T Fitting
204340064
Unavailable
5
Resonateur
204340065
Unavailable
6
Hex. Screw M8 X 40
207084060
$2.22
7
Bushing
274000114
$8.85
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Engine Support
204250074
Unavailable
10
Rubber Bushing
293830031
Unavailable
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Nut 72 mm
274000224
$16.34
14
Shim 0.4 mm
270000006
Unavailable
Shim 1.3 mm
270000007
Unavailable
Shim 3.3 mm
270000143
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
22
Exhaust Hose
204340063
Unavailable
23
Norma Clamp
293650077
$7.41
24
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
25
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
26
Tridon Clamp
293650064
$8.29
27
Muffler
274000491
Unavailable
28
Retainer Strap
293850097
$11.64
29
Exhaust Hose
204340302
Unavailable
30
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
31
Sleeve
204340304
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
GASKET - Call your local BRP dealership
293250041
Unavailable
34
NORMA CLAMP - Call your local BRP dealership
293650068
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone Ass’Y
274000488
Unavailable
37
Rubber Pad
293830055
Unavailable
38
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
39
Hose Adaptor
274000383
Unavailable
40
Norma Clamp
293650079
$11.60
41
Exhaust Hose
204340296
Unavailable
42
Exhaust Hose Elbow
204340303
Unavailable
43
Tie-Rap
293750017
Unavailable
44
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
45
External Serrated Lock Washer 6 mm
234461608
$1.15
46
Avdel Rivet 3/16"
293150037
$0.56
47
Black, Dart
293730006
$0.99
48
Stainless Flat Washer M6
234061600
$0.33
49
Hex. Elastic Stop Nut M6
232561600
$1.15
