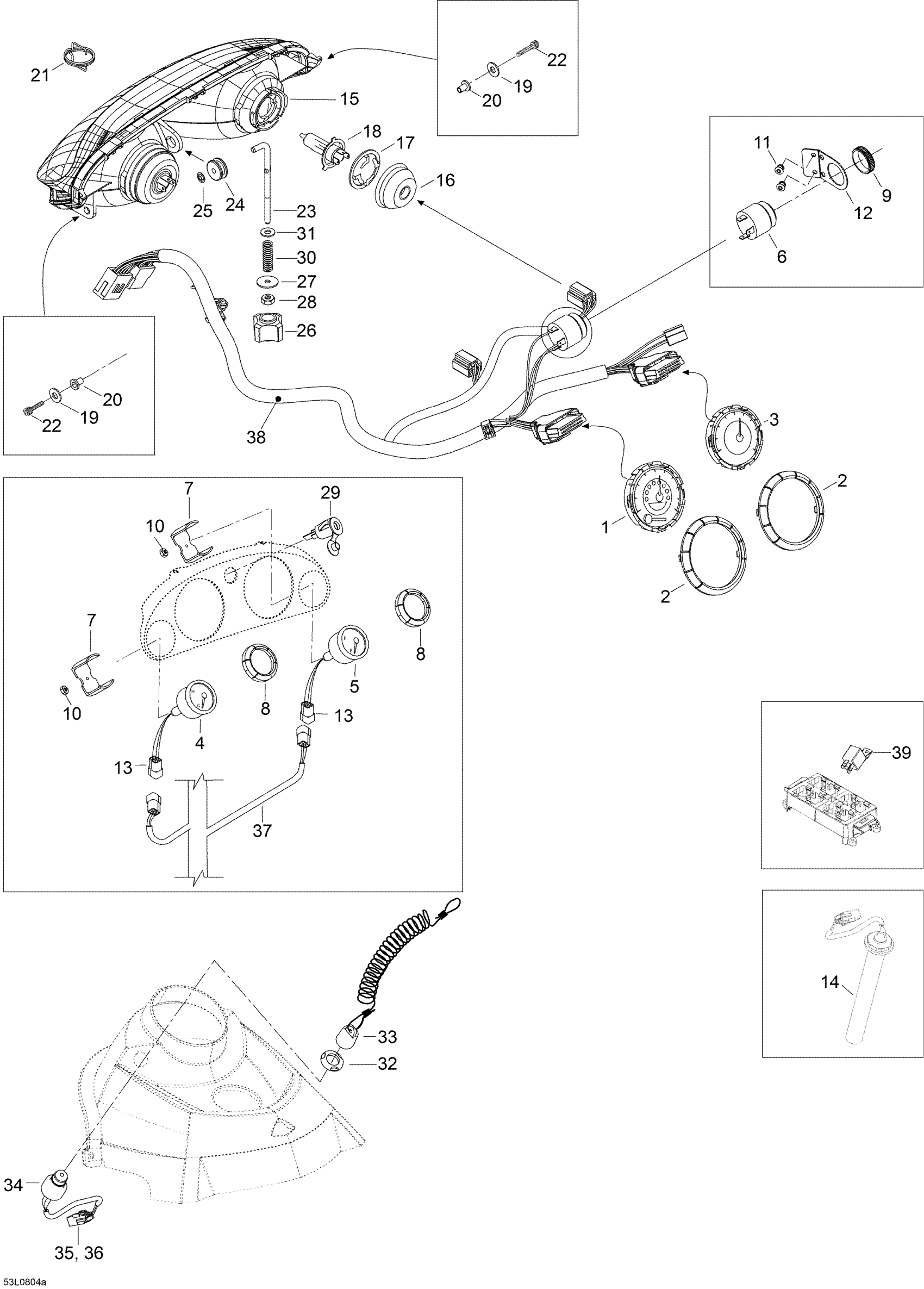

Ski-Doo Expedition V-1300, 2008 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

4

Temperature Gauge

515176214

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

6

HORN - Call your local BRP dealership

515176035

Unavailable

7

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

8

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

9

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

10

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

11

Rivet

36005

$2.11

12

Holder

M5447941

Unavailable

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

FUEL SENSOR - Call your local BRP dealership

605354909

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

COVER - Call your local BRP dealership

515175911

Unavailable

17

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

18

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

19

Washer 5,3 mm

20008

$0.74

20

NUT M5 - Call your local BRP dealership

250100018

$6.99

21

SPRING - Call your local BRP dealership

M5447238

Unavailable

22

Screw M5X35

M40235

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$2.19

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

WASHER - Call your local BRP dealership

M20038

Unavailable

28

Elastic Stop Nut M6

232561414

$0.55

29

Power outlet kit (Revo)

605352915

Unavailable

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

$1.36

32

Safety Nut (DESS Switch)

278002963

$3.28

33

DESS

515178284

$84.99

34

DESS Switch

515177249

$114.99

35

Male Terminal

515175232

$1.58

36

Male Housing, 3 Circuits

515175494

$16.18

37

HARNESS ASS'Y - Call your local BRP dealership

605354914

Unavailable

38

Harness Ass'y

605153275

Unavailable

39

Relais *Relay This part replaces 410113604.

515177672

$46.49
