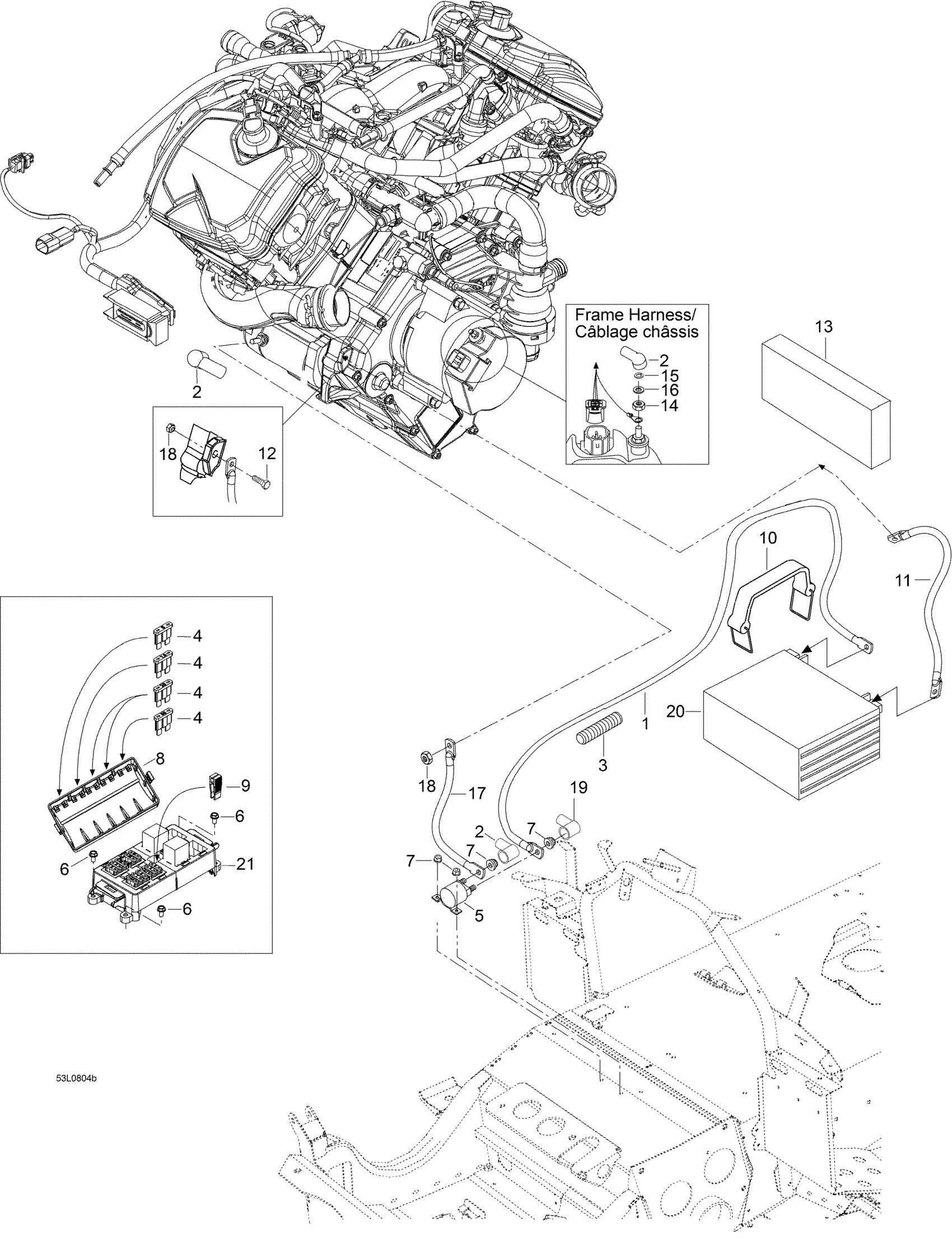

Ski-Doo Expedition V-1300, 2008 10- Electric Starter Diagram

#

Description
Price

1

BATTERY WIRE - Call your local BRP dealership

605355251

Unavailable

2

Protection Cap

570151000

$21.99

3

HOUSING - Call your local BRP dealership

M28015

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

4

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

4

Fuse, 20 Amperes

409003900

$3.28

4

Fuse, 30 Amperes

410917200

$3.28

4

Fuse 1 A

M42044

Unavailable

4

Little Fuse, 15 Ampere

710000745

$8.49

5

Starter Relay

515176011

$62.49

6

Hex. Forming Screw M5 X 16

210251650

$1.15

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

COVER - Call your local BRP dealership

515176066

Unavailable

9

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

10

STEEL STRIP - Call your local BRP dealership

605352573

Unavailable

11

GROUND WIRE - Call your local BRP dealership

605455189

Unavailable

12

Socket Head Screw M6 X 20

M40052

Unavailable

13

COVER - Call your local BRP dealership

605352572

Unavailable

14

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

15

Hex. Nut M6

232061414

$0.53

16

Lock Washer M6, Black

234161471

$0.53

17

BATTERY WIRE - Call your local BRP dealership

605355251

Unavailable

18

Elastic Stop Nut M6

232561414

$0.55

19

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

20

Battery, 12 Volts, 21 Amperes

410922962

$194.99

21

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable
