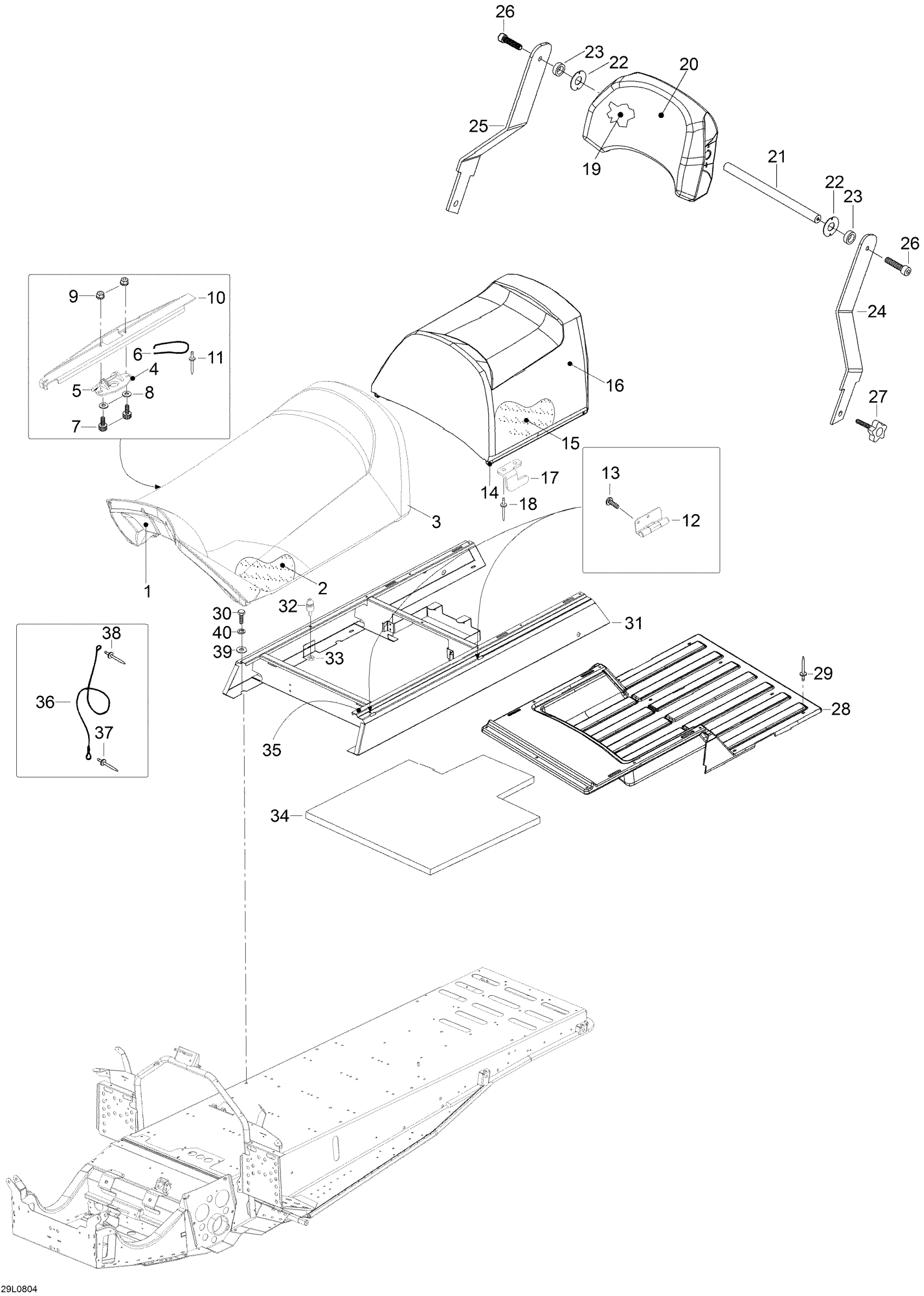

Ski-Doo Expedition V-1300, 2008 09- Seat Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

$449.99

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet

M36088

Unavailable

12

Hinge

605351798

$42.99

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT COVER - Call your local BRP dealership

605254496

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$1.04

19

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

20

BACKREST COVER - Call your local BRP dealership

605355498

Unavailable

21

BACKREST AXLE - Call your local BRP dealership

605355357

$63.99

22

WASHER - Call your local BRP dealership

605355358

Unavailable

23

Rubber Shim

510004378

$10.99

24

LH ARM - Call your local BRP dealership

605355499

Unavailable

25

RH ARM - Call your local BRP dealership

605355500

Unavailable

26

SCREW M10X20 - Call your local BRP dealership

605640010

Unavailable

27

HANDLE M8 X 35 - Call your local BRP dealership

605640015

Unavailable

28

TUNNEL COVER - Call your local BRP dealership

605355484

Unavailable

29

Black, Rivet

M36036

$1.69

30

Hex. Screw M6 X 16

207161644

$0.74

31

SEAT BASE - Call your local BRP dealership

605254706

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

$24.99

33

Elastic Stop Nut M6

232561414

$0.55

34

FOAM - Call your local BRP dealership

605352460

Unavailable

35

Sealing Strip

M28413

Unavailable

36

Seat Retainer Cable

293750070

$12.99

37

Black Rivet

36037

$1.48

38

Rivet

M36489

Unavailable

39

Flat Washer 6 mm

234062410

$0.77

40

Lock Washer M6, Black

234161471

$0.53
