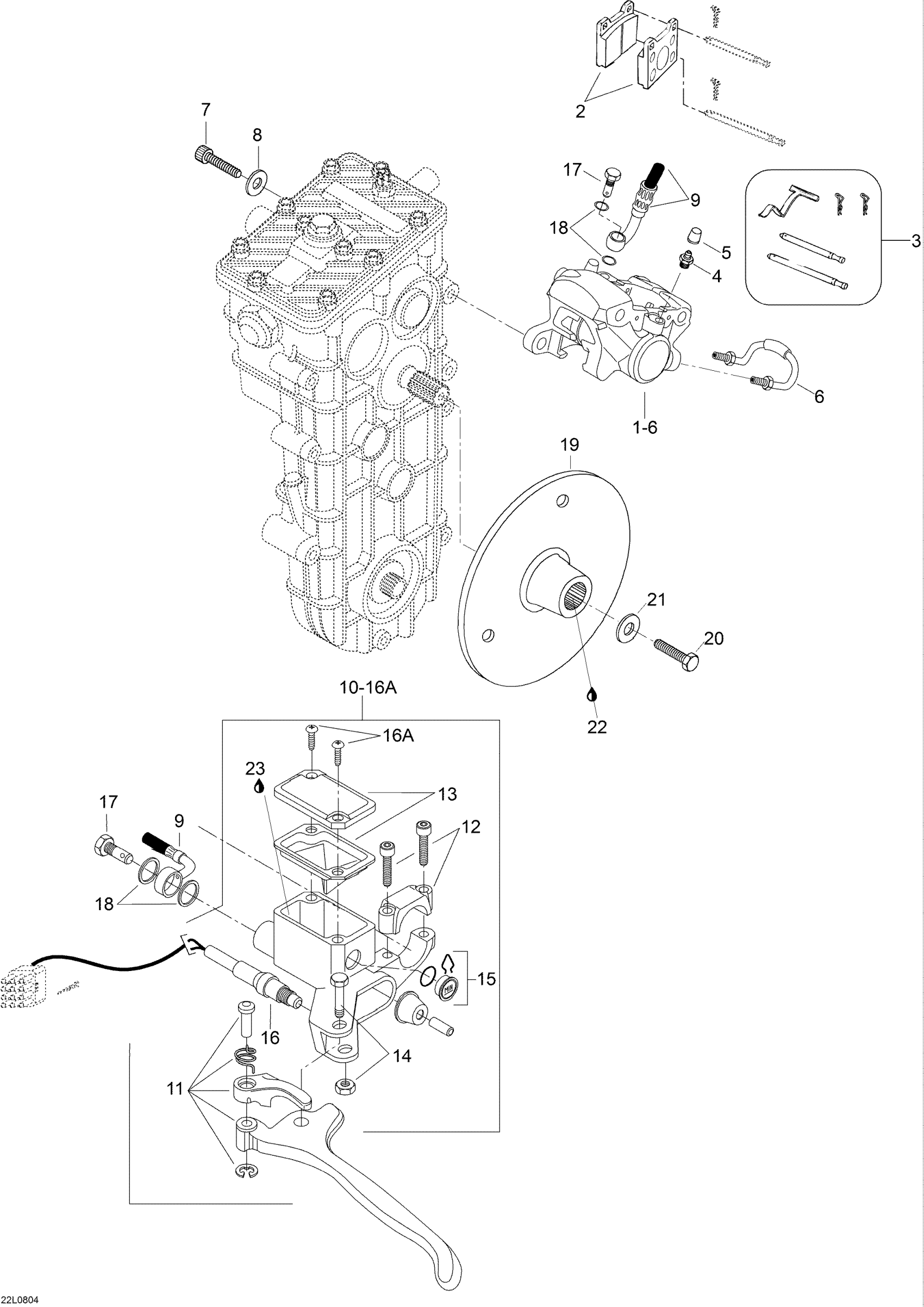

Ski-Doo Expedition V-1300, 2008 Hydraulic Brake Diagram

#

Description
Price

1

Caliper | Includes 1 to 6

507032409

Unavailable

2

Brake Pad Kit

415084600

$73.85

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

415128865

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

8

Lock Washer D10

20068

$1.91

9

HOSE - Call your local BRP dealership

507032237

Unavailable

10

Master Cylinder | Includes 10 to 16

507032362

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp And Screw Kit

507032477

$22.36

13

Cap

415029900

$38.78

14

Pin Ass'y

415030000

$17.13

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Microswitch

507032366

$101.46

16A

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

17

Banjo Bolt

414920500

$8.24

18

Washer

414920600

$1.75

19

Brake Disc

605353250

$189.52

20

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

21

Washer

M546336

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable
