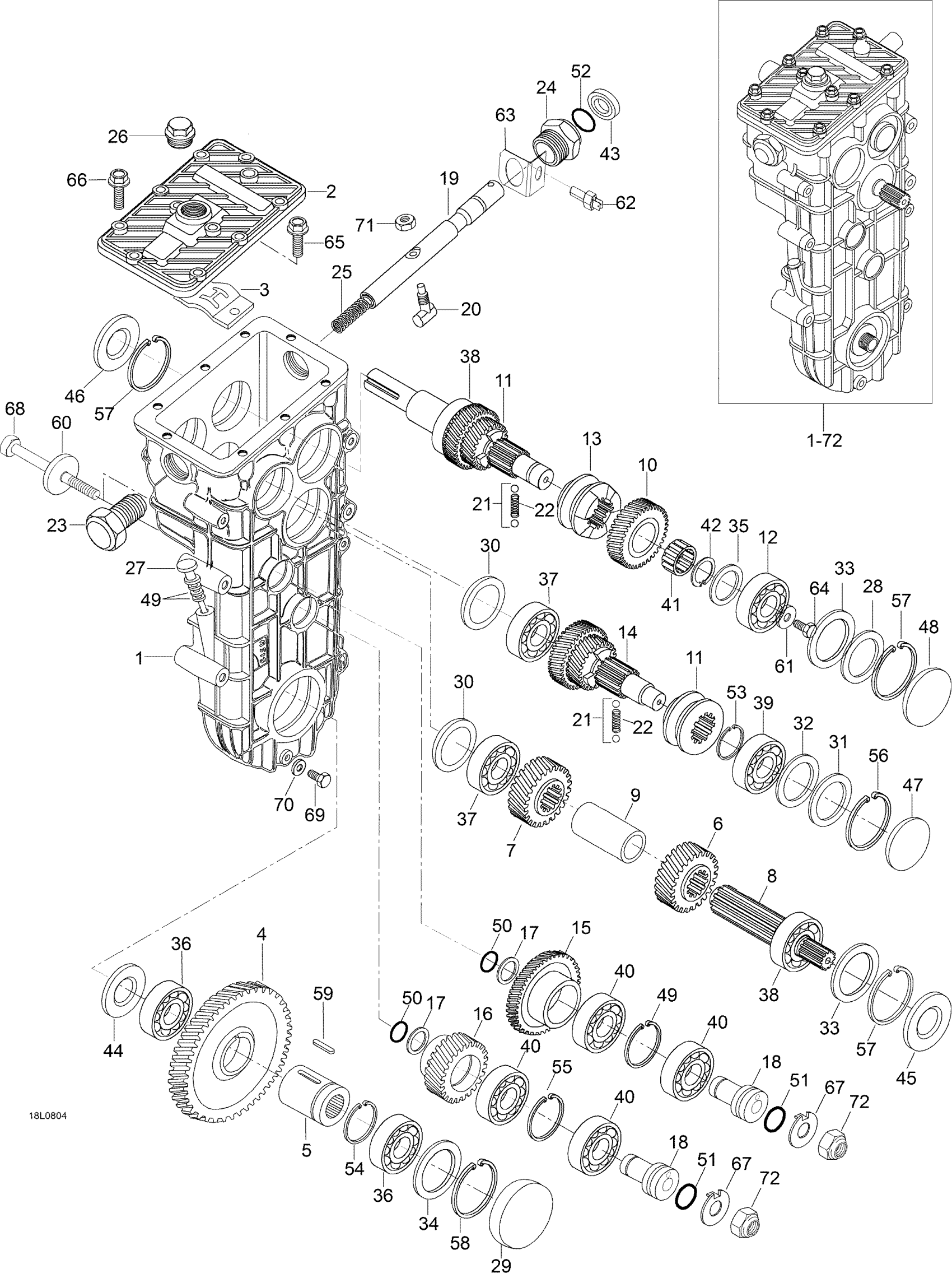

Ski-Doo Expedition V-1300, 2008 05- Transmission Diagram

#

Description
Price

-

Vaihteisto (1,89 HP) (870156343) | Includes 1 to 72

605612006

Unavailable

1

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Sprocket 53 Th

M875156114

Unavailable

5

SHAFT - Call your local BRP dealership

M875156218

Unavailable

6

Gear Z=29 - Call your local BRP dealership

875156276

Unavailable

7

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

8

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

9

SLEEVE - Call your local BRP dealership

M875156087

Unavailable

10

Sprocket 28 Th

M875156115

Unavailable

11

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

12

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

13

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

14

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

15

SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.

875156050

Unavailable

16

SPROCKET 31 TH - Call your local BRP dealership

M875156049

Unavailable

17

Washer - Call your local BRP dealership This part replaces M875156328.

875156328

Unavailable

18

SHAFT - Call your local BRP dealership

619230005

Unavailable

19

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

20

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

21

Ball This part replaces M616810064.

616810064

$26.99

22

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

23

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

24

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

25

Spring This part replaces M875156078.

875156078

$109.99

26

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

27

DIPSTICK - Call your local BRP dealership This part replaces M875156278.

875156278

Unavailable

28

Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067.

617395067

Unavailable

29

Plug - Call your local BRP dealership This part replaces M614100068.

614100068

Unavailable

30

Plug This part replaces M875152953.

875152953

$42.99

31

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

$15.49

32

Shim

M617394252

Unavailable

33

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

34

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

35

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

36

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

37

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

38

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

39

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

40

BEARING - Call your local BRP dealership This part replaces M612030303.

612030303

Unavailable

41

Needle bearing This part replaces M611002529.

611002529

$27.49

42

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

43

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

44

Oil seal This part replaces M614102852.

614102852

$25.99

45

Oil seal This part replaces M614102562.

614102562

$51.99

46

Oil seal This part replaces M614103562.

614103562

$52.99

47

Plug This part replaces M614100052.

614100052

$28.49

48

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

49

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

50

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

51

O-ring This part replaces M614602431.

614602431

$11.60

52

O-ring This part replaces M614601523.

614601523

$11.60

53

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

54

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

55

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

56

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

57

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

58

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

59

KEY - Call your local BRP dealership

M603345080

Unavailable

60

WASHER - Call your local BRP dealership

619230004

Unavailable

61

WASHER - Call your local BRP dealership

M875156112

Unavailable

62

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

63

BRACKET - Call your local BRP dealership

M875156242

Unavailable

64

Hex. Screw M8 X 20

207182044

$0.74

65

Screw

M534801362

Unavailable

66

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

67

Washer - Call your local BRP dealership This part replaces M875156327.

875156327

Unavailable

68

SCREW - Call your local BRP dealership

619230003

Unavailable

69

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

70

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

71

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

72

NUT M10 - Call your local BRP dealership This part replaces M510600802.

510600802

Unavailable
