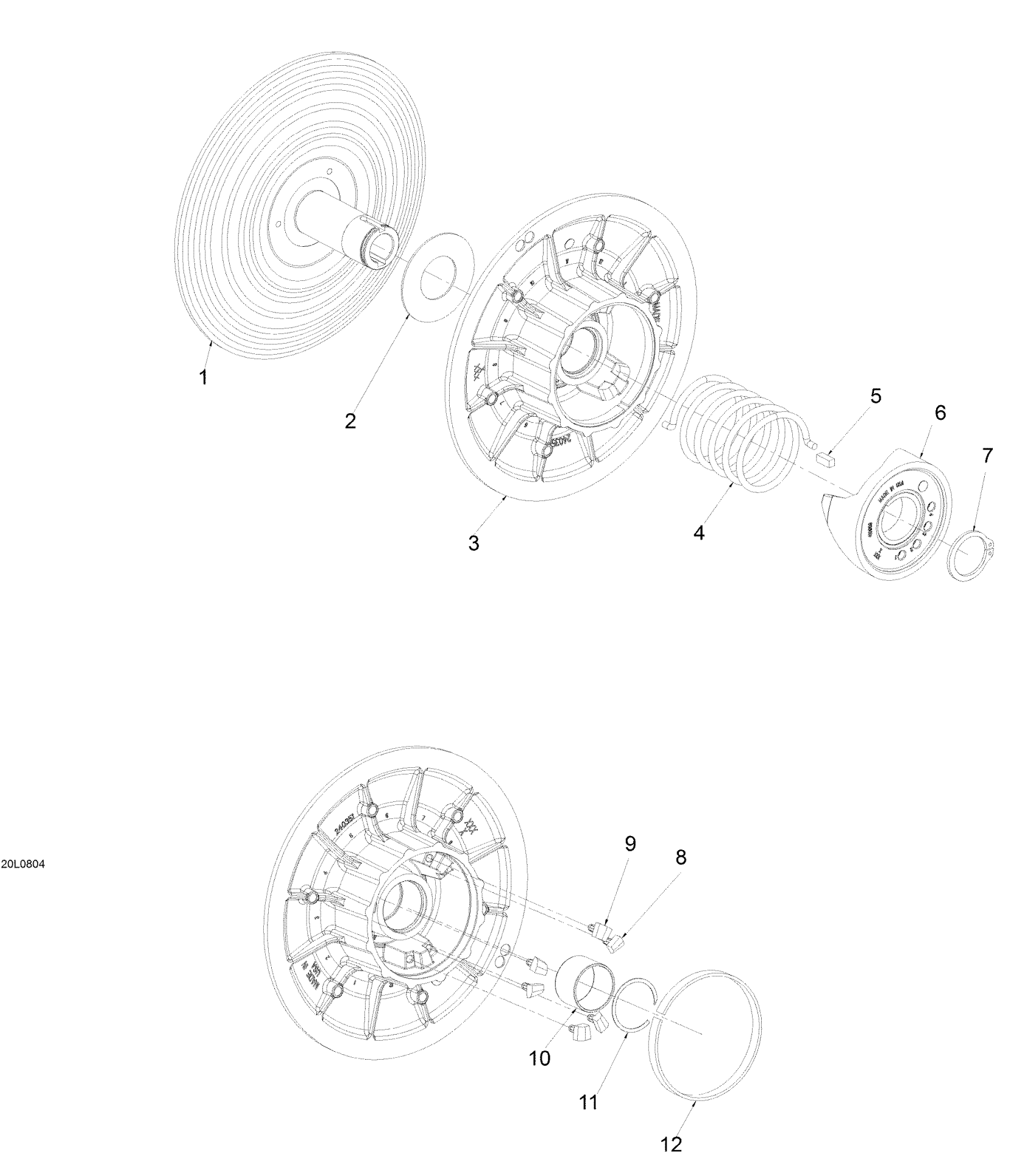

Ski-Doo Expedition V-1300, 2008 Driven Pulley Diagram

#

Description
Price

1

FIXED FLANGE - Call your local BRP dealership

619100024

Unavailable

2

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

3

Sliding Flange Ass'y

619100026

$439.99

4

Spring

619100037

Unavailable

5

KEY - Call your local BRP dealership

619100028

Unavailable

6

CAM 35/30 DEGR. - Call your local BRP dealership

619100036

Unavailable

7

CIRCLIP - Call your local BRP dealership

619100027

Unavailable

8

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

9

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

10

Bearing, plain - Call your local BRP dealership

619100032

$21.99

11

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

12

Bearing, plain - Call your local BRP dealership

619100034

Unavailable
