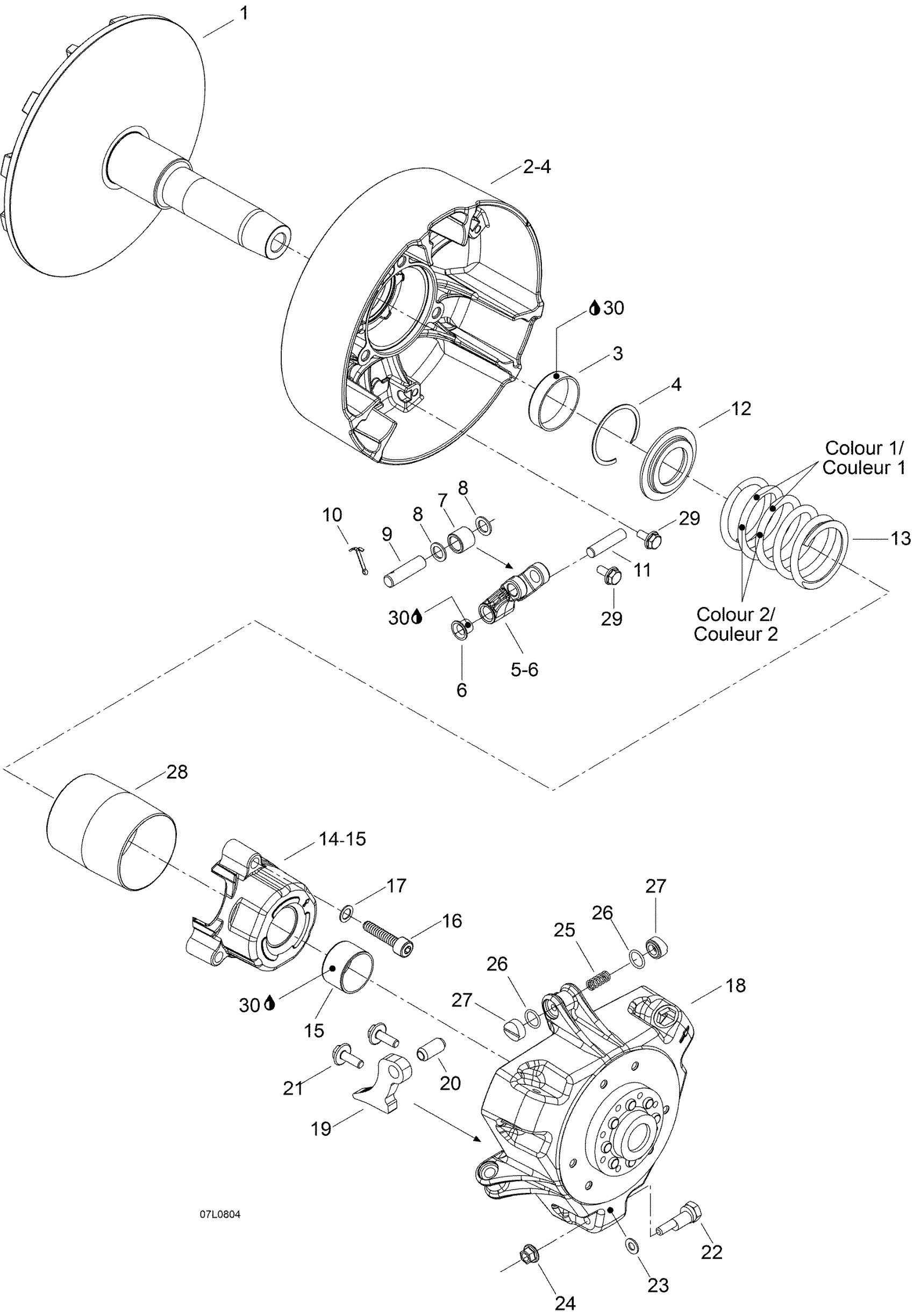

Ski-Doo Expedition V-1300, 2008 Drive Pulley Diagram

#

Description
Price

-

Not Available As Spare Part - Friction Washer

Unavailable

1

Fixed Flange Ass'y

417222743

Unavailable

2

Sliding Flange Ass'y

417223093

$313.40

3

Bushing

417222758

$20.12

4

Circlip

293370037

$2.93

5

Lever Ass'y | Includes 5 to 6

605354281

Unavailable

6

Bushing

417004305

$8.76

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417004308

$12.79

10

Pin Screw

417222813

$20.12

11

LEVER PIN - Call your local BRP dealership

605354282

$20.12

12

Seat Spring

417222745

Unavailable

13

Tra Spring

414993000

$52.96

14

Spring Cover Ass'y | Includes 14 to 15

417222746

Unavailable

15

Bushing

417009204

$15.64

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

17

Lock Washer 8 mm

250200009

$2.00

18

Governor Cup Ass'y.

417222729

Unavailable

19

RAMP, 607 HR - Call your local BRP dealership

605254091

Unavailable

20

Spring Pin M10 X 22

250400050

$2.73

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

22

Calibration screw

417222695

Unavailable

23

FLAT WASHER - Call your local BRP dealership

420827305

Unavailable

24

Hex. Flange Nut M6

233061414

$1.54

25

Spring

417005700

$4.51

26

O-Ring

732401030

$0.93

27

Slider Shoe This part replaces 420460045.

417223021

$5.99

28

Guard

417009205

$16.39

29

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

30

Loctite 609, 10 ml

413703100

$23.85
