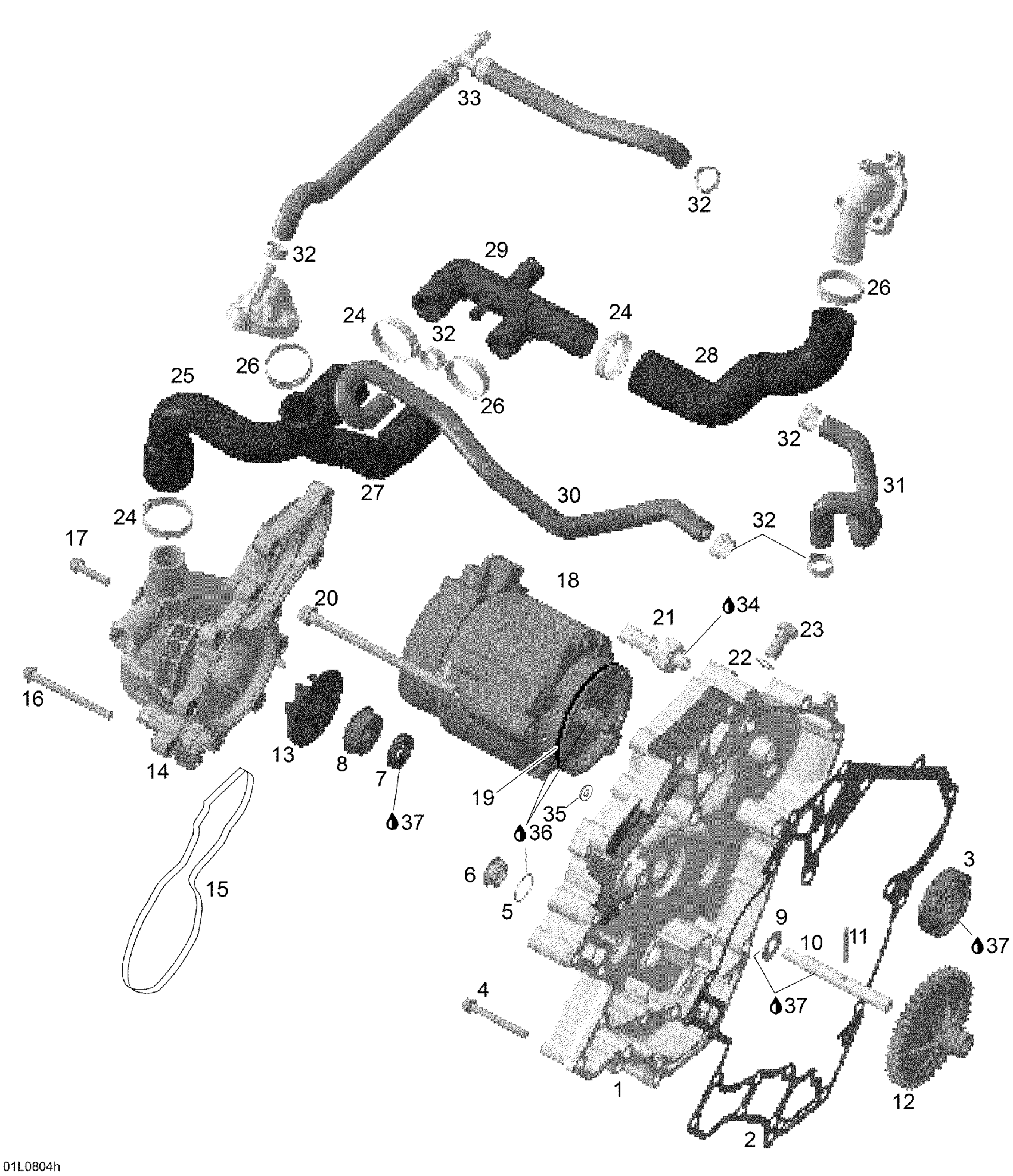

Ski-Doo Expedition V-1300, 2008 01- Waterpump And Alternator Diagram

#

Description
Price

1

IGNITION COVER - Call your local BRP dealership

420811663

Unavailable

2

GASKET - Call your local BRP dealership

420950590

Unavailable

3

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

4

Torx Flange Screw M6 X 45

420440324

$0.98

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Oil Seal

420650315

$11.65

8

Rotary Seal

420650371

$43.49

9

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

10

WATERPUMP SHAFT - Call your local BRP dealership

420837485

Unavailable

11

Needle Pin

420232431

$4.39

12

WATERPUMP GEAR, 41 TEETH - Call your local BRP dealership

420834460

Unavailable

13

Impeller

420222501

$21.99

14

WATERPUMP HOUSING - Call your local BRP dealership

420811605

Unavailable

15

O-RING - Call your local BRP dealership

420950500

Unavailable

16

Hex. Flange Screw M6 X 65

420440602

$6.39

17

Torx Flange Screw M6 X 25

420440234

$3.06

18

ALTERNATOR, 40 AMPERES - Call your local BRP dealership

420296460

Unavailable

19

O-RING - Call your local BRP dealership

420850430

Unavailable

20

HEX. SCREW M8 X 119 - Call your local BRP dealership

420941651

Unavailable

21

Oil Pressure Switch

420856537

$45.99

22

Oil Seal

420230150

$2.85

23

Banjo Bolt M10 X 19

420940874

$14.83

24

CLAMP - Call your local BRP dealership

420853173

Unavailable

25

MOLDED HOSE - Call your local BRP dealership

420922180

Unavailable

26

Clamp

420853163

$10.33

27

MOLDED HOSE - Call your local BRP dealership

420922745

Unavailable

28

MOLDED HOSE - Call your local BRP dealership

420922740

Unavailable

29

ELBOW FITTING - Call your local BRP dealership

420922280

Unavailable

30

MOLDED HOSE - Call your local BRP dealership

420822090

Unavailable

31

MOLDED HOSE - Call your local BRP dealership

420822092

Unavailable

32

Oetiker Clamp

293650125

$3.29

33

HOSE ASS'Y - Call your local BRP dealership

420660881

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Thrust Washer

420227945

$4.01

36

Grease, Super Lube

293550030

$28.99

37

Synth Oil 4T 12x1

293600054

Unavailable
