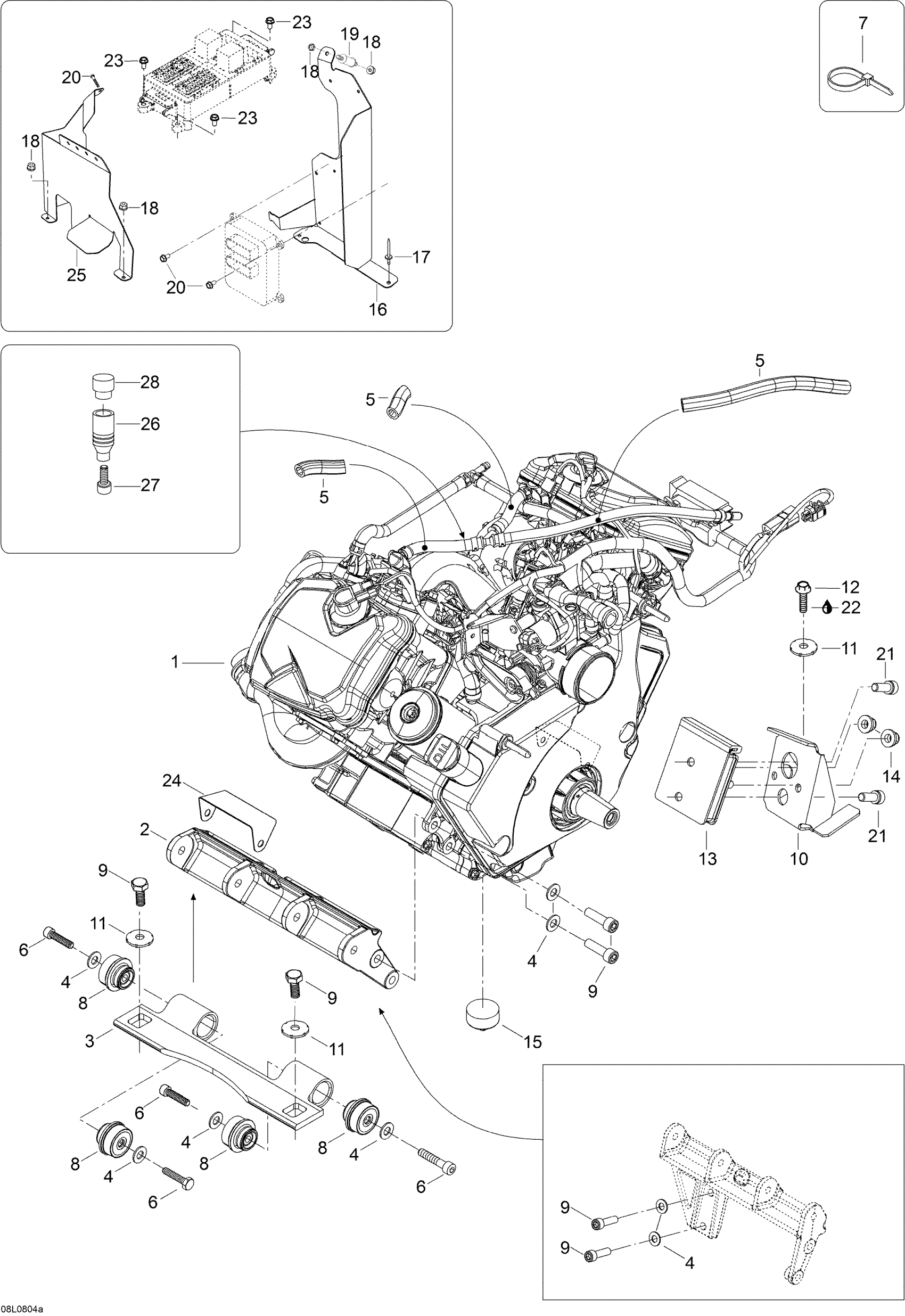

Ski-Doo Expedition V-1300, 2008 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine

361304190

Unavailable

2

ENGINE MOUNT. PLATE - Call your local BRP dealership

605250905

Unavailable

3

FRONT ENGINE SUPPORT - Call your local BRP dealership

512059425

Unavailable

4

WASHER M10 - Call your local BRP dealership

20005

Unavailable

5

Was M27127 Tubing

219704355

$23.49

6

Socket Screw M10 X 35

205003544

$1.69

7

Tie-Rap 180 mm

414115200

$0.11

8

Rubber Mount

512059691

$47.99

9

Hex. Screw M10 X 30

207103044

$1.48

10

ENGINE REAR SUPPORT - Call your local BRP dealership

605350835

Unavailable

11

Lock Washer

512056700

$3.17

12

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

13

Rubber Mount

512059958

Unavailable

14

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

15

STOPPER - Call your local BRP dealership

512059710

Unavailable

16

MODULE SUPPORT - Call your local BRP dealership

605250844

Unavailable

17

Rivet

36108

$1.90

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

RUBBER MOUNT - Call your local BRP dealership

M12419

Unavailable

20

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

21

Screw

M40053

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Hex. Forming Screw M5 X 16

210251650

$1.15

24

Front Deflector

514053620

Unavailable

25

Temperature Shield

605351330

Unavailable

26

SUPPORT - Call your local BRP dealership

605350745

Unavailable

27

Screw

M40053

Unavailable

28

Rubber Bumper

570044700

$13.10
