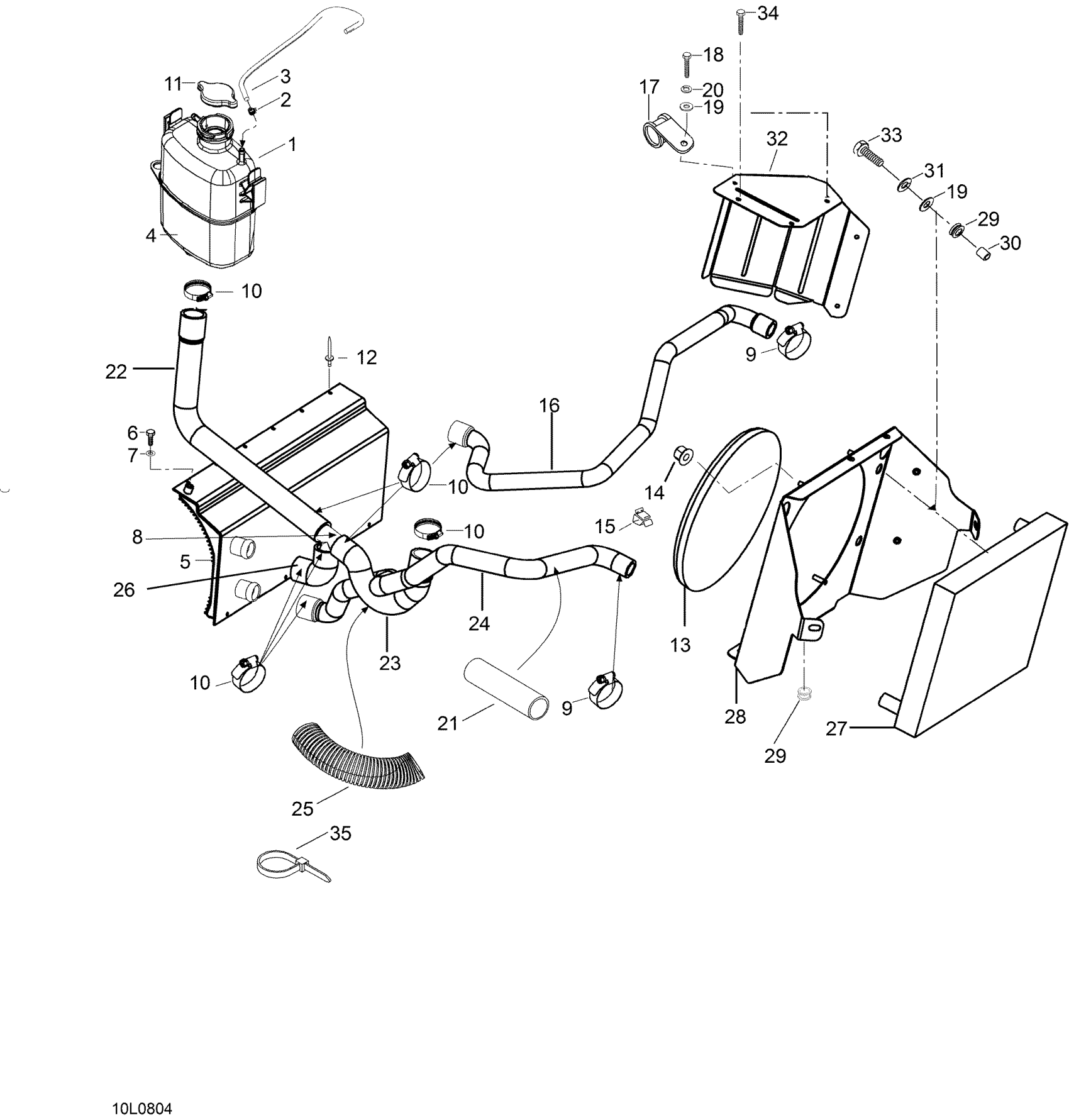

Ski-Doo Expedition V-1300, 2008 01- Cooling System Diagram

#

Description
Price

1

Coolant Tank

276000086

$109.99

2

Clamp

605627003

Unavailable

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

REFLECTIVE SHEET - Call your local BRP dealership

M44110

Unavailable

5

Radiator

605253699

$720.49

6

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

7

Seal

M20041

Unavailable

8

T-Fitting

509000219

$15.89

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

10

CLAMP - Call your local BRP dealership

605627002

Unavailable

11

Radiator Pressure Cap

509000180

$20.49

12

Rivet

36108

$1.90

13

AXAIL MOTOR FA SPAL 225 - Call your local BRP dealership

M42091

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Clip

414227300

$1.67

16

WATER HOSE - Call your local BRP dealership

605354195

Unavailable

17

CLAMP - Call your local BRP dealership

M27039

Unavailable

18

Hex. Screw M6 X 16

207161644

$0.74

19

Flat Washer 6 mm

234062410

$0.77

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

TUBING - Call your local BRP dealership

M39062

Unavailable

22

HOSE - Call your local BRP dealership

605253689

Unavailable

23

HOSE - Call your local BRP dealership

605353907

Unavailable

24

HOSE - Call your local BRP dealership

605354194

Unavailable

25

Tubing

M28036

Unavailable

26

HOSE - Call your local BRP dealership

605354450

Unavailable

27

RADIATOR 250 - Call your local BRP dealership

605353238

Unavailable

28

SUPPORT - Call your local BRP dealership

605253698

Unavailable

29

Grommet

709000582

$4.69

30

Bushing

605453745

$13.16

31

Lock Washer M6, Black

234161471

$0.53

32

DEFLECTOR PLATE - Call your local BRP dealership

605254458

Unavailable

33

Hex. Forming Screw M5 X 16

210251650

$1.15

34

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

35

Tie-Rap 180 mm

414115200

$0.11
