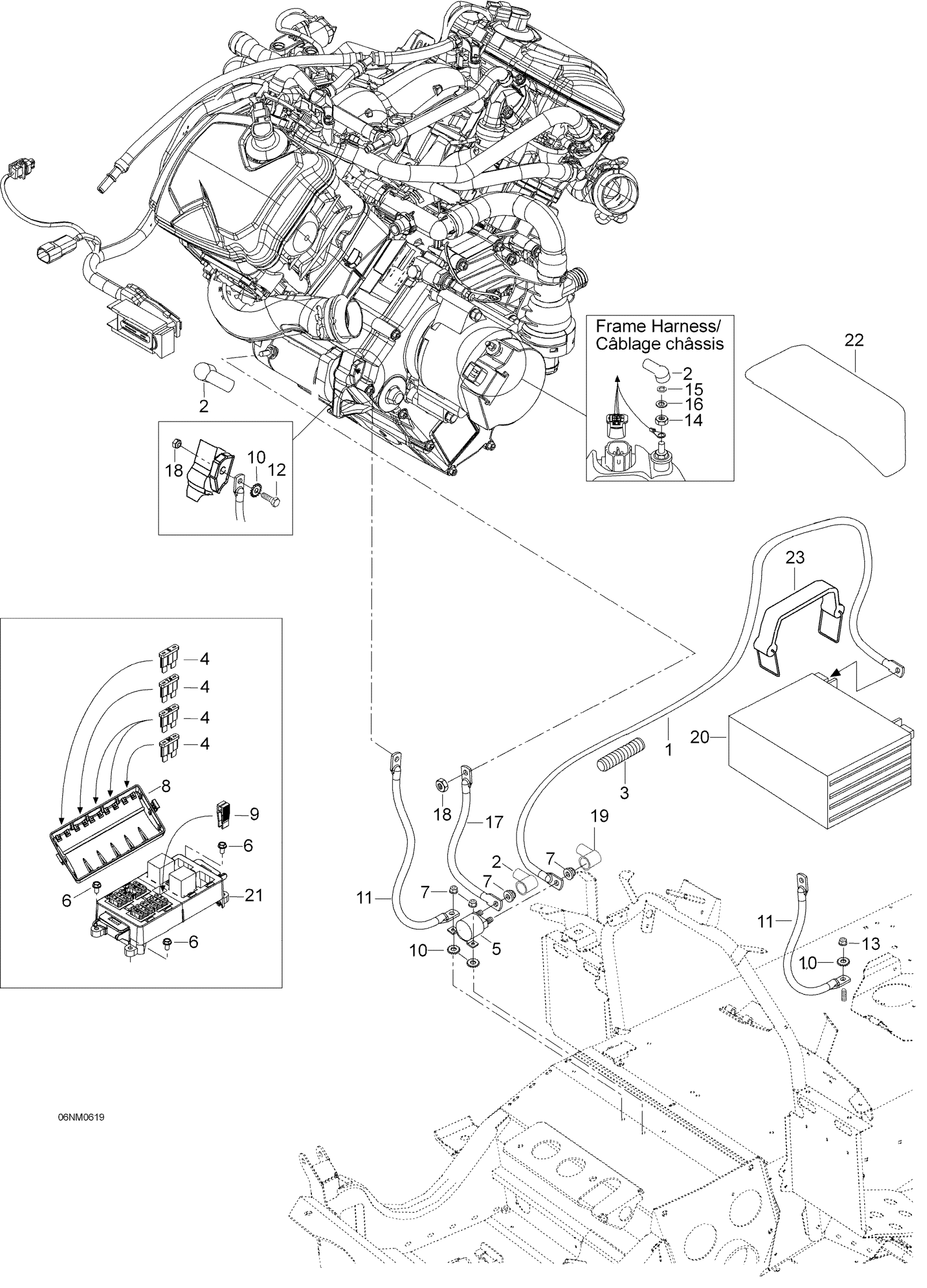

Ski-Doo Expedition V-1000, 2006 Electrical Accessories 2 Diagram

#

Description
Price

1

Battery Wire

605151524

Unavailable

2

Protection Cap

570151000

$21.99

3

HOUSING - Call your local BRP dealership

M28012

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

4

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

4

Fuse, 20 Amperes

409003900

$3.28

4

Fuse, 30 Amperes

410917200

$3.28

4

Fuse 1 A

M42044

Unavailable

4

Little Fuse, 15 Ampere

710000745

$8.49

5

Starter Relay

515176011

$62.49

6

Hex. Forming Screw M5 X 16

210251650

$1.15

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

COVER - Call your local BRP dealership

515176066

Unavailable

9

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

10

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

11

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

13

Elastic Stop Nut M6

232561414

$0.55

14

Hex. Nut M6

232061414

$0.53

15

Lock Washer M6, Black

234161471

$0.53

16

Flat Washer 6 mm

234061410

$1.36

17

Battery Wire

515175793

Unavailable

18

Elastic Stop Nut M6

232561414

$0.55

19

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

20

Battery, 12 Volts, 21 Amperes

410922962

$194.99

21

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

22

COVER - Call your local BRP dealership

605352572

Unavailable

23

STEEL STRIP - Call your local BRP dealership

605352573

Unavailable
