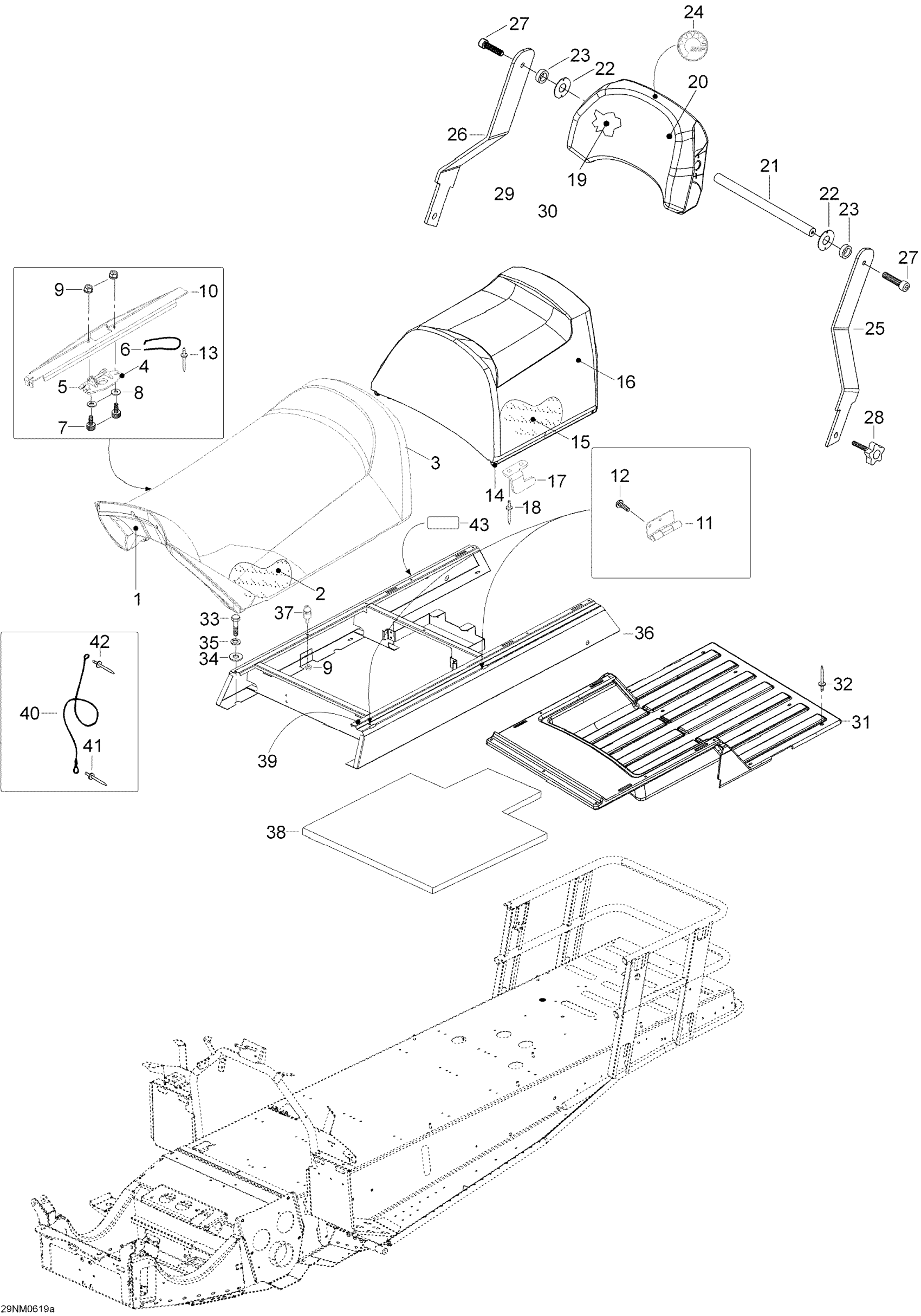

Ski-Doo Expedition V-1000, 2006 09- Seat 1 Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Foam. Front

605251389

Unavailable

3

Cover, Front

605251422

Unavailable

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Hinge

605351798

$42.99

12

Screw 4,2 X 16

M40890

Unavailable

13

Rivet

M36088

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

Foam, Rear

605251391

Unavailable

16

Cover

605251425

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$1.04

19

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

20

COVER - Call your local BRP dealership

605353881

Unavailable

21

Upper Backrest Axle

510004377

$44.99

22

Washer

510004379

$10.01

23

Rubber Shim

510004378

$10.99

24

BRP Logo, Vinyl

219902477

Unavailable

25

LH ARM - Call your local BRP dealership

605353779

Unavailable

26

RH ARM - Call your local BRP dealership

605353963

Unavailable

27

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

28

Handle M8 X 35 | Model-T3

510003533

$44.49

29

Washer

M20031

Unavailable

30

O-Ring

414484400

$7.51

31

COVER - Call your local BRP dealership

605151397

Unavailable

32

Black, Rivet

M36036

$1.69

33

Hex. Screw M6 X 16

207161644

$0.74

34

Flat Washer 6 mm

234062410

$0.77

35

Lock Washer M6, Black

234161471

$0.53

36

SEAT BOX - Call your local BRP dealership

605251807

Unavailable

37

LOCK PIN - Call your local BRP dealership

605452035

$24.99

38

FOAM - Call your local BRP dealership

605352460

Unavailable

39

Sealing Strip

M28413

Unavailable

40

Seat Retainer Cable

293750070

$12.99

41

Black Rivet

36037

$1.48

42

Rivet

M36489

Unavailable

43

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable
