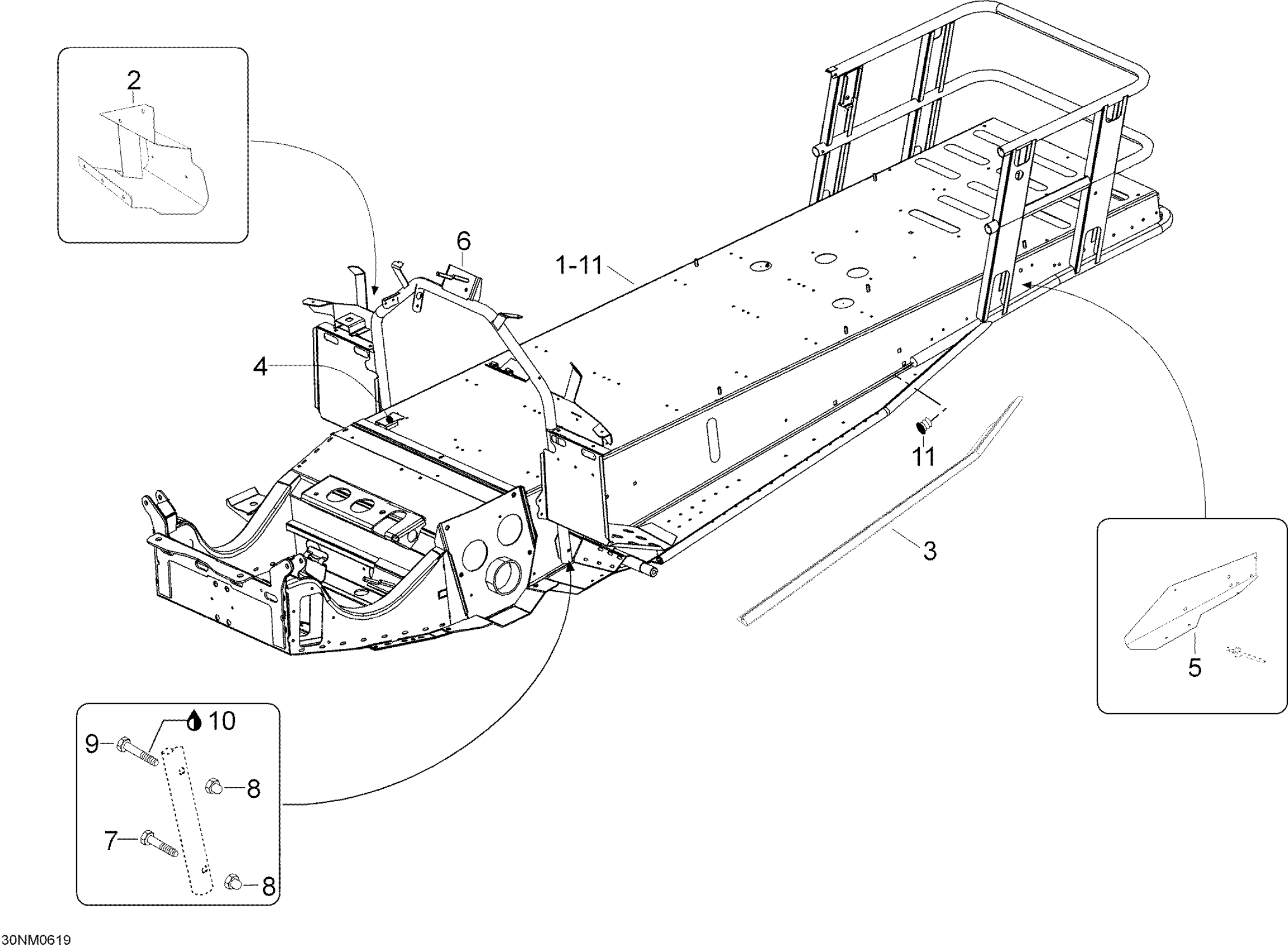

Ski-Doo Expedition V-1000, 2006 Frame Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 to 11

605154009

Unavailable

2

RH Toe Rest

605350839

Unavailable

2

LH TOE REST - Call your local BRP dealership

605350840

Unavailable

3

LH REINFORCEMENT - Call your local BRP dealership

605250773

Unavailable

3

RH REINFORCEMENT - Call your local BRP dealership

605250774

Unavailable

4

BRACKET - Call your local BRP dealership

605351505

Unavailable

5

LH CONER SUPPORT - Call your local BRP dealership

605350845

Unavailable

5

RH Coner Support

605350846

Unavailable

6

Steering Support

605152348

Unavailable

7

Hex. Screw M6 X 30

207063044

$1.26

8

Hex. Nut M6

232061414

$0.53

9

Hex. Screw M6 X 40

207064044

$1.48

10

Loctite 243, 10 ml

293800060

$21.49

11

PLUG - Call your local BRP dealership

M28136

Unavailable
