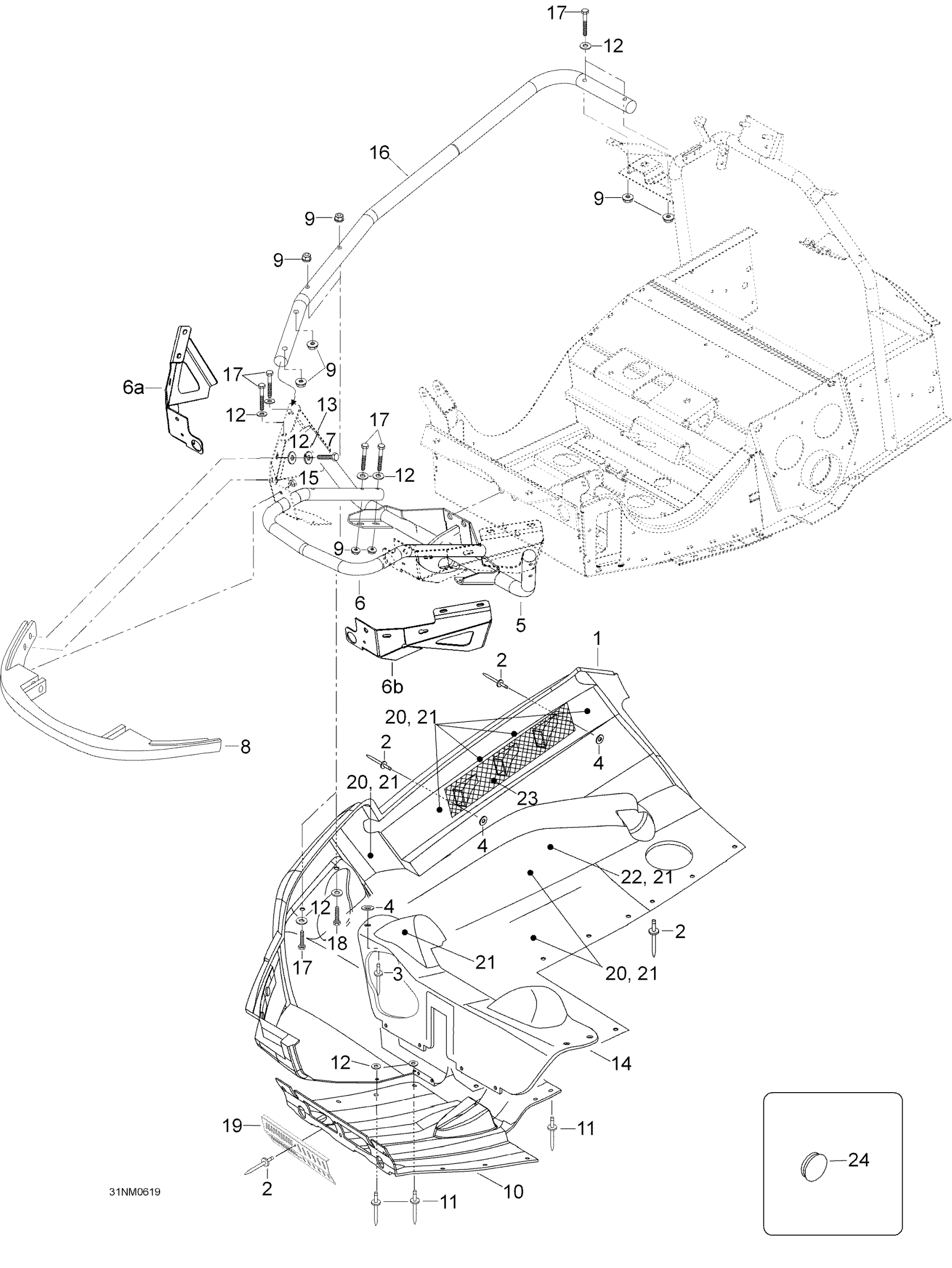

Ski-Doo Expedition V-1000, 2006 09- Bottom Pan Diagram

#

Description
Price

1

RH BOTTOM PAN - Call your local BRP dealership

605152528

Unavailable

1

LH Boyyom Pan

605149805

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.90

4

Washer 5,3 mm

20008

$0.74

5

Support

605253937

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

6a

RH Bumper Support

605250848

Unavailable

6b

LH Bumper Support

605250847

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

BOTTOM PAN, MIDDLE - Call your local BRP dealership

605152620

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Cover

605252529

Unavailable

15

Elastic Stop Nut M6

232561414

$0.55

16

SIDE BUMPER - Call your local BRP dealership

605152371

Unavailable

17

Hex. Screw M6 X 40

207064044

$1.48

18

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

19

Grille

605252587

Unavailable

20

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

21

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

22

L.h Acoustic Foam

605351367

Unavailable

23

GRILL - Call your local BRP dealership

605352541

Unavailable

24

Bottom Pan Cap

570277300

Unavailable
