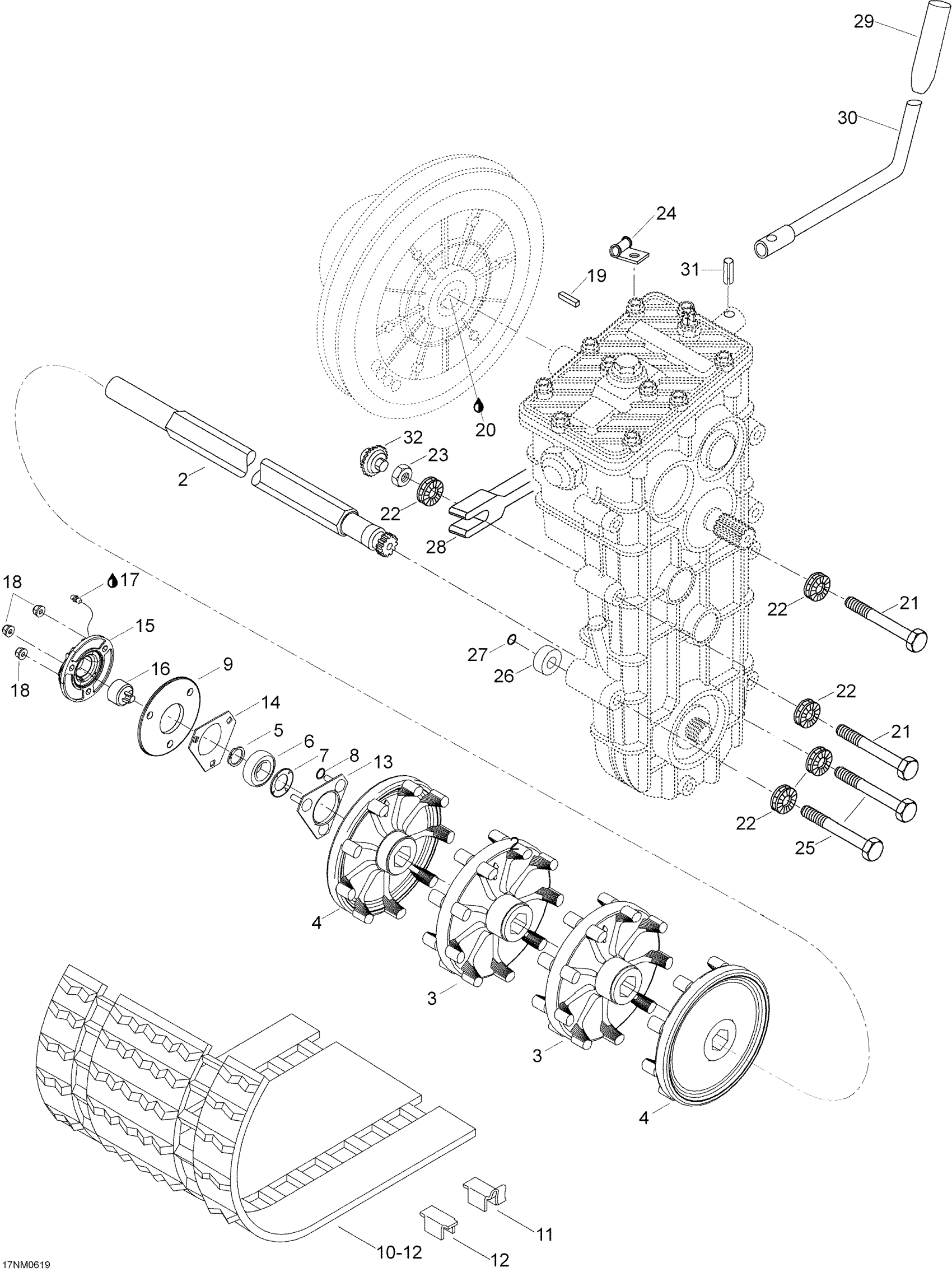

Ski-Doo Expedition V-1000, 2006 05- Drive System Diagram

#

Description
Price

1

Drive Axle Ass'y | Includes 1 to 3

605250539

Unavailable

2

DRIVE AXLE - Call your local BRP dealership

605249455

Unavailable

3

SPROCKET - Call your local BRP dealership

414931800

Unavailable

4

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

O-Ring

414484400

$7.51

9

Washer

M5446641

Unavailable

10

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

11

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

12

CLEAT - Call your local BRP dealership

M5318322

Unavailable

13

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

14

FLANGE - Call your local BRP dealership

501025000

Unavailable

15

Flange, Speedo

504152173

$76.49

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

22

Lock Washer

M20072

Unavailable

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

Clamp

605453927

Unavailable

25

Hex. Screw M8 X 110

M40291

Unavailable

26

SPACER - Call your local BRP dealership

605450155

Unavailable

27

O-RING - Call your local BRP dealership

506151140

Unavailable

28

CONNECTING BAR - Call your local BRP dealership

605351366

Unavailable

29

Shift button This part replaces M28247.

28247

$30.49

30

SHIFT HANDLE - Call your local BRP dealership

605350153

Unavailable

31

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

32

TOOLS - Call your local BRP dealership

605454017

Unavailable
