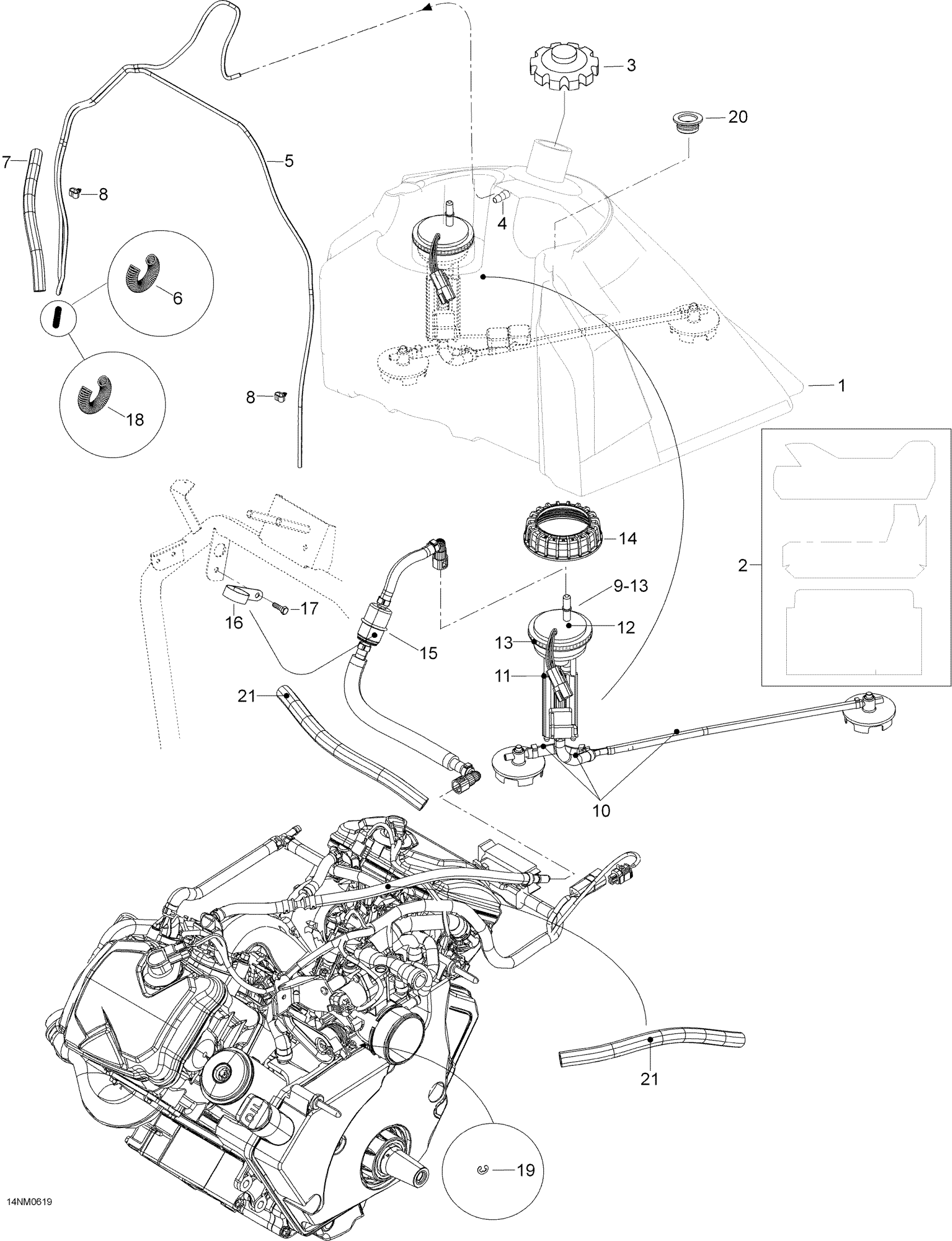

Ski-Doo Expedition V-1000, 2006 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

605153637

Unavailable

2

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

3

Fuel Tank Cap

513033025

$24.49

4

NIPPLE - Call your local BRP dealership

404127600

Unavailable

5

HOSE - Call your local BRP dealership

M39035

Unavailable

6

SPRING - Call your local BRP dealership

M25006

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

9

FUEL PUMP ASS'Y - Call your local BRP dealership | Includes 6 to 9

605351840

Unavailable

10

Fuel hose kit - Call your local BRP dealership This part replaces M19183.

19183

Unavailable

11

PUMP HOSE KIT - Call your local BRP dealership

861302600

Unavailable

12

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

13

SEAL - Call your local BRP dealership

513033039

Unavailable

14

Nut, Fuel Pump Module

513033040

$29.99

15

Fuel Filter

513033106

Unavailable

16

Open Clamp

513033047

$5.19

17

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

18

SPRING - Call your local BRP dealership

M25003

Unavailable

19

Circlip

414753500

$0.71

20

Grommet

293720058

$11.99

21

Al-tubing

M39065

Unavailable
