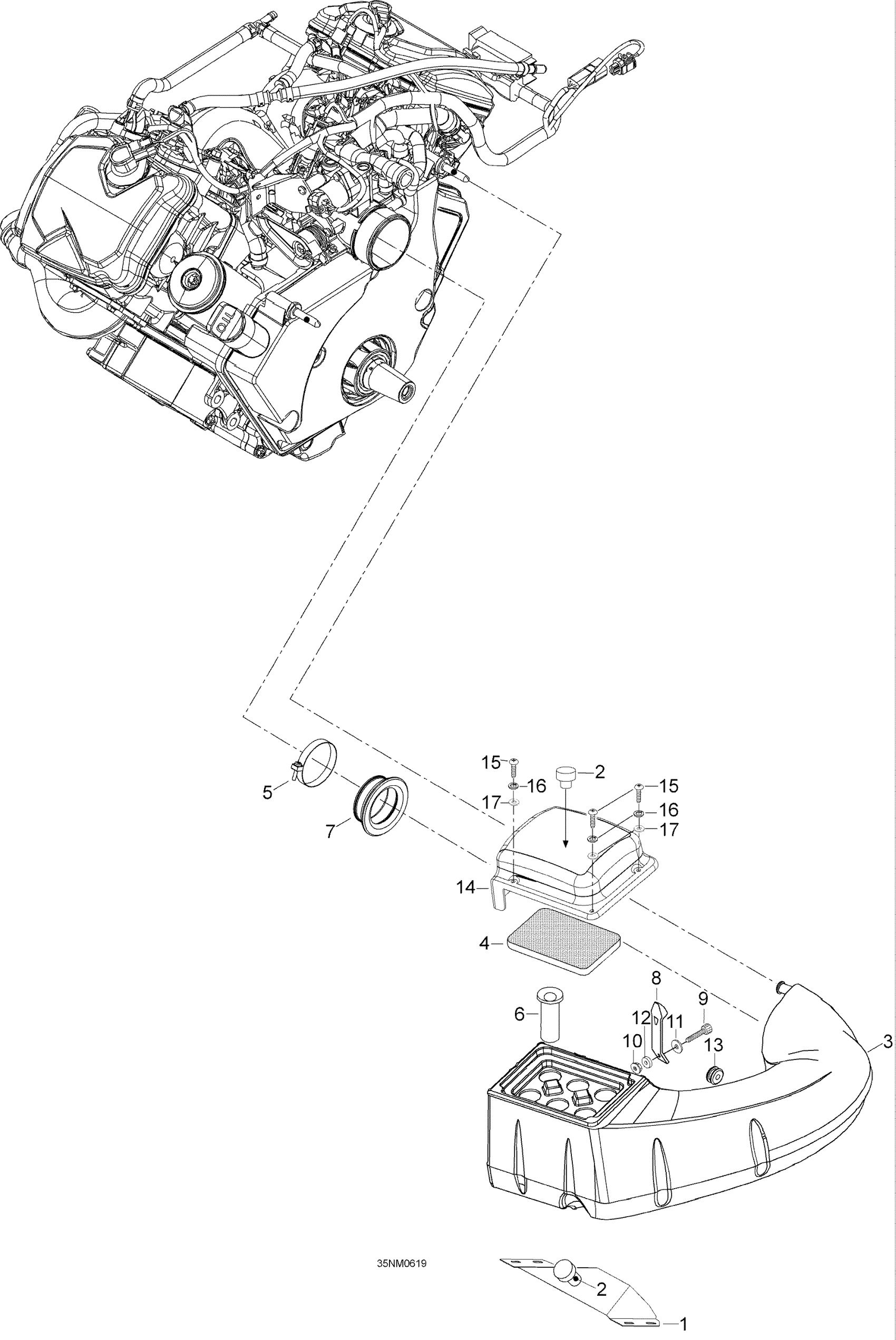

Ski-Doo Expedition V-1000, 2006 02- Air Silencer Diagram

#

Description
Price

1

Air Intake Support

605351370

Unavailable

2

Rubber Bumper

570044700

$13.10

3

Air Intake

605150516

Unavailable

4

Filter

605350180

Unavailable

5

GEMI CLAMP - Call your local BRP dealership

508000382

Unavailable

6

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

7

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

8

Hood Latch

M531955

Unavailable

9

Hex. Screw M6 X 25

207162544

$1.15

10

Elastic Stop Nut M6

232561414

$0.55

11

Washer

M543392

Unavailable

12

Sleeve

M543417

Unavailable

13

GROMMET - Call your local BRP dealership

570065500

Unavailable

14

AIR INTAKE COVER - Call your local BRP dealership

605250565

Unavailable

15

Screw

M40070

Unavailable

16

Lock Washer

M20013

Unavailable

17

Washer 5,3 mm

20008

$0.74
