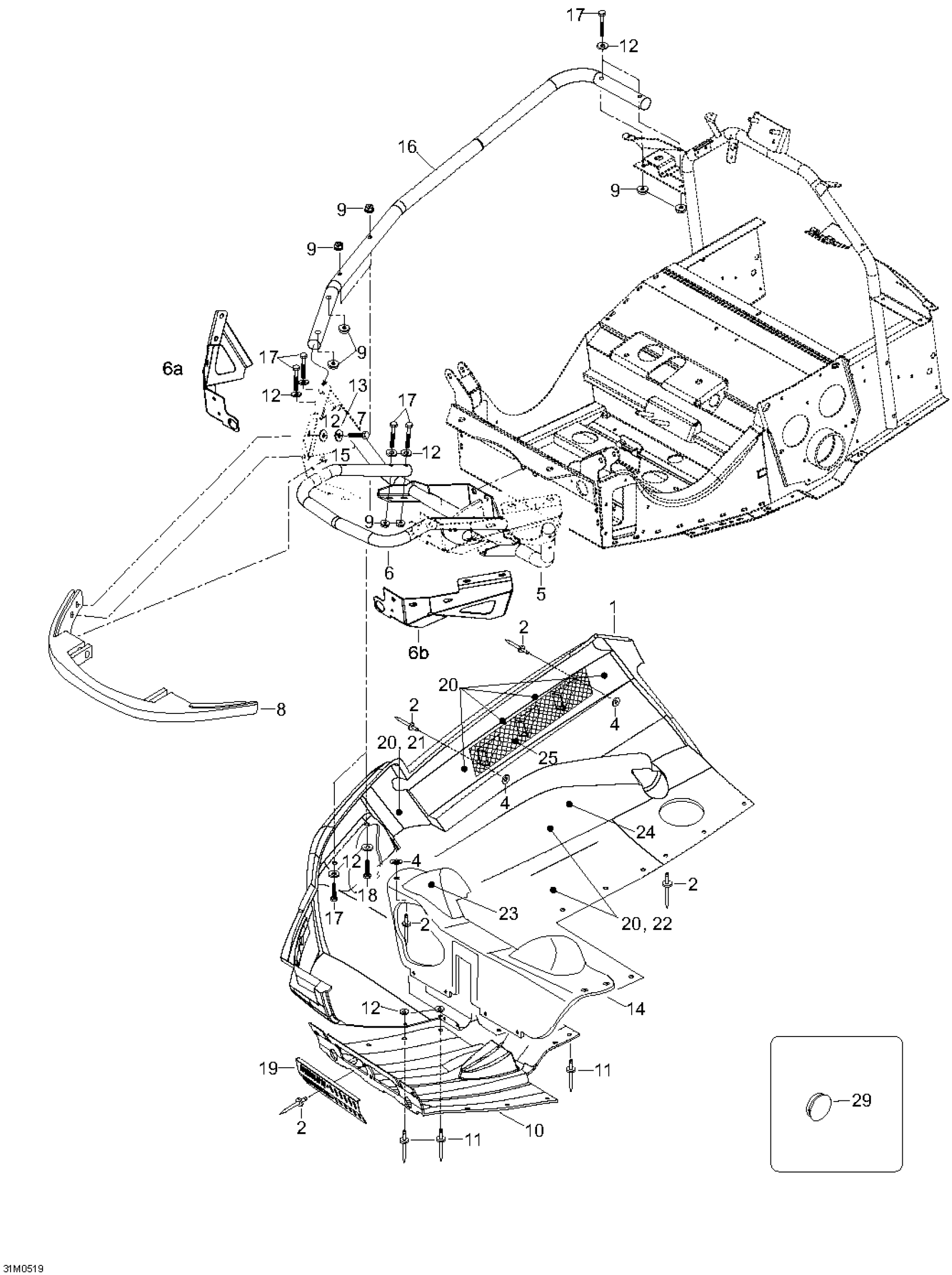

Ski-Doo Expedition V-1000, 2005 09- Bottom Pan Diagram

#

Description
Price

1

RH BOTTOM PAN - Call your local BRP dealership

605152528

Unavailable

1

LH Boyyom Pan

605149805

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.90

4

Washer 5,3 mm

20008

$0.74

5

Bumper Support

605350850

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

6a

RH Bumper Support

605250848

Unavailable

6b

LH Bumper Support

605250847

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

BOTTOM PAN, MIDDLE - Call your local BRP dealership

605152620

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Cover

605252529

Unavailable

15

Elastic Stop Nut M6

232561414

$0.55

16

SIDE BUMPER - Call your local BRP dealership

605152371

Unavailable

17

Hex. Screw M6 X 40

207064044

$1.48

18

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

19

Plate

605252655

Unavailable

20

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

21

Heat Protection Tap

605351212

Unavailable

22

Heat Protection Tap

605351213

Unavailable

23

Heat Protection Tap

605351214

Unavailable

24

L.h Acoustic Foam

605351367

Unavailable

25

GRILL - Call your local BRP dealership

605352541

Unavailable

26

REFLECTIVE SHEET - Call your local BRP dealership

605451560

Unavailable

27

HEAT PROTECTOR - Call your local BRP dealership

605451561

Unavailable

28

Heat Protector

605451562

Unavailable

29

Bottom Pan Cap

570277300

Unavailable
