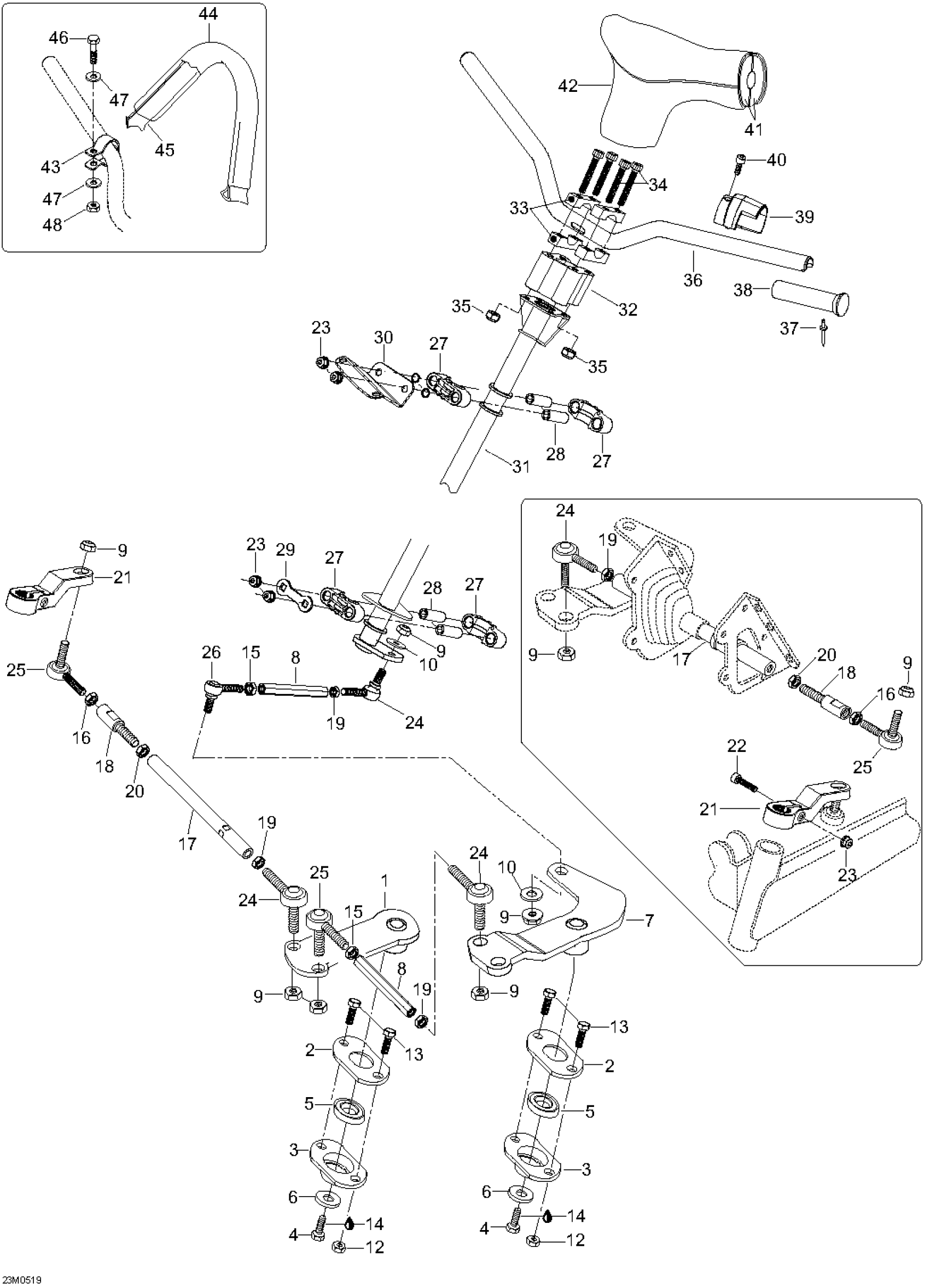

Ski-Doo Expedition V-1000, 2005 07- Steering System Diagram

#

Description
Price

1

RH LEVER - Call your local BRP dealership

605352300

Unavailable

2

Cover

M5345380

Unavailable

3

Bearing Support

605350644

$40.99

4

Hex. Screw

M40337

Unavailable

5

Ball Bearing

293350115

$12.11

6

WASHER - Call your local BRP dealership

M5446279

Unavailable

7

LH LEVER - Call your local BRP dealership

605352299

Unavailable

8

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

9

Elastic Flange Nut M10

232501416

$1.48

10

WASHER M10 - Call your local BRP dealership

20005

Unavailable

11

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

12

Hex. Elastic Stop Nut M8

232581414

$0.56

13

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

RH NUT - Call your local BRP dealership

M33019

Unavailable

16

RH Threaded Hex. Jam Nut M10

732610010

$0.74

17

ROD_LINK - Call your local BRP dealership

605450794

Unavailable

18

ADJUSTER - Call your local BRP dealership

605450793

$38.99

19

LH NUT - Call your local BRP dealership

M33017

Unavailable

20

LH Threaded Hex. Jam Nut M10

250100016

$0.74

21

Steering Arm

M5348261

Unavailable

22

Allen Screw M8 X 45

M40828

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

25

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

26

BALL JOINT RH - Call your local BRP dealership

605450895

Unavailable

27

Housing Half

506150400

$7.62

28

Housing Bushing

506150500

$7.99

29

Stopper Plate

506150600

$4.39

30

Bracket

605351973

Unavailable

31

MAIN TUBE - Call your local BRP dealership

605150632

Unavailable

32

EXTENSION 90 MM - Call your local BRP dealership

605351275

Unavailable

33

Support Guidon *Support-Steer.

M548448

Unavailable

34

Allen Screw M8 X 130

M40209

Unavailable

35

NUT - Call your local BRP dealership

M33027

Unavailable

36

HANDLE BAR - Call your local BRP dealership

605251368

$92.99

37

Rivet

36005

$2.11

38

Grip | WAKE This part replaces M5340464.

506152483

$12.17

39

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

40

Allen Screw M8 X 20

M40390

Unavailable

41

FOAM, FRONT - Call your local BRP dealership

605252110

Unavailable

41

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

42

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

43

Support Plate

506148200

Unavailable

44

Strap Ass'y | Package XMR

506152115

$44.49

45

Strap Ass'y | Package XMR

506152115

$44.49

46

Hex. Screw M6 X 25

207162544

$1.15

47

Flat Washer 6 mm

234061410

$1.36

48

Elastic Stop Nut M6

232561414

$0.55
