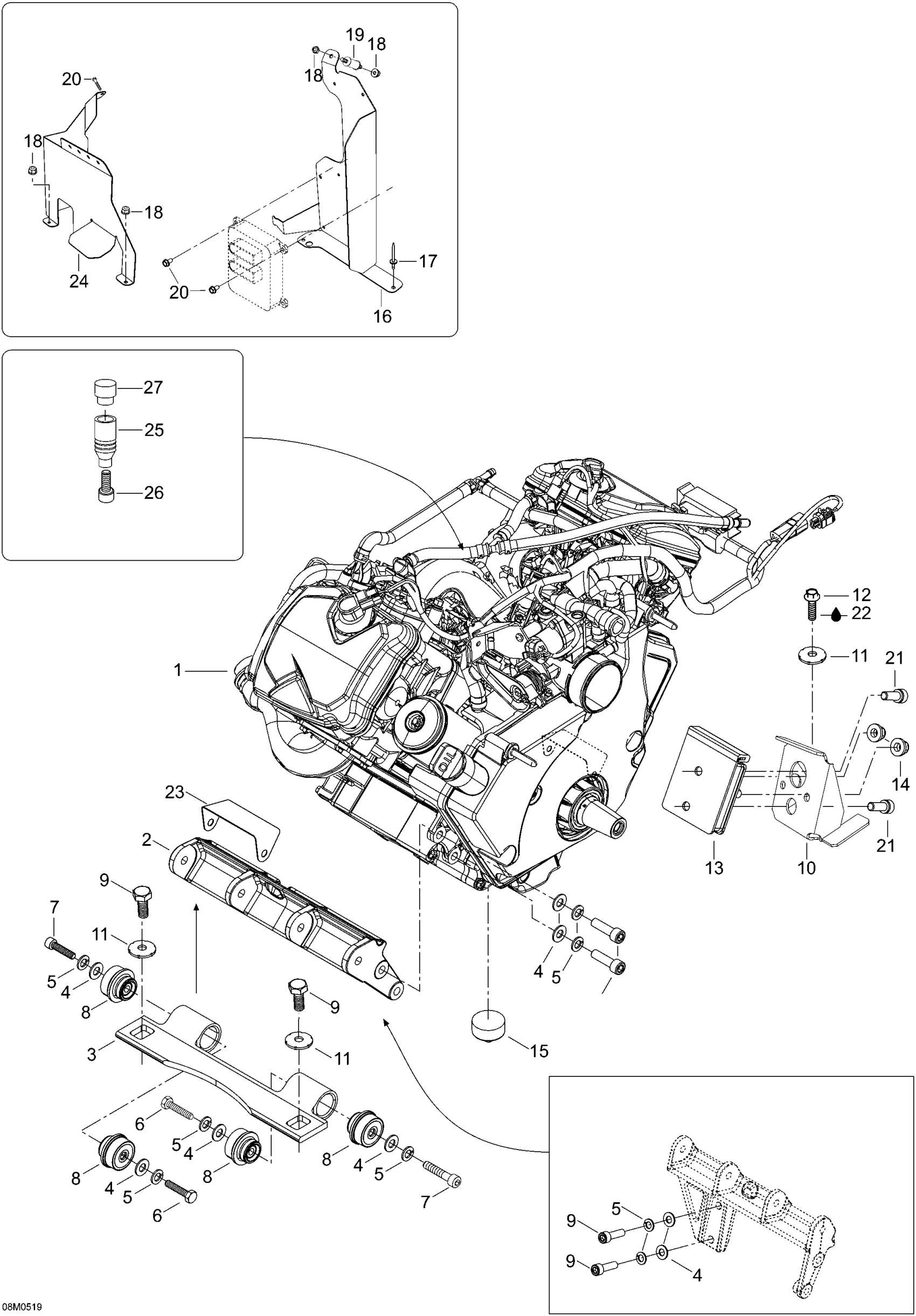

Ski-Doo Expedition V-1000, 2005 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine V-1004

M51004190

Unavailable

2

ENGINE MOUNT. PLATE - Call your local BRP dealership

605250905

Unavailable

3

FRONT ENGINE SUPPORT - Call your local BRP dealership

512059425

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Socket Screw M10 X 35

205003544

$1.69

7

Hex. Cap Screw

M40352

Unavailable

8

Rubber Mount

512059691

$47.99

9

Hex. Screw M10 X 30

207103044

$1.48

10

ENGINE REAR SUPPORT - Call your local BRP dealership

605350835

Unavailable

11

Lock Washer

512056700

$3.17

12

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

13

Rubber Mount

512059316

Unavailable

14

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

15

STOPPER - Call your local BRP dealership

512059710

Unavailable

16

MODULE SUPPORT - Call your local BRP dealership

605250844

Unavailable

17

Rivet

36108

$1.90

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

RUBBER MOUNT - Call your local BRP dealership

M12419

Unavailable

20

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

21

Screw

M40053

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Front Deflector

514053620

Unavailable

24

Temperature Shield

605351330

Unavailable

25

SUPPORT - Call your local BRP dealership

605350745

Unavailable

26

Screw

M40053

Unavailable

27

Rubber Bumper

570044700

$13.10
