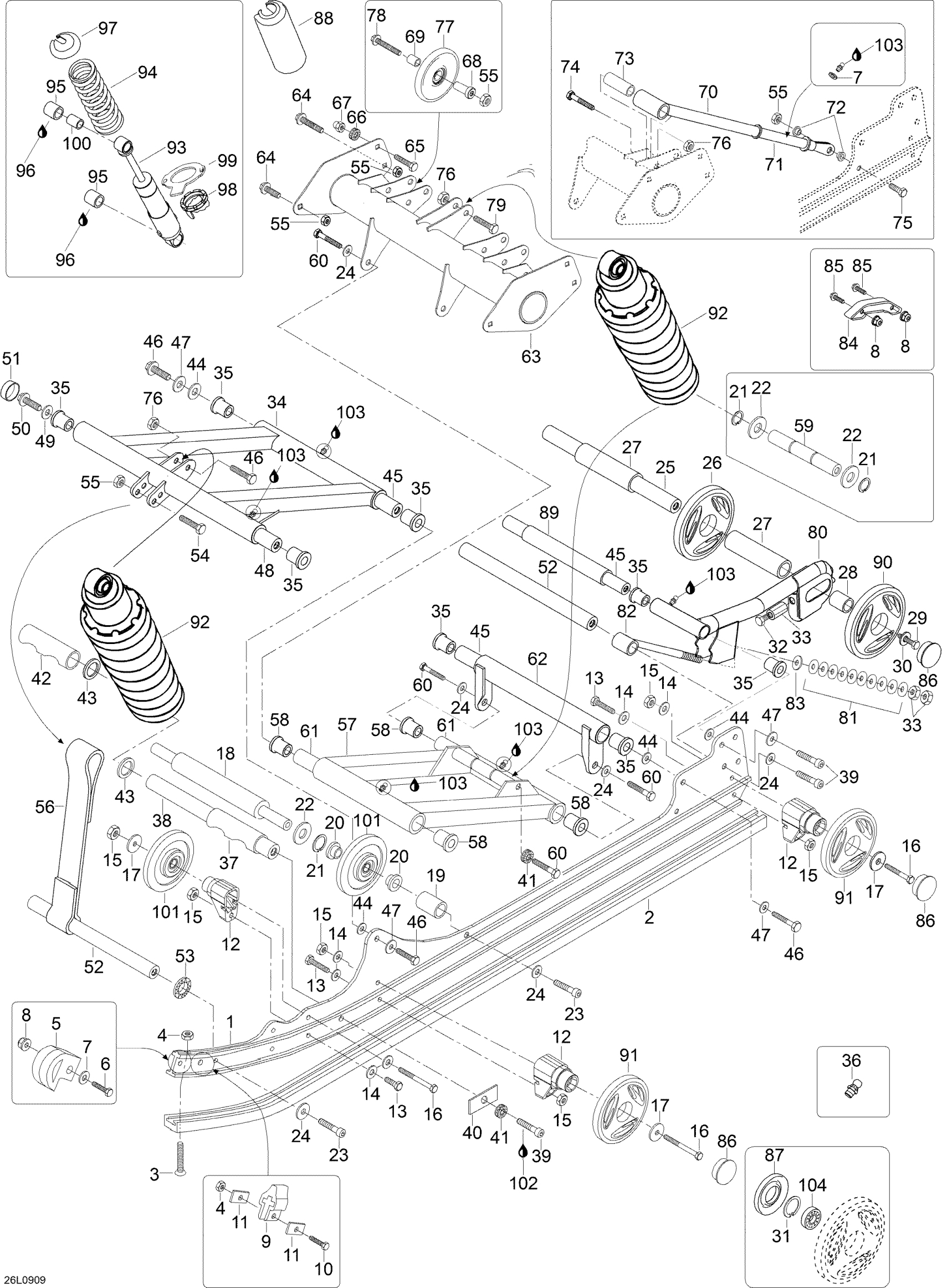

Ski-Doo Expedition TUV V800 4-TEC, 2009 08- Rear Suspension Diagram

RAIL_SUSPENSION MACHINED - Call your local BRP dealership

605253573

Unavailable

Slide Shoe

605355362

$29.49

Screw M6X60

M40059

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Runner Protector

605348954

$19.49

Hex. Screw M6 X 25

207162544

$1.15

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rubber Stopper

M5448216

Unavailable

Hex. Screw M6 X 30

207063044

$1.26

Plate

M548470

Unavailable

SUPPORT - Call your local BRP dealership

605450182

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Flat Washer 8 mm

234081410

$0.83

Hex. Elastic Stop Nut M8

232581414

$0.56

Screw

M40089

Unavailable

Washer

503183100

$3.17

Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950.

5347950

$54.99

Sleeve - Call your local BRP dealership This part replaces M5447951.

5447951

$41.99

Cushion

503189534

$4.76

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

SHIM - Call your local BRP dealership

M31091

Unavailable

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$3.17

Flat Washer 10 mm

234001410

$1.26

SHAFT - Call your local BRP dealership

M5343284

Unavailable

Thin Wheel 165

503189478

$51.99

Sleeve This part replaces M5444096.

5444096

$28.99

Sleeve L=29

M5444098

Unavailable

Hex. Screw With Nylon Patch

M40050

Unavailable

Washer

503183300

$5.82

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

Spacer

605633002

$1.48

Front arm - Call your local BRP dealership This part replaces M5147672.

5147672

Unavailable

Cushion This part replaces M31024.

31024

$13.75

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

$11.99

Limiter - Call your local BRP dealership This part replaces M5347718.

5347718

Unavailable

Shaft This part replaces M5347726.

5347726

$83.99

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$3.17

Support plate This part replaces M5447940.

5447940

$12.65

Lock Washer D10

20068

$2.00

SLEEVE - Call your local BRP dealership

M5346649

Unavailable

Shim Ring This part replaces M31013.

31013

$7.51

Shim This part replaces M20116.

20116

$2.11

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$68.99

Hex. Screw M10 X 45

207004544

$1.69

Lock Washer

512056700

$3.17

Upper Shaft This part replaces 605348606.

5347719

$80.49

Conical Spring Washer

M20090

Unavailable

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

Cap

M5448025

Unavailable

Shaft This part replaces M5347717.

5347717

$45.99

Washer

M4181158

Unavailable

Hex. Screw M8 X 45

207084544

$1.48

Hex. Elastic Stop Nut M8

232581414

$0.56

STOPPER STRAP - Call your local BRP dealership This part replaces M5447919.

5447919

$41.99

Rear Arm Weld Light

605349313

Unavailable

Flange Bearing (Cushion) This part replaces M31027.

31027

$24.99

REARSHOCK SHAFT - Call your local BRP dealership

605451897

$75.99

Hex. Screw M10 X 40

207004044

$4.76

SHAFT - Call your local BRP dealership This part replaces M5346865.

5346865

$54.99

Welded Rear Arm

M5347668

Unavailable

UPPER ARM - Call your local BRP dealership

605249988

Unavailable

Carriage Bolt, M8 X 20

207782044

$1.90

Screw

M40056

Unavailable

Lock Washer

M20072

Unavailable

Nut

M33044

Unavailable

FLANGED SLEEVE - Call your local BRP dealership

605450372

Unavailable

SLEEVE - Call your local BRP dealership

605450373

$23.49

Poker tube This part replaces M5347851.

5347851

$53.99

Axe *Shaft

M5347852

Unavailable

Insert

M5447853

Unavailable

Bearing sleeve - Call your local BRP dealership This part replaces M5447848.

5447848

Unavailable

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Idler Wheel

M46027

Unavailable

Hex. Screw M8 X 70

M40088

Unavailable

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

RH Extension

605251782

$126.99

LH Extension

605251781

$126.99

Cup Spring This part replaces M25004.

25004

$3.69

Eye bolt adjuster This part replaces M5447373.

5447373

$38.99

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

Sliding Pad

503192731

$38.99

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

Wheel Cap

570063600

$3.49

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

Shock Protector

M5346754

Unavailable

Sleeve

605448429

$72.99

Wheel 165 mm

503190856

$51.99

WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership

503190796

Unavailable

CENTER SHOCK - Call your local BRP dealership

605350536

Unavailable

Center Shock

M23204

Unavailable

SPRING, FRONT ARM - Call your local BRP dealership This part replaces M25065.

25065

Unavailable

Cushion This part replaces M31094.

31094

$14.22

Loctite 641, 50 ml

M320006

Unavailable

Spring Seat

230076

$9.69

CAM - Call your local BRP dealership

M230078

Unavailable

Rear Shock Assy

605350647

Unavailable

Shock, rear arm This part replaces M23152.

23152

$248.99

Rear Spring

M230079

Unavailable

Cushion This part replaces M31094.

31094

$14.22

Loctite 641, 50 ml

M320006

Unavailable

Spring Seat

230076

$9.69

CAM - Call your local BRP dealership

M230078

Unavailable

ARM ADJUSTING ASS'Y - Call your local BRP dealership

605348748

$35.99

Bushing This part replaces M5446652.

5446652

$10.13

Wheel 139 mm Ass'y

503190798

$33.99

Loctite 243, 10 ml

293800060

$21.49

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

Ball Bearing

293350115

$12.11
