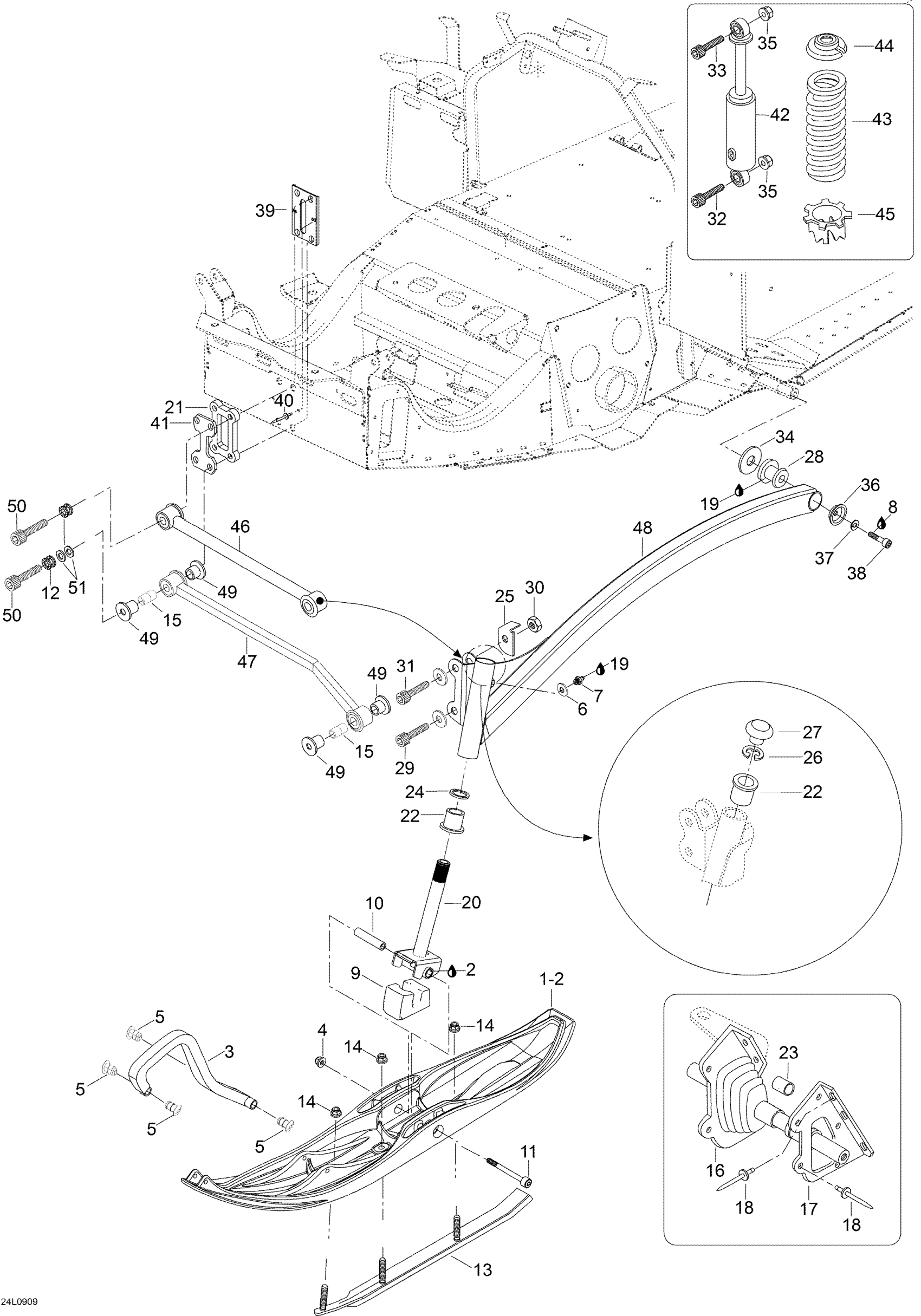

Ski-Doo Expedition TUV V800 4-TEC, 2009 Front Suspension And Ski Diagram

#

Description
Price

1

Ski | Europe models

505073034

$226.09

2

Bushing | Europe models

605348392

$52.21

3

Black, Handle

505070963

$34.30

4

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

5

Retainer 17mm long

505071812

$4.30

6

Flat Washer 6 mm

234061410

$1.19

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

10

Spacer

506133300

$19.37

11

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.15

12

Lock Washer

M20074

Unavailable

13

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

14

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

13

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

13

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

15

BUSHING - Call your local BRP dealership

605450024

$18.63

16

RH Tie Rod Cap

570024800

Unavailable

16

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

17

PLATE COVER RH - Call your local BRP dealership

605355206

Unavailable

17

PLATE COVER LH - Call your local BRP dealership

605355205

Unavailable

18

Rivet This part replaces M36009.

36009

$1.03

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

SKI LEG - Call your local BRP dealership

505072001

Unavailable

21

Spacer 17.5

605350191

Unavailable

22

Cushion

505070003

$7.18

23

BUSHING - Call your local BRP dealership

572036500

Unavailable

24

WASHER - Call your local BRP dealership

505070004

Unavailable

25

RH Plate Locking

605448861

Unavailable

25

LH Plate Locking

605448862

Unavailable

26

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

27

Cap

572091300

$8.70

28

DAMPER - Call your local BRP dealership

570062200

Unavailable

29

Screw Allen M12 X 55

M40371

Unavailable

30

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

31

Allen Screw M12 X 60

M40306

Unavailable

32

Socket Head Screw. M10 X 50

M40136

Unavailable

33

Screw M10 X 55

M40837

Unavailable

34

WASHER - Call your local BRP dealership

503146700

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.63

36

Cup | Package Hunter

705007171

$6.00

37

Lock Washer 8 mm

234181401

$0.87

38

Screw Allen M8 X 20

M40810

Unavailable

39

PLATE - Call your local BRP dealership

605353972

Unavailable

40

Rivet

36005

$1.96

41

MIDDLE PLATE - Call your local BRP dealership

605450900

Unavailable

42

Shock This part replaces M23183.

23183

$231.31

43

White Spring

M250143

Unavailable

44

Spring Seat

230076

$8.13

45

CAM - Call your local BRP dealership

M230078

Unavailable

46

UPPER ARM ASSY - Call your local BRP dealership

605350022

$106.69

47

LOWER ARM - Call your local BRP dealership

605252224

$132.06

48

SWING ARM WELD LH B - Call your local BRP dealership

605251767

$256.69

48

Swing Arm Weld RH

605251768

$256.69

49

CUSHION - Call your local BRP dealership

506149100

Unavailable

50

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

51

WASHER - Call your local BRP dealership

M20027

Unavailable
