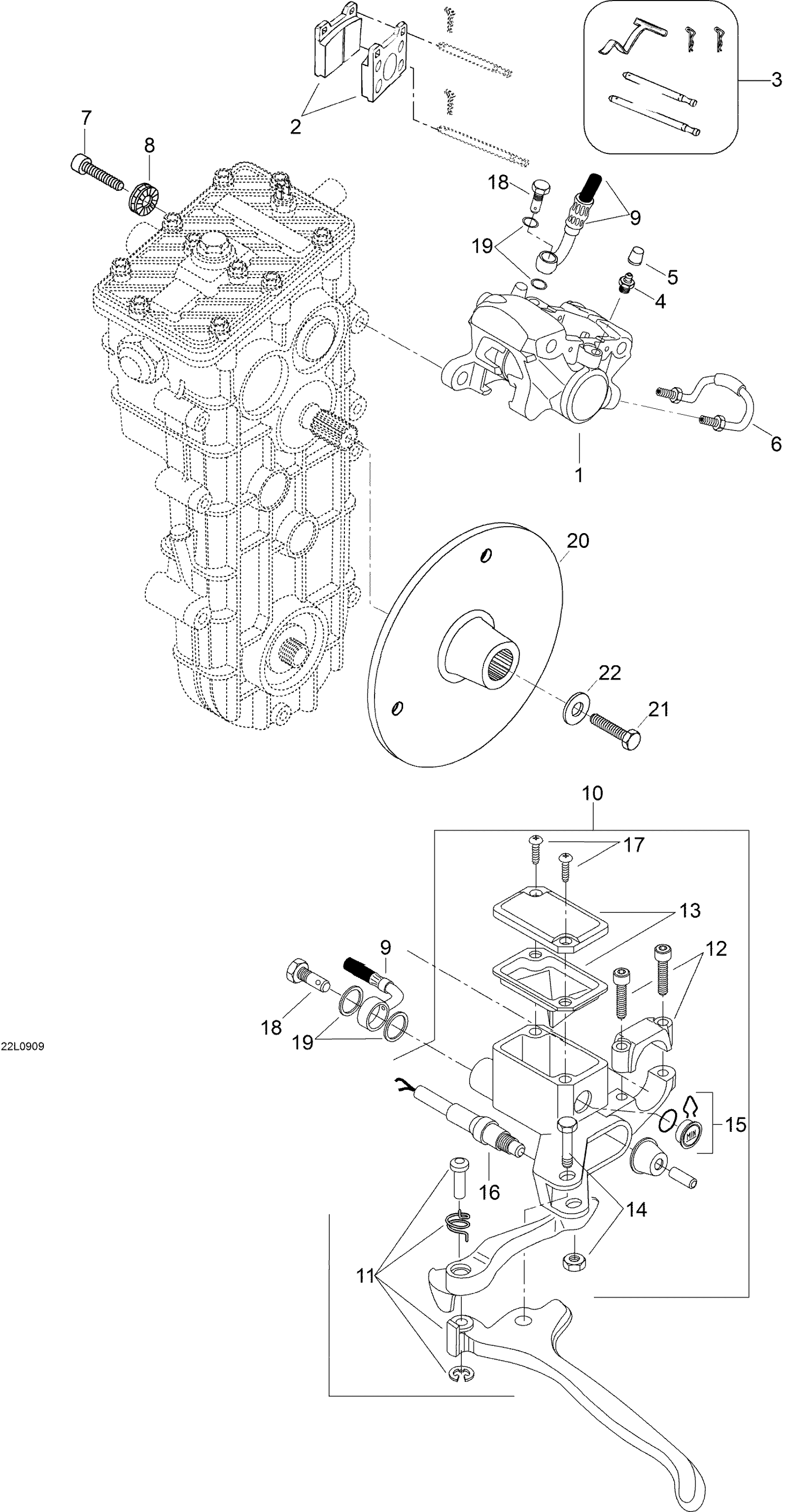

Ski-Doo Expedition TUV V800 4-TEC, 2009 06- Hydraulic Brakes Diagram

#

Description
Price

1

Caliper | Includes 1 to 6

507032409

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

8

Lock Washer D10

20068

$2.00

9

HOSE - Call your local BRP dealership

507032237

Unavailable

10

MASTER CYLINDER ASS'Y - Call your local BRP dealership | Includes 10 to 17

507032408

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp And Screw Kit

507032477

$23.99

13

Cap

415029900

$41.49

14

Pin Ass'y

415030000

$19.99

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

Microswitch

507032366

$98.99

17

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Brake Disc

605353250

$206.49

21

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

22

Washer

M546336

Unavailable
