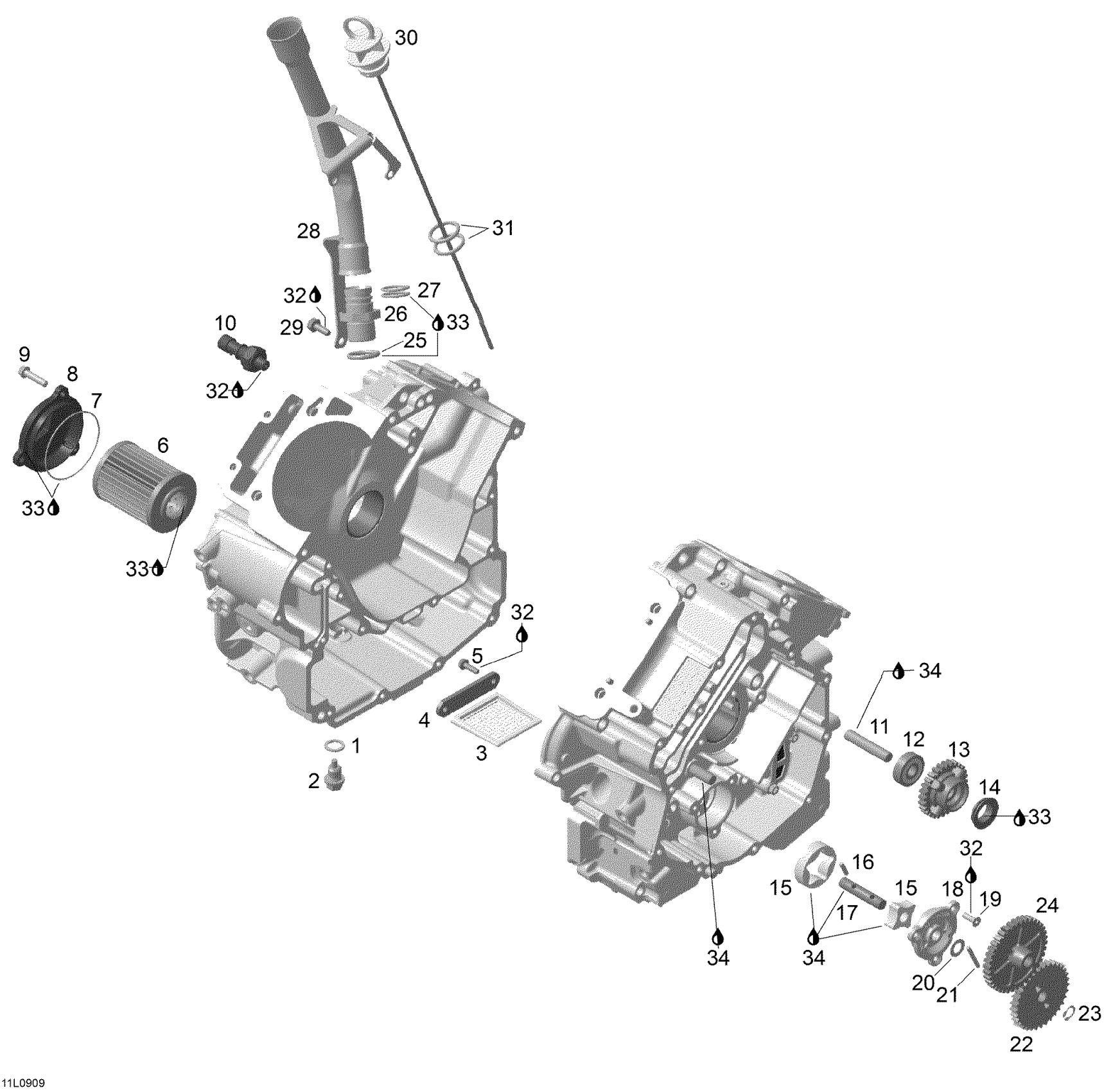

Ski-Doo Expedition TUV V800 4-TEC, 2009 Oil System Diagram

#

Description
Price

1

Copper Washer

420250640

$0.93

2

Magnetic Drain Plug M12

420241787

$16.39

3

Oil Sieve

420256322

$26.09

4

Cover Sieve

420210661

$13.18

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$12.79

7

O-Ring

420230923

$2.97

8

Oil Filter cover

420612135

$10.78

9

Torx Flange Screw M6 X 25

420641238

$3.07

10

Oil Pressure Switch

420856537

$41.76

—

IDLE GEAR, 28 TEETH - Call your local BRP dealership | Includes 13 to 16

420434305

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

V-Ring 20S FPM Blow By Valve

420630125

$10.76

15

Oil Pump Rotor

420256348

$70.87

16

Needle Pin

420232731

$1.79

17

Oil Pump Shaft

420237059

$27.58

18

Oil Pump Cover

420210646

$45.49

19

Torx Head Screw M5 X 16

420640823

$1.79

20

Thrust Washer

420827590

$3.75

21

Needle Pin

420232431

$4.21

22

Oil Pump Gear, 33 Teeth

420434320

$13.09

23

Snap Ring

420245330

$1.64

24

Idle Gear, 38 Teeth

420434300

$13.09

25

O-Ring

420631640

$2.00

26

Adaptor

420856610

$17.13

27

O-Ring

420430373

$3.01

28

OIL TUBE - Call your local BRP dealership

420856920

Unavailable

29

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

30

OIL LEVER GAUGE ASS'Y - Call your local BRP dealership | Includes 30 to 31

420956936

Unavailable

31

O-Ring

420631640

$2.00

32

Loctite 243, 10 ml

293800060

$21.49

33

Grease, Super Lube

293550030

$28.33

34

Synth Oil 4T 12x1

293600054

Unavailable
