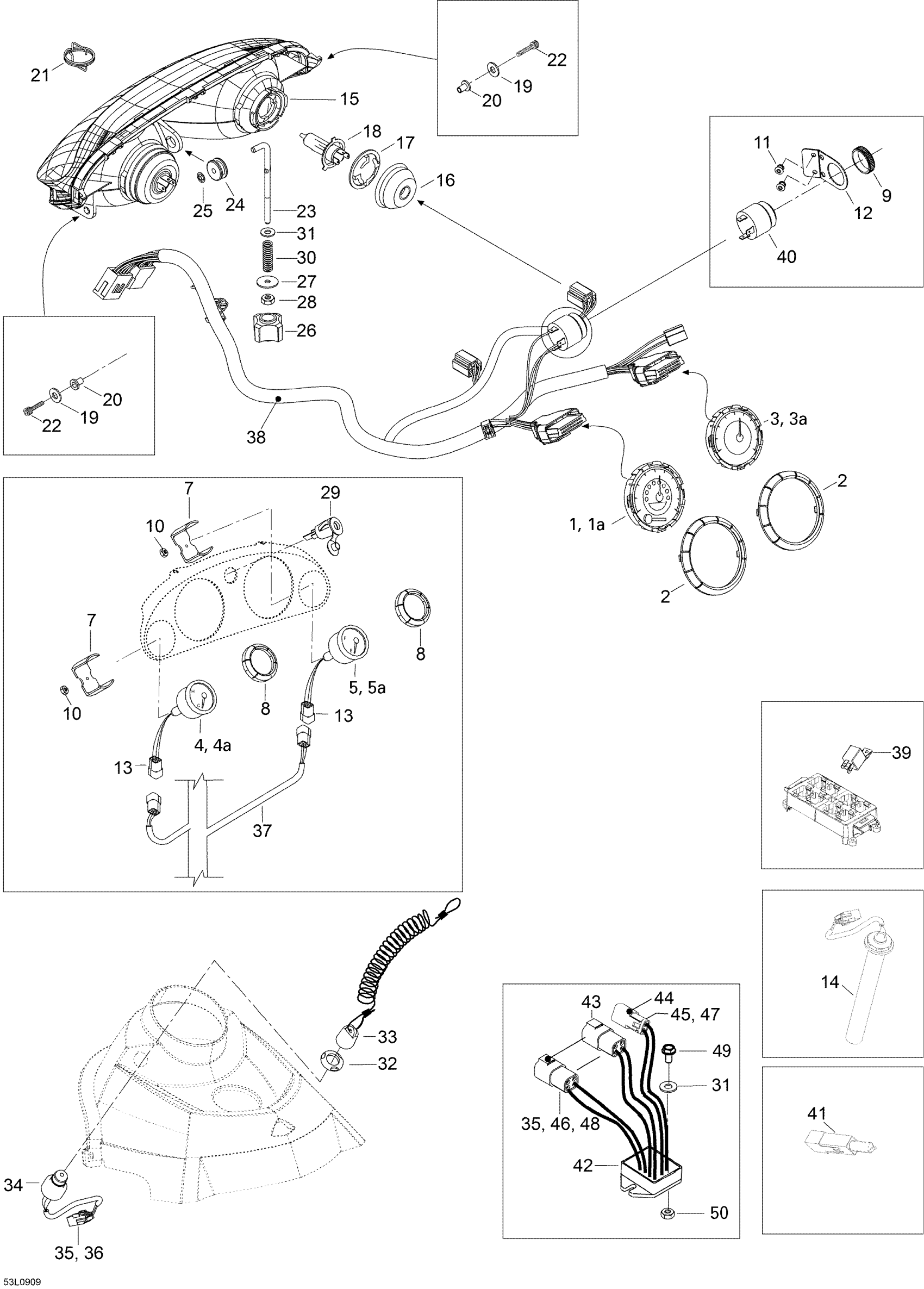

Ski-Doo Expedition TUV V800, 2008 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

LENS - Call your local BRP dealership

415129319

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

3a

Lens

415129320

$22.36

4

Temperature Gauge

515176214

Unavailable

4a

GAUGE BULB - Call your local BRP dealership

415128974

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

5a

GAUGE BULB - Call your local BRP dealership

415128974

Unavailable

7

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

8

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

9

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

10

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

11

Rivet

36005

$1.96

12

Holder

M5447941

Unavailable

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

FUEL SENSOR - Call your local BRP dealership

605354909

Unavailable

15

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

17

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

18

COVER - Call your local BRP dealership

515175911

Unavailable

19

Washer 5,3 mm

20008

$0.70

20

NUT M5 - Call your local BRP dealership

250100018

$6.25

21

SPRING - Call your local BRP dealership

M5447238

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$1.97

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

WASHER - Call your local BRP dealership

M20038

Unavailable

28

Elastic Stop Nut M6

232561414

$1.78

29

Power outlet kit (Revo)

605352915

Unavailable

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

$1.19

32

Safety Nut (DESS Switch)

278002963

$3.12

33

DESS

515178284

$79.07

34

DESS Switch

515177249

$102.96

35

Male Terminal

515175232

$1.45

36

Male Housing, 3 Circuits

515175494

$14.90

37

HARNESS ASS'Y - Call your local BRP dealership

605354914

Unavailable

38

HARNESS ASS'Y - Call your local BRP dealership

605355923

Unavailable

39

Relais *Relay This part replaces 410113604.

515177672

$43.25

40

HORN - Call your local BRP dealership

515176035

Unavailable

41

CAPACITOR - Call your local BRP dealership

605355837

Unavailable

42

Voltage Regulator | Includes 32 to 38

515176243

$335.04

43

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

44

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

45

Male Terminal

515175568

$7.25

46

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

47

Male Lock, 2 Circuits

278001672

$2.93

48

Sealing Cap

293000052

$2.93

49

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

50

Elastic Stop Nut M6

232561414

$1.78
