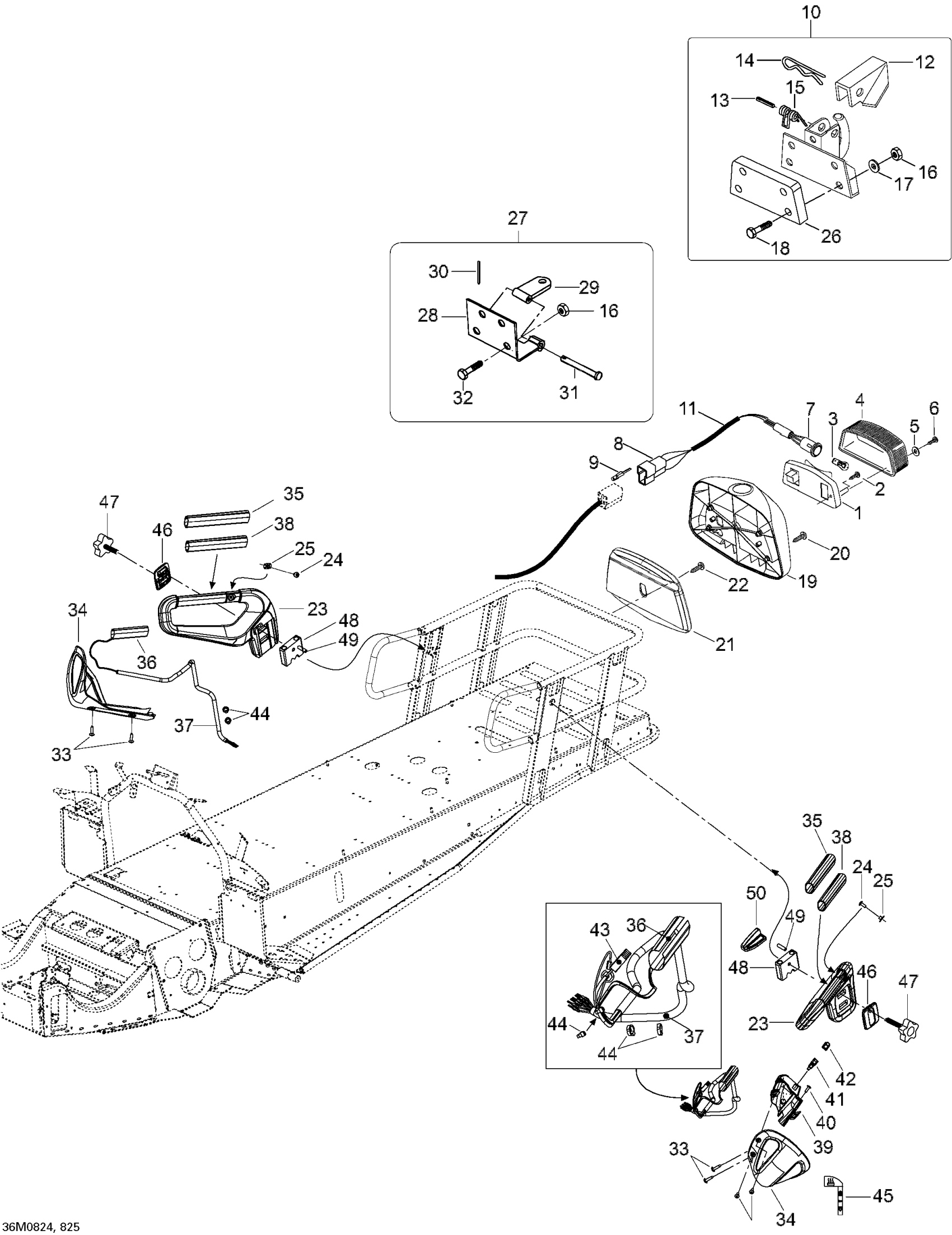

Ski-Doo Expedition TUV V800, 2008 Luggage Rack Diagram

#

Description
Price

1

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

2

Screw 4.8 X 45

M40207

Unavailable

3

Bulb

520000758

$8.60

4

Lens

414513700

$26.09

5

Washer - Call your local BRP dealership

414516400

Unavailable

6

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

7

Adapter

515175852

Unavailable

8

Female Terminal Housing, 1 Circuit

409010400

$7.25

9

Connector AMP 926882-3 - Call your local BRP dealership

605642629

Unavailable

10

HITCH ASS'Y - Call your local BRP dealership

5344156

Unavailable

11

Taillight Harness

605354685

Unavailable

12

HITCH PROTECTOR - Call your local BRP dealership

M5440767

Unavailable

13

Pin

41012

$5.06

14

Hair pin

41029

$4.15

15

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

16

Hex. Elastic Stop Nut M8

232581414

$0.54

17

Flat Washer 8 mm

234081410

$0.79

18

Hex. Screw M8 X 50

207085044

$1.43

19

MOLD TAIL LAMP - Call your local BRP dealership

605251392

Unavailable

20

Screw 4.8 X 25

M40206

Unavailable

21

BASE - Call your local BRP dealership

605251963

Unavailable

22

Screw

M40322

Unavailable

23

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

23

LH Handle

510005862

$117.13

24

Torx Truss Screw M6 X 16

250000721

$1.60

25

Nut Welded, M6

293100003

$7.25

26

SPACER - Call your local BRP dealership

605351510

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

29

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

31

Cotter Pin

41031

$6.07

32

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

33

Screw 25MM

250000961

$2.31

34

RH Deflector

510004415

$25.34

34

LH Deflector

510004416

$25.34

35

Handle Grip

510004449

$10.33

36

Heater

515176393

$57.43

37

Was 515175506 Tubing

219704426

$132.06

38

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

39

Switch Housing

510004566

$11.58

40

Torx Screw K50 X 16

250000720

$1.60

41

Rocker Switch

510004413

$8.31

42

Switch Protector

510004414

$7.15

43

LH Handle Harness

515176241

Unavailable

44

Tie-Rap 180 mm

414115200

$0.10

45

Handle Heater Decal

516002835

$10.04

46

Passenger Handle Trim

510006602

$11.36

47

HANDLE M8 X 35 - Call your local BRP dealership

605640015

Unavailable

48

Handle Support - Call your local BRP dealership

605454565

Unavailable

49

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

50

GRIP - Call your local BRP dealership

510004419

Unavailable
