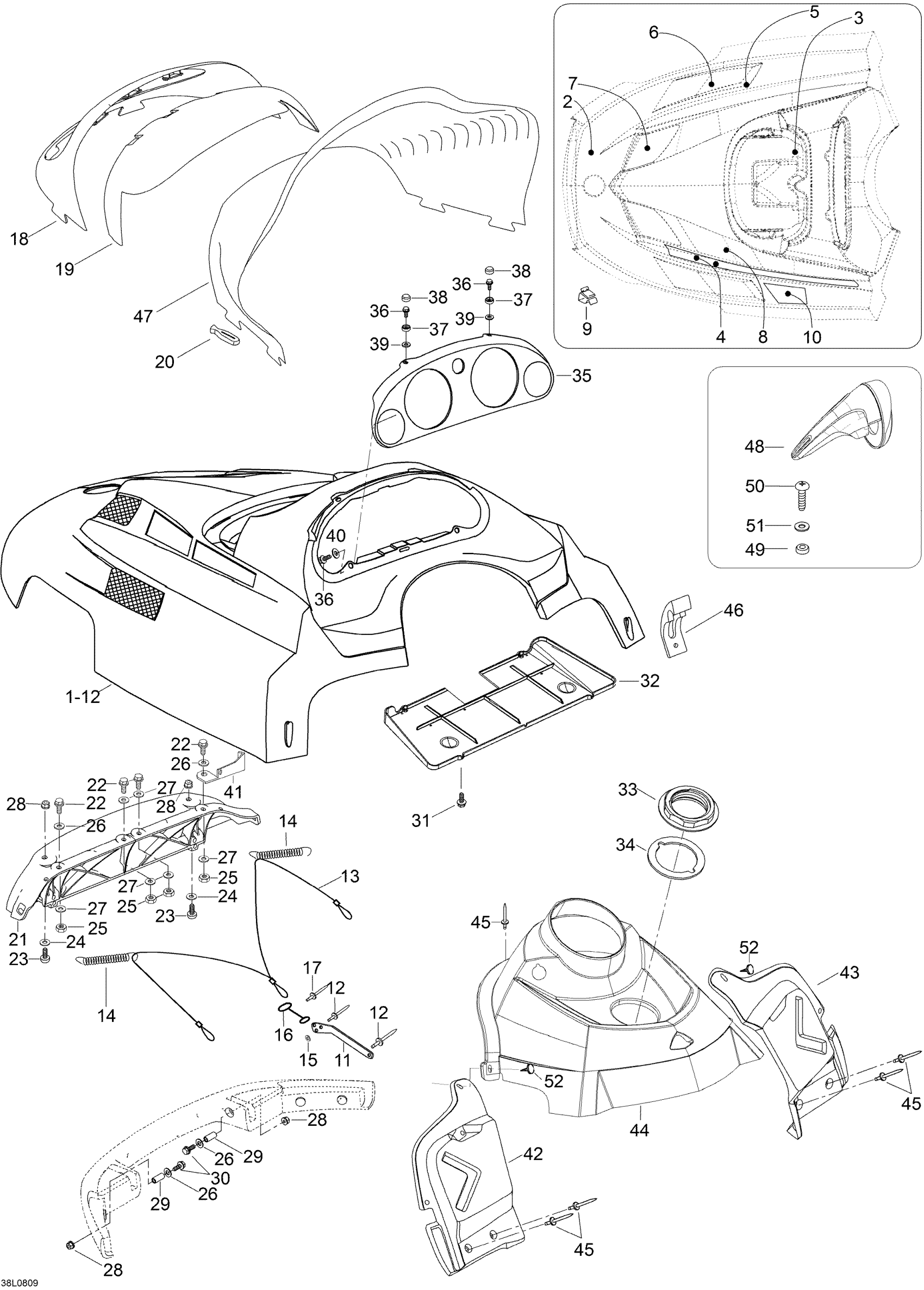

Ski-Doo Expedition TUV V800, 2008 09- Hood Diagram

#

Description
Price

1

Hood Ass'y, Black | Includes 1 to 12

605155276

Unavailable

1

HOOD ASS'Y, CRANBERRY RED - Call your local BRP dealership

605155272

Unavailable

2

HEAT PROTECTOR - Call your local BRP dealership

605350919

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

605350920

Unavailable

4

HEAT SHIELD - Call your local BRP dealership

605350921

Unavailable

5

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Edge Clip

517302785

$0.88

10

HEAT SHIELD - Call your local BRP dealership

605350929

Unavailable

11

BRACKET - Call your local BRP dealership

605452657

Unavailable

12

RIVET - Call your local BRP dealership

M36002

Unavailable

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

$14.99

15

Washer

M20001

Unavailable

16

Cable Keeper

M5442870

Unavailable

17

RIVET - Call your local BRP dealership

M36097

Unavailable

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Windshield Latch

570023800

$4.49

21

Hinge

517302631

$48.99

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

23

Screw M6X20

M40381

Unavailable

24

Washer

20117

$6.39

25

Elastic Stop Nut M6

232561414

$0.55

26

Flat Washer 6 mm

234061410

$1.36

27

Flat Washer 6 mm

234062410

$0.77

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

BUSHING - Call your local BRP dealership

517302179

Unavailable

30

Hex. Screw

M40003

Unavailable

31

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

32

AIR INTAKE PLATE - Call your local BRP dealership

605151831

Unavailable

33

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

34

Gasket

M5447116

Unavailable

35

INDICATOR SUPPORT - Call your local BRP dealership

605355363

Unavailable

36

Screw Plastofast 4x10 - Call your local BRP dealership

M40611

Unavailable

37

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

38

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

39

Washer

20037

$2.11

40

WASHER - Call your local BRP dealership

M20039

Unavailable

41

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

41

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

42

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

43

RH CONSOLE - Call your local BRP dealership

605251385

Unavailable

44

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

45

Black Rivet

36037

$1.48

46

Hood Latch

517302152

$18.49

47

Windshield

605152073

$180.99

48

Mirror Kit

517303955

$53.49

49

Washer M5

250200025

$0.74

50

Torx Screw K50 X 16

250000720

$1.69

51

Rubber Washer 5 mm

250200024

$2.19

52

Black, Dart

414644300

$0.98
