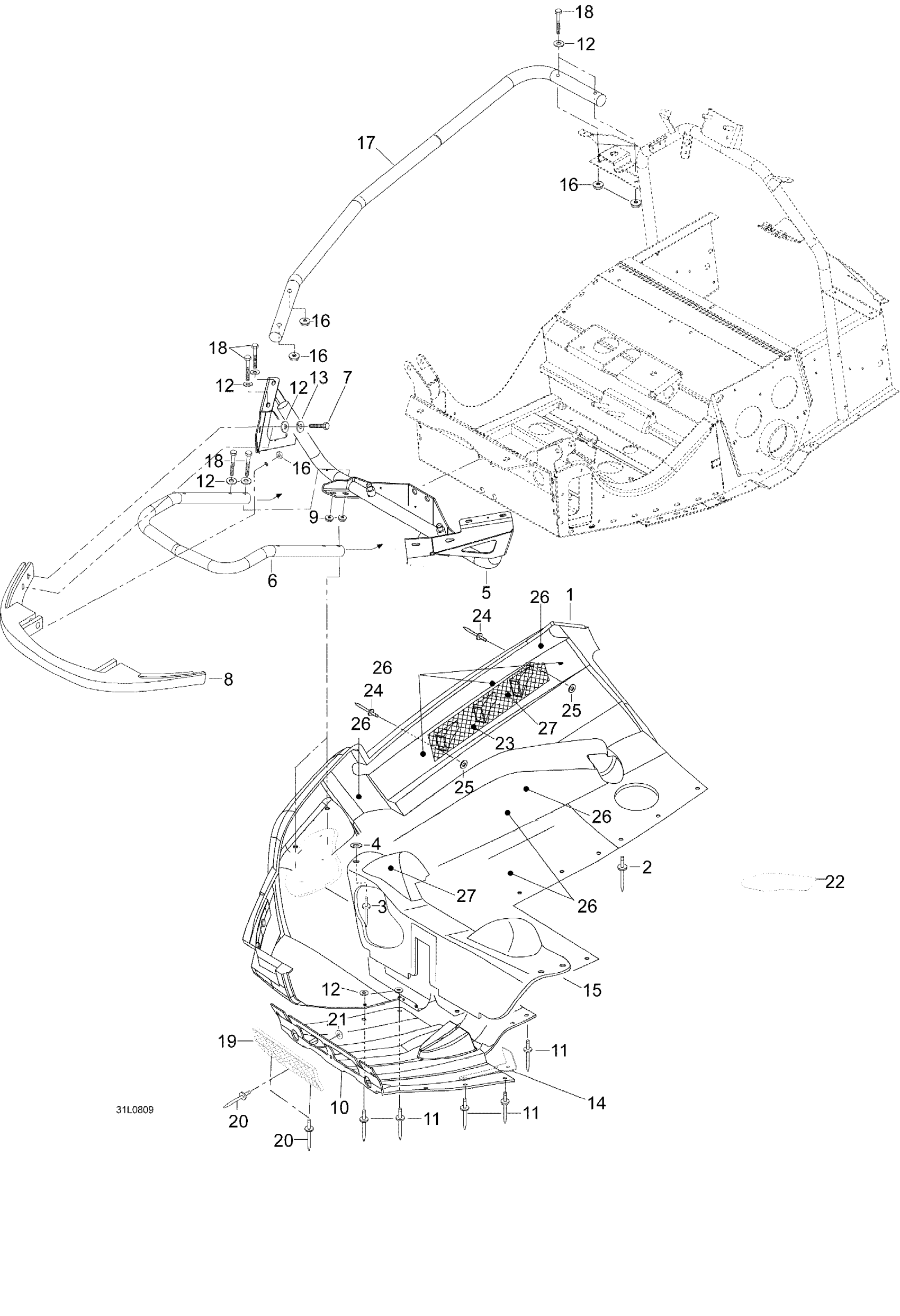

Ski-Doo Expedition TUV V800, 2008 09- Bottom Pan Diagram

#

Description
Price

1

BOTTOM PAN ASS'Y, RH - Call your local BRP dealership

605155340

Unavailable

1

BOTTOM PAN ASS'Y, LH - Call your local BRP dealership

605155679

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.90

4

Washer 5,3 mm

20008

$0.74

5

WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership

605255398

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Central Front Pottom Pan

605154930

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

BOTTOM PAN RIVETING PLATE - Call your local BRP dealership

605355617

Unavailable

15

SHOCK COVER - Call your local BRP dealership

605355606

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

SIDE BUMPER - Call your local BRP dealership

605255395

Unavailable

18

Hex. Screw M6 X 40

207064044

$1.48

19

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

20

Rivet

M36071

Unavailable

21

Washer 5,3 mm

20008

$0.74

22

Bottom Isolation LH

605355681

Unavailable

23

GRILL - Call your local BRP dealership

605351546

Unavailable

24

Black, Rivet

M36036

$1.69

25

Washer 5,3 mm

20008

$0.74

26

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

27

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable
